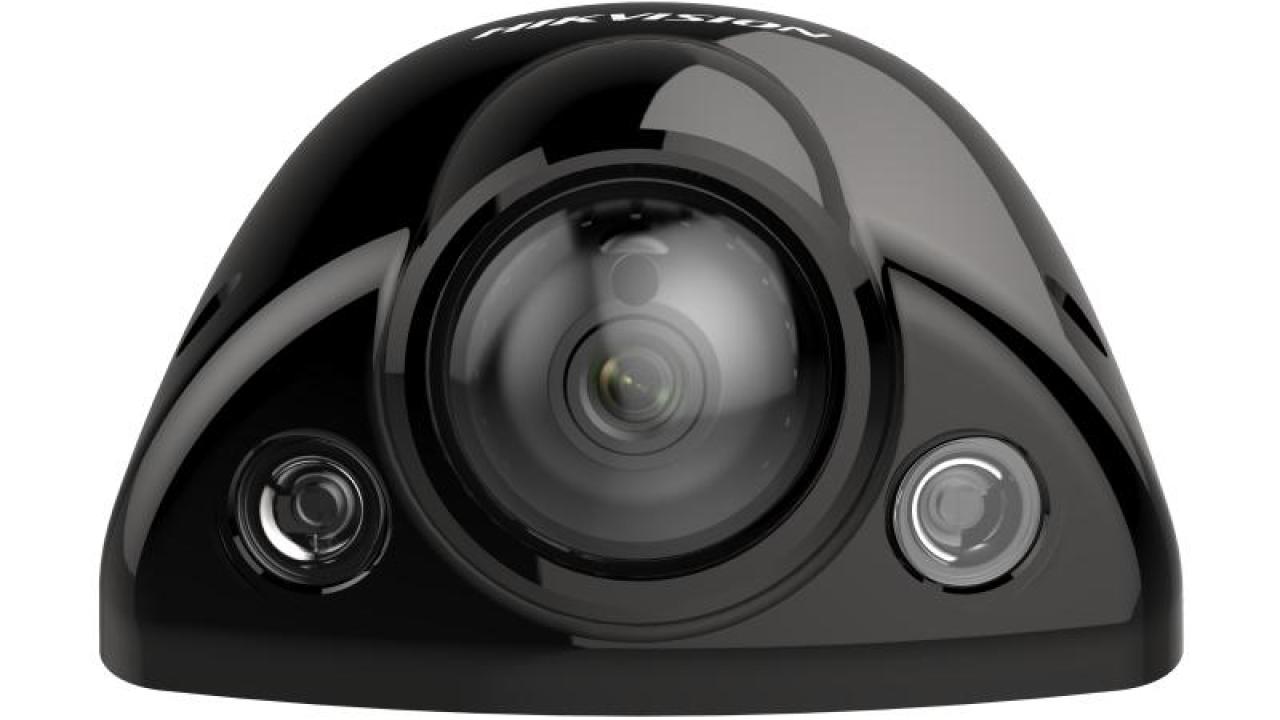

Mobile Outdoor Dome Network Camera

High quality imaging with 2 MP resolution
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Water and dust resistant (IP68) and vandal proof (IK10)
Advanced streaming technology that enables smooth live view and data self-correcting in poor network
3D DNR technology delivers clean and sharp images
Hik-Connect cloud service and APP for remote management and views of devices

View Less

Available models:

DS-2XM6522G0-IM/ND(2.8mm)

DS-2XM6522G0-IM/ND(4mm)

DS-2XM6522G0-IM/ND(6mm)

DS-2XM6522G0-I/ND(2.8mm)

DS-2XM6522G0-I/ND(4mm)

DS-2XM6522G0-I/ND(6mm)

DS-2XM6522G0-IDM(2.8mm)

DS-2XM6522G0-IDM(4mm)

DS-2XM6522G0-ID(2.8mm)

DS-2XM6522G0-ID(4mm)

DS-2XM6522G0-I(D)(M)(/ND)

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time1 s to 1/100, 000 s
Day & NightICR Cut
Angle Adjustment2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90° 4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90°

Lens
Focal Length & FOV2.8 mm: horizontal FOV 104°, vertical FOV 56°, diagonal FOV 121° 4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59°
Lens MountM12
Aperture2.8 mm/4 mm: F2.0; 6 mm: F1.6

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 10 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Third Stream50 Hz: 25 fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Video Compression Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265 /H.264 / MJPEG Third Stream: H.265 /H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.265 and H.264 support
Region of Interest (ROI)4 fixed regions for each stream, and dynamic face tracking

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
Smooth StreamingYes
User/HostUp to 32 users 3 levels: Administrator, Operator and User
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0-51

Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120dB
SNR> 50dB
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
Privacy Mask4 regions of privacy mask
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface
Video OutputNo
Ethernet InterfaceWithout -M: 1 RJ45 10M/100M self-adaptive Ethernet port -M: 1 four-core M12 aviation plug
On-Board StorageNo
AudioNo
Reset KeyYes

Event
Smart EventLine crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection
LinkageUpload to FTP/NAS, notify surveillance center, send email

General
Power-I/ND: RJ45 interface PoE: 802.3af, Class 0, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.8 W -ID: 24 VDC ± 25%, 0.36 A, max. 8.6 W, Ø5.5 mm coaxial power plug, two-core terminal block, reverse polarity protection -IDM: 24 VDC ± 25%, 0.36 A, max. 8.6 W, two-core Molex connector, two-core terminal block, reverse polarity protection -IM/ND: four-core M12 aviation plug PoE: 802.3af, Class 0, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.8 W
Dimension163.7 × 122.6 × 65.1 mm (6.4" × 4.8" × 2.6")
Package Dimension252 × 190 × 108 mm(9.9" × 7.5" × 4.3")
Weight850 g (1.9 lb.)
With Package Weight1200 g (2.6 lb.)
Storage Conditions-40 °C to 70 °C (-40 °F to 158 °F), Humidity 95% or less (non-condensing)
Startup and Operating Conditions-40 °C to 70 °C (-40 °F to 158 °F).Humidity 95% or less (non-condensing)
Embedded Open PlatformNo
General FunctionAnti- flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (2014/30/EC, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4); RCM (AS/NZS CISPR 32); IC (ICES-003); KC (KN 32: 2015, KN 35, K 60950-1); E-MARK (ECE R10.05); FCC
SafetyUL (UL 60950-1); CB (IEC 60950-1); CE-LVD (2014/35/EU or 2001/95/EC, EN60950-1); LOA; UL (UL
EnvironmentCE-ROHS (2011/65/EU IEC 62321); REACH (Regulation (EC) No 1907/2006); WEEE (2012/19/EU);
ProtectionIP68 (IEC 60529-2013), IK10 (IEC 62262:2002)
Automotive and RailwayEN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

1 s to 1/100, 000 s

Day & Night

ICR Cut

Angle Adjustment

2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90° 4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90°

Lens

Focal Length & FOV

2.8 mm: horizontal FOV 104°, vertical FOV 56°, diagonal FOV 121° 4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59°

Lens Mount

M12

Aperture

2.8 mm/4 mm: F2.0; 6 mm: F1.6

Illuminator

Supplement Light Type

Supplement Light Range

Up to 10 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

Third Stream

50 Hz: 25 fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)

Video Compression

Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265 /H.264 / MJPEG Third Stream: H.265 /H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.265 and H.264 support

Region of Interest (ROI)

4 fixed regions for each stream, and dynamic face tracking

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Simultaneous Live View

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Smooth Streaming

Yes

User/Host

Up to 32 users 3 levels: Administrator, Operator and User

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0-51


Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120dB

SNR

> 50dB

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS

Privacy Mask

4 regions of privacy mask

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface

Video Output

Ethernet Interface

Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port -M: 1 four-core M12 aviation plug

On-Board Storage

Audio

Reset Key

Yes

Event

Smart Event

Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection

Linkage

Upload to FTP/NAS, notify surveillance center, send email

General

Power

-I/ND: RJ45 interface PoE: 802.3af, Class 0, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.8 W -ID: 24 VDC ± 25%, 0.36 A, max. 8.6 W, Ø5.5 mm coaxial power plug, two-core terminal block, reverse polarity protection -IDM: 24 VDC ± 25%, 0.36 A, max. 8.6 W, two-core Molex connector, two-core terminal block, reverse polarity protection -IM/ND: four-core M12 aviation plug PoE: 802.3af, Class 0, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.8 W

Dimension

163.7 × 122.6 × 65.1 mm (6.4" × 4.8" × 2.6")

Package Dimension

252 × 190 × 108 mm(9.9" × 7.5" × 4.3")

Weight

850 g (1.9 lb.)

With Package Weight

1200 g (2.6 lb.)

Storage Conditions

-40 °C to 70 °C (-40 °F to 158 °F), Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-40 °C to 70 °C (-40 °F to 158 °F).Humidity 95% or less (non-condensing)

Embedded Open Platform

General Function

Anti- flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (2014/30/EC, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4); RCM (AS/NZS CISPR 32); IC (ICES-003); KC (KN 32: 2015, KN 35, K 60950-1); E-MARK (ECE R10.05); FCC

Safety

UL (UL 60950-1); CB (IEC 60950-1); CE-LVD (2014/35/EU or 2001/95/EC, EN60950-1); LOA; UL (UL

Environment

CE-ROHS (2011/65/EU IEC 62321); REACH (Regulation (EC) No 1907/2006); WEEE (2012/19/EU);

Protection

IP68 (IEC 60529-2013), IK10 (IEC 62262:2002)

Automotive and Railway

EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
