DS-2XM6112FWD-I(M)

EOL

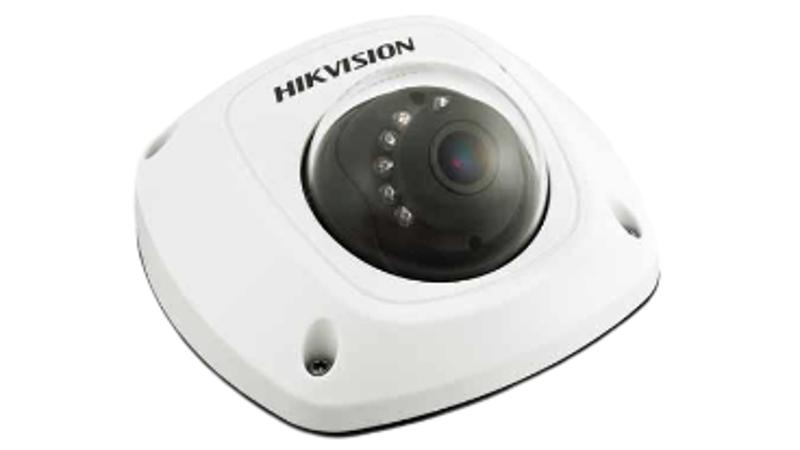

Mobile Mini Dome Network Camera

High quality imaging with 1.3 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB WDR technology

View Less

Available models:

DS-2XM6112FWD-IM(4mm)

DS-2XM6112FWD-I(4mm)

DS-2XM6112FWD-I(6mm)

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Min. Illumination0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Day &NightIR cut filter with auto switch
Wide Dynamic Range120dB
Angle AdjustmentPan: -30° to 30°, Tilt: 0° to 80°, Rotate: 0° to 360°
DNR3D DNR

Lens
Lens4 mm, horizontal field of view 90° [6 mm (53.9°), 8 mm (37.9°), optional]
Lens MountM12

Illuminator
IR RangeUp to 10 m

Video
Max. Resolution1280 × 960
Main Stream50Hz: 25fps (1280 × 960, 1280×720),60Hz: 30fps (1280 × 960, 1280×720)
Sub Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream50Hz: 25fps (1280 × 960, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (1280 × 960, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate256 Kbps to 16 Mbps

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Environment Noise FilteringSupport
Audio Sampling RateMax. 48kHz
AudioSupport

Smart Feature-Set
Smart EventDefocus Detection, Scene Change Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
Region of InterestSupport 4 fixed region for each stream, or face dynamic tracking

Image EnhancementBLC/HLC/3D DNR/Defog/EIS
Image SettingSupport rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
Target CroppingSupport
Day/Night SwitchDay/Night/Auto/Scheduled
Picture OverlayLOGO picture can be overlaid on video with 128 × 128, 24 bit bmp format

Network
Network StorageNAS (Support NFS, SMB/CIFS), Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Alarm TriggerMotion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error

Interface
Communication Interface-IM: M12 aviation plug,-I: 1 RJ45 10M/100M Ethernet port
AudioBuild-in microphone, audio output(line out)
Video Output1Vp-p Composite Output(75Ω/BNC)

Battery
Operating condition-30 °C to +60 °C (-22 °F to +140°F), Humidity 95% or less (non-condensing)

Approval
Impact ProtectionIK8

Compression Standard
H.264+Main stream supports
H.265+Main stream supports

General
General FunctionOne-key Reset, Dual-VCA, Anti-Flicker, Three Streams, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Power SupplyDC12V; PoE (802.3af)
Power Consumption and CurrentMax. 5W
Dimensions99.3 × 96.7 × 52.8 mm (3.9″ × 3.8″ × 2.1″)
Weight420 g (0.92lbs)
Interface ProtectionIP66

Specification

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Min. Illumination

0.01Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Day &Night

IR cut filter with auto switch

Wide Dynamic Range

120dB

Angle Adjustment

Pan: -30° to 30°, Tilt: 0° to 80°, Rotate: 0° to 360°

DNR

3D DNR

Lens

4 mm, horizontal field of view 90° [6 mm (53.9°), 8 mm (37.9°), optional]

Lens Mount

M12

Illuminator

IR Range

Up to 10 m

Video

Max. Resolution

1280 × 960

Main Stream

50Hz: 25fps (1280 × 960, 1280×720),60Hz: 30fps (1280 × 960, 1280×720)

Sub Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)

Third Stream

50Hz: 25fps (1280 × 960, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (1280 × 960, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

256 Kbps to 16 Mbps

Audio

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Environment Noise Filtering

Support

Audio Sampling Rate

Max. 48kHz

Audio

Support

Smart Feature-Set

Smart Event

Defocus Detection, Scene Change Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection

Region of Interest

Support 4 fixed region for each stream, or face dynamic tracking


Image Enhancement

BLC/HLC/3D DNR/Defog/EIS

Image Setting

Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software

Target Cropping

Support

Day/Night Switch

Day/Night/Auto/Scheduled

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128, 24 bit bmp format

Network

Network Storage

NAS (Support NFS, SMB/CIFS), Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

Alarm Trigger

Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error

Interface

Communication Interface

-IM: M12 aviation plug,-I: 1 RJ45 10M/100M Ethernet port

Audio

Build-in microphone, audio output(line out)

Video Output

1Vp-p Composite Output(75Ω/BNC)

Battery

Operating condition

-30 °C to +60 °C (-22 °F to +140°F), Humidity 95% or less (non-condensing)

Approval

Impact Protection

IK8

Compression Standard

H.264+

Main stream supports

H.265+

Main stream supports

General

General Function

One-key Reset, Dual-VCA, Anti-Flicker, Three Streams, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter

Power Supply

DC12V; PoE (802.3af)

Power Consumption and Current

Max. 5W

Dimensions

99.3 × 96.7 × 52.8 mm (3.9″ × 3.8″ × 2.1″)

Weight

420 g (0.92lbs)

Interface Protection

IP66

Camera

Image Sensor1/2.7" Progressive Scan CMOS
Min. Illumination0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Day &NightIR cut filter with auto switch
Wide Dynamic Range120dB
Angle AdjustmentPan: -30° to 30°, Tilt: 0° to 80°, Rotate: 0° to 360°
DNR3D DNR

Lens

Lens4 mm, horizontal field of view 90° [6 mm (53.9°), 8 mm (37.9°), optional]
Lens MountM12

Illuminator

IR RangeUp to 10 m

Video

Max. Resolution1280 × 960
Main Stream50Hz: 25fps (1280 × 960, 1280×720),60Hz: 30fps (1280 × 960, 1280×720)
Sub Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream50Hz: 25fps (1280 × 960, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (1280 × 960, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate256 Kbps to 16 Mbps

Audio

Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Environment Noise FilteringSupport
Audio Sampling RateMax. 48kHz
AudioSupport

Smart Feature-Set

Smart EventDefocus Detection, Scene Change Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
Region of InterestSupport 4 fixed region for each stream, or face dynamic tracking


Image EnhancementBLC/HLC/3D DNR/Defog/EIS
Image SettingSupport rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
Target CroppingSupport
Day/Night SwitchDay/Night/Auto/Scheduled
Picture OverlayLOGO picture can be overlaid on video with 128 × 128, 24 bit bmp format

Network

Network StorageNAS (Support NFS, SMB/CIFS), Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Alarm TriggerMotion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error

Interface

Communication Interface-IM: M12 aviation plug,-I: 1 RJ45 10M/100M Ethernet port
AudioBuild-in microphone, audio output(line out)
Video Output1Vp-p Composite Output(75Ω/BNC)

Battery

Operating condition-30 °C to +60 °C (-22 °F to +140°F), Humidity 95% or less (non-condensing)

Approval

Impact ProtectionIK8

Compression Standard

H.264+Main stream supports
H.265+Main stream supports

General

General FunctionOne-key Reset, Dual-VCA, Anti-Flicker, Three Streams, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Power SupplyDC12V; PoE (802.3af)
Power Consumption and CurrentMax. 5W
Dimensions99.3 × 96.7 × 52.8 mm (3.9″ × 3.8″ × 2.1″)
Weight420 g (0.92lbs)
Interface ProtectionIP66
