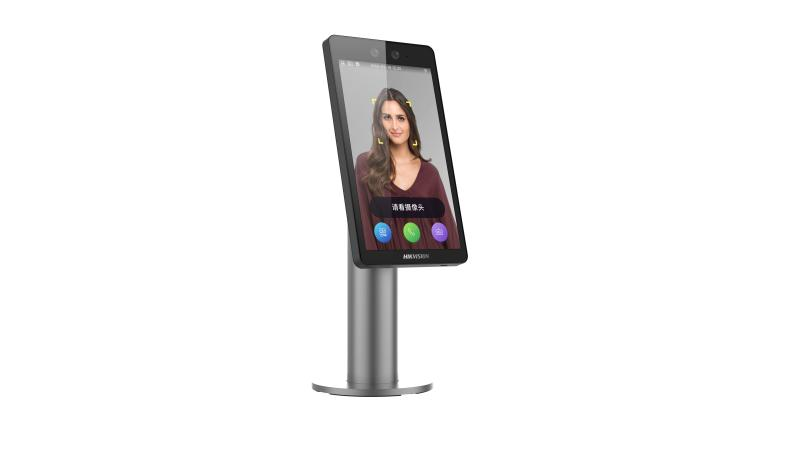

Face Recognition Module For Turnstile

  • 7-inch touch screen with bezel-less design
  • Presents card on the screen to authenticate card permission
  • 50,000 face capacity, 50,000 card capacity, and 50,000 event capacity
  • Face recognition distance: 0.3 m to 3 m
  • Two-way audio with indoor station and master station
  • Remotely opens door and starts live view via Hik-Connect
  • Supports multiple languages: English, Thai, Russian, Spanish, and Arabic
  • Configuration via the web client
View Less
View more
Sales Inquiry
DS-K5672

Specification

  • Display
  • Dimensions7-inch
  • TypeLCD, IPS
  • Operation methodCapacitive touch screen
  • Video
  • Pixel2 MP
  • Lens× 2 Visible light lens × 1，850nm Infrared lens × 1
  • Audio
  • Tone qualityNoise Suppression and Echo Cancellation
  • Network
  • Wired network10 M/100 M/1000 M self-adaptive
  • Interface
  • Network interface1
  • Lock output1
  • Exit button1
  • Door contact input1
  • Power interface2-pin
  • Authentication
  • Card typeM1 card
  • Card reading frequency13.56MHz
  • General
  • buttonTouch screen
  • Power supply method12 VDC Power Adapter
  • Working temperature-10 °C to 50 °C (-58 °F to 122 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions286.3 × 103.36 × 100 mm (11.3'' × 4.07'' × 3.94'' )
  • Application environmentIndoor
  • InstallationWith stand
  • Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display
Dimensions
7-inch
Type
LCD, IPS
Operation method
Capacitive touch screen
Video
Pixel
2 MP
Lens
× 2 Visible light lens × 1，850nm Infrared lens × 1
Audio
Tone quality
Noise Suppression and Echo Cancellation
Network
Wired network
10 M/100 M/1000 M self-adaptive
Interface
Network interface
1
Lock output
1
Exit button
1
Door contact input
1
Power interface
2-pin
Authentication
Card type
M1 card
Card reading frequency
13.56MHz
General
button
Touch screen
Power supply method
12 VDC Power Adapter
Working temperature
-10 °C to 50 °C (-58 °F to 122 °F)
Working humidity
0 to 90% (No condensing)
Dimensions
286.3 × 103.36 × 100 mm (11.3'' × 4.07'' × 3.94'' )
Application environment
Indoor
Installation
With stand
Function
QR code recognition
Support
Face anti-spoofing
Support
Audio prompt
Support
Time synchronization
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display
  • Dimensions7-inch
  • TypeLCD, IPS
  • Operation methodCapacitive touch screen
Video
  • Pixel2 MP
  • Lens× 2 Visible light lens × 1，850nm Infrared lens × 1
Audio
  • Tone qualityNoise Suppression and Echo Cancellation
Network
  • Wired network10 M/100 M/1000 M self-adaptive
Interface
  • Network interface1
  • Lock output1
  • Exit button1
  • Door contact input1
  • Power interface2-pin
Authentication
  • Card typeM1 card
  • Card reading frequency13.56MHz
General
  • buttonTouch screen
  • Power supply method12 VDC Power Adapter
  • Working temperature-10 °C to 50 °C (-58 °F to 122 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions286.3 × 103.36 × 100 mm (11.3'' × 4.07'' × 3.94'' )
  • Application environmentIndoor
  • InstallationWith stand
Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
