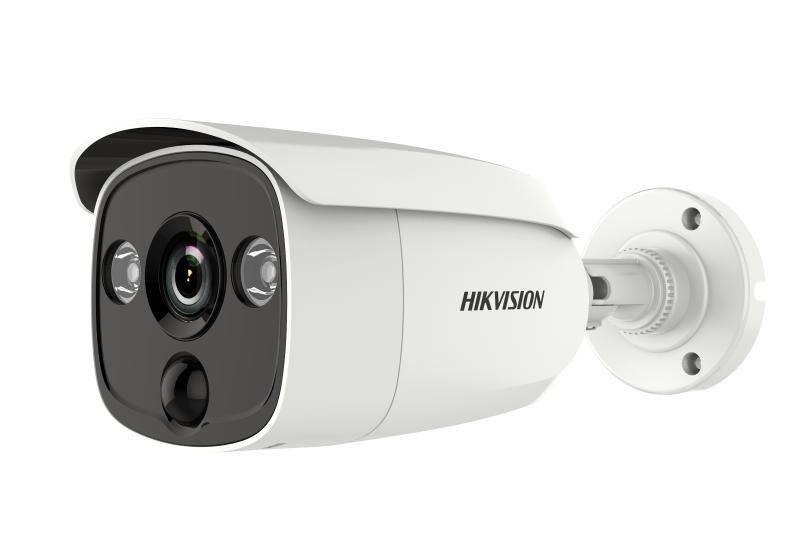

5 MP PIR Fixed Bullet Camera

  • 5 MP PIR bullet camera
  • PIR detection, strobe light alarm and alarm out to warn off intruders in real time
  • EXIR 2.0: advanced infrared technology with 20 m IR distance
  • Water and dust resistant (IP67)

Specification
  • Camera
  • Image Sensor5 MP CMOS image sensor
  • Signal SystemPAL/NTSC
  • Frame RateTVI: 5 MP@20fps, 4 MP@25fps, 4 MP@30fps, 1080P@25fps, 1080P@30fps
  • Resolution2560 (H) × 1944 (V)
  • Min. illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/20 s to 1/50,000 s NTSC: 1/20 s to 1/50,000 s
  • Lens2.8 mm, 3.6 mm fixed lens
  • Horizontal Field of View91° (2.8 mm), 70° (3.6 mm), 45° (6 mm)
  • Lens MountM12
  • Day & NightICR
  • WDR (Wide Dynamic Range)Digital WDR
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
  • Menu
  • White LightAUTO/OFF
  • Image ModeSTD/HIGH-SAT
  • AGCSupport
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceAuto/Manual
  • BLC (Backlight Compensation)Support
  • LanguageEnglish
  • FunctionsBrightness, Sharpness, Mirror, Smart IR
  • Interface
  • Video Output1 HD analog output
  • General
  • Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Power Supply12 VDC ± 25%
  • Power ConsumptionMax. 3.5 W
  • Protection LevelIP67
  • MaterialFront cover: Metal Main body: Plastic
  • IR RangeUp to 20 m
  • CommunicationHIKVISION-C
  • Dimensions88.6 mm × 81.3 mm × 224.7 mm (3.49" × 3.20" × 8.85")
  • WeightApprox. 443 g (0.98 lb.)
