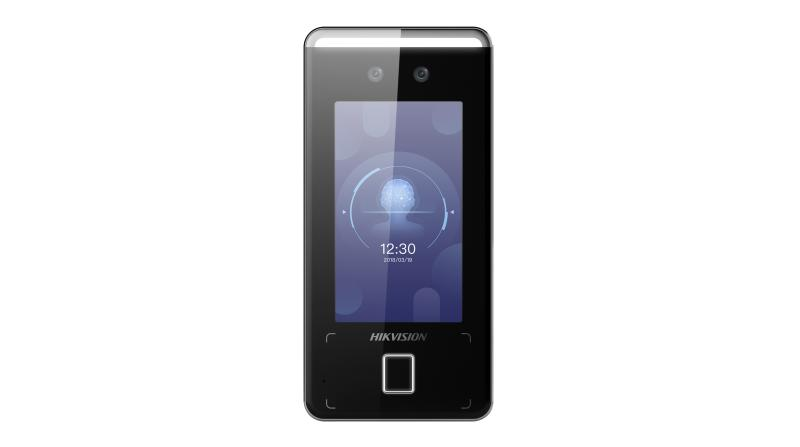

Value Series Face Access Terminal

  • Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in Mifare card reading module
  • Max.1500 faces capacity and Max.1500 fingerprints capacity, Max.1500 cards
  • Two-way audio with client software, indoor station, and master stationSupports TCP/IP
  • Supports ISUP5.0, ISAPI
  • Configuration via the web client
  • Face recognition. Distance: 0.5 m to 1.5 m
  • Duration < 0.2 s/User
  • Accuracy rate ≥ 99%; IP65

Specification
  • System
  • CPU800 MHz
  • Memory1GB
  • Flash4GB
  • Operation systemLinux
  • Display
  • Dimensions4.3-inch
  • Resolution800 × 480
  • TypeLCD
  • Operation methodCapacitive touch screen
  • Lumens350cd/M2
  • Video
  • Pixel2 MP
  • Lens× 2
  • Focal length4mm
  • WDRSupport
  • ApertureF2.0
  • HOVHFOV:41.5°; VFOV:75.5°; DFOV:87°
  • Video standardPAL (Default) and NTSC
  • Audio
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Volume adjustmentAdjust via device or client
  • Power output1.5W
  • Audio compression standardG.711U
  • Audio compression bitrate64Kbps
  • Tone qualityNoise suppression and echo cancellation
  • Network
  • Wired network10 M/100 M/1000 M self-adaptive
  • Wi-FiNot support
  • 3G/4GNot support
  • BluetoothNot support
  • Communication protocolEHome 5.0
  • Interface
  • Network interface1
  • RS-4851
  • Wiegand1
  • Lock output1
  • Exit button1
  • Door contact input1
  • IO input-
  • IO output-
  • Power interface2-pin
  • TAMPER1
  • USB1
  • TF card-
  • SIM card-
  • PSAM cardReserved
  • Capacity
  • Card capacity1,500
  • Face capacity1,500
  • Fingerprint capacity1,500
  • Event capacity150,000
  • Schedule template255
  • Weekly plan128
  • Holiday schedule1024
  • Holiday group64
  • Authentication
  • Card typeMifare 1 card
  • Card reading frequency13.56MHz
  • Card reading distance0 to 3 cm
  • Card reading duration< 1 s
  • Face recognition duration< 0.2 s
  • Face recognition accuracy rate>99%
  • Face recognition distance0.3 to 1.5 m
  • Fingerprint recognition duration<1s
  • Fingerprint False Acceptance Rate (FAR)0.0001%,Laboratory test data
  • Fingerprint False Rejection Rate (FRR)1%,Laboratory test data
  • Function
  • QR code recognitionSupport
  • Multiple faces detectionNot support
  • Face anti-spoofingSupport
  • Live viewSupport
  • Two-way audioSupport
  • AdvertisementNot support
  • DoorbellNot support
  • Audio promptSupport
  • M1 card encryptionSupport
  • CPU card encryptionNot support
  • Anti-passbackSupport
  • First person inSupport
  • Multi-factor authenticationSupport
  • Time synchronizationSupport
  • General
  • buttonTouch Screen
  • Supplement lightWhite light and IR light
  • Indicator-
  • Power supply method2 pin connecter
  • Power supply12 VDC, 2 A. (power adapter not included)
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions172.5 mm × 83.2 mm × 22.7 mm (6.79" × 3.27" × 0.89")
  • Application environmentIndoor
  • Protective levelIP65
  • Weight0.5kg
  • InstallationSurface mounting
  • Approval-
