EOL

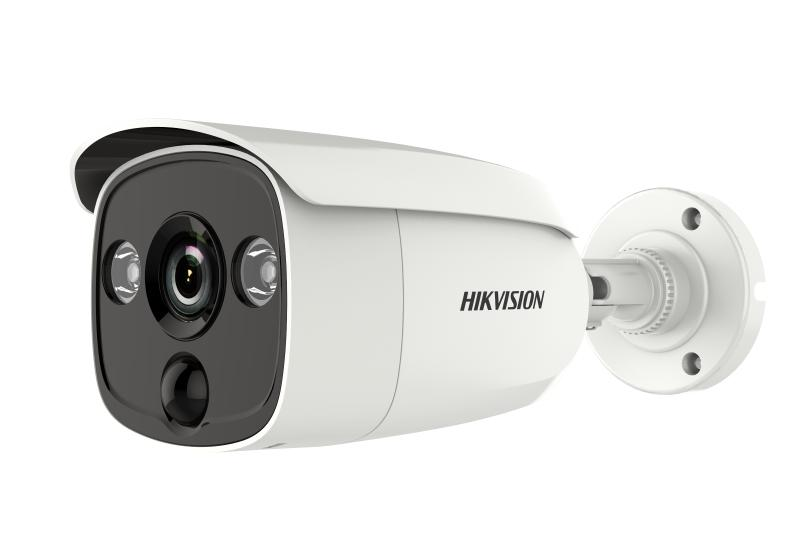

2 MP Ultra Low Light PIR Fixed Bullet Camera

  • 2 MP high performance PIR bullet camera
  • PIR detection, strobe light alarm and alarm out to warn off intruders in real time
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • EXIR 2.0: advanced infrared technology with 20 m IR distance
  • Water and dust resistant (IP67)
View Less
View more

Available models:

DS-2CE12D8T-PIRLO(2.8mm)
DS-2CE12D8T-PIRLO(3.6mm)

Specification

  • Camera
  • Image Sensor2MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.003 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Light AlarmYes
  • Lens
  • Lens Type2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 103.5°, vertical FOV: 55°, diagonal FOV: 119° 3.6 mm, horizontal FOV: 79.1°, vertical FOV: 43°, diagonal FOV: 92°
  • Lens MountM12
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, DNR , Mirror, Smart IR
  • Frame RateTVI: 1080p@25fps/30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥130 dB
  • White BalanceAuto/Manual
  • White LightAUTO/OFF
  • AGCSupport
  • Interface
  • Video Output1 HD analog output
  • General
  • MaterialFront cover: Metal Main body: Plastic
  • Dimension88.6 mm × 81.3 mm × 224.7 mm (3.49" × 3.20" × 8.85" )
  • WeightApprox. 443 g (0.98 lb.)
  • Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 3.9 W
  • IR RangeUp to 20 m
  • Approval
  • ProtectionIP67

Specification

Specification
Camera
  • Image Sensor2MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.003 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Light AlarmYes
Lens
  • Lens Type2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 103.5°, vertical FOV: 55°, diagonal FOV: 119° 3.6 mm, horizontal FOV: 79.1°, vertical FOV: 43°, diagonal FOV: 92°
  • Lens MountM12
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, DNR , Mirror, Smart IR
  • Frame RateTVI: 1080p@25fps/30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥130 dB
  • White BalanceAuto/Manual
  • White LightAUTO/OFF
  • AGCSupport
Interface
  • Video Output1 HD analog output
General
  • MaterialFront cover: Metal Main body: Plastic
  • Dimension88.6 mm × 81.3 mm × 224.7 mm (3.49" × 3.20" × 8.85" )
  • WeightApprox. 443 g (0.98 lb.)
  • Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 3.9 W
  • IR RangeUp to 20 m
Approval
  • ProtectionIP67
