EOL

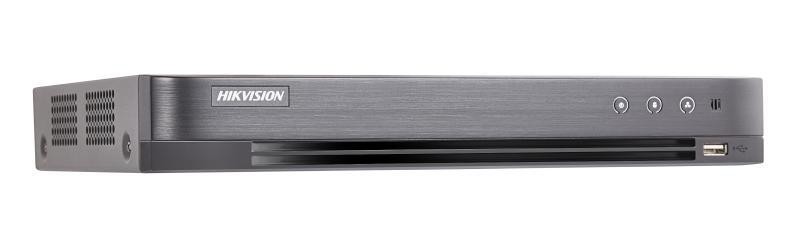

4-ch 1080p 1U H.265 Balun DVR

  • 4 channels and 1 HDD 1U DVR
  • Built-in balun: video can be transported via twisted-pair
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 6 network cameras can be connected
View Less
View more

Available models:

DS-7204HQHI-K1/B

Specification

  • Recording
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual streamSupport
  • Frame rateMain stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Encoding resolutionWhen 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
  • Video bit rate32 Kbps to 6 Mbps
  • Video and Audio
  • Analog video input4-ch;Balun interface, supporting coaxitron connection
  • AHD input4 MP25, 4 MP30, 1080p25, 1080p30, 720p25, 720p30
  • CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω),Resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback4-ch
  • IP video input1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1.
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections32
  • Network interface1,RJ45 10M/100M self-adaptive Ethernet interface
  • Auxiliary interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial interfaceRS-485 (half-duplex)
  • USB interfaceRear panel: 2 × USB 2.0
  • Alarm in/outN/A
  • SATA1 SATA interface
  • General
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
  • Weights (without HDD)≤ 1.16 kg (2.6 lb)
  • Consumption(without HDD)≤ 6 W
  • Working humidity10% to 90%
  • Power supply12 VDC

Specification

Specification
Recording
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual streamSupport
  • Frame rateMain stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Encoding resolutionWhen 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
  • Video bit rate32 Kbps to 6 Mbps
Video and Audio
  • Analog video input4-ch;Balun interface, supporting coaxitron connection
  • AHD input4 MP25, 4 MP30, 1080p25, 1080p30, 720p25, 720p30
  • CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω),Resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback4-ch
  • IP video input1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1.
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections32
  • Network interface1,RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial interfaceRS-485 (half-duplex)
  • USB interfaceRear panel: 2 × USB 2.0
  • Alarm in/outN/A
  • SATA1 SATA interface
General
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
  • Weights (without HDD)≤ 1.16 kg (2.6 lb)
  • Consumption(without HDD)≤ 6 W
  • Working humidity10% to 90%
  • Power supply12 VDC

Available models:

DS-7204HQHI-K1/B

Specification

  • Recording
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual streamSupport
  • Frame rateMain stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Encoding resolutionWhen 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
  • Video bit rate32 Kbps to 6 Mbps
  • Video and Audio
  • Analog video input4-ch;Balun interface, supporting coaxitron connection
  • AHD input4 MP25, 4 MP30, 1080p25, 1080p30, 720p25, 720p30
  • CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω),Resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback4-ch
  • IP video input1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1.
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections32
  • Network interface1,RJ45 10M/100M self-adaptive Ethernet interface
  • Auxiliary interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial interfaceRS-485 (half-duplex)
  • USB interfaceRear panel: 2 × USB 2.0
  • Alarm in/outN/A
  • SATA1 SATA interface
  • General
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
  • Weights (without HDD)≤ 1.16 kg (2.6 lb)
  • Consumption(without HDD)≤ 6 W
  • Working humidity10% to 90%
  • Power supply12 VDC

Specification

Specification
Recording
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual streamSupport
  • Frame rateMain stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Encoding resolutionWhen 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
  • Video bit rate32 Kbps to 6 Mbps
Video and Audio
  • Analog video input4-ch;Balun interface, supporting coaxitron connection
  • AHD input4 MP25, 4 MP30, 1080p25, 1080p30, 720p25, 720p30
  • CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω),Resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback4-ch
  • IP video input1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1.
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections32
  • Network interface1,RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial interfaceRS-485 (half-duplex)
  • USB interfaceRear panel: 2 × USB 2.0
  • Alarm in/outN/A
  • SATA1 SATA interface
General
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
  • Weights (without HDD)≤ 1.16 kg (2.6 lb)
  • Consumption(without HDD)≤ 6 W
  • Working humidity10% to 90%
  • Power supply12 VDC
