DS-PSG-WO-868

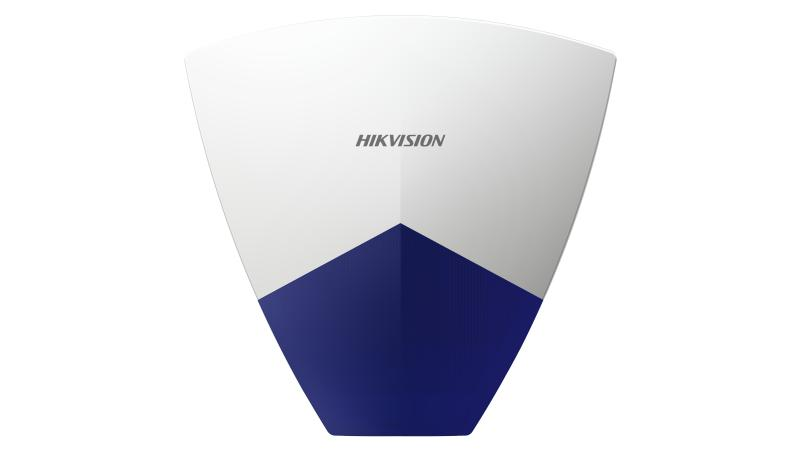

    Wireless external siren

    • RF 868MHz, AES-128 encryption Two-way wireless communication
    • Reports exception automatically
    • Adjustable volume: low,medium, and high
    • Front and rear panel tamper-proof
    • Protection level: IP65
    • Outdoor installation
    • Flashing blue LED for alarm indication
    • 3 kinds of alarm sounds: fire alarm, intrusion alarm, and panic alarm
    View Less
    View more

    Available models:

    DS-PSG-WO-868

    Specification

    • Hardware features
    • Tamper-ProofFront and rear
    • Electrical characteristics
    • Power supply4 x CR123A Batteries or 12 VDC
    • Operation humidity10% to 90% (no condensing)
    • Operation temperature-25 °C to +60 °C (-13 °F to +140 °F)
    • Power consumptionStatic consumption: ＜ 20 uA
    • Battery life span5 years in stand-by status
    • Wireless transmission
    • RF speed4.8 kbps
    • RF power10 dBm
    • RF frequency868MHz
    • RF modulation2GFSK
    • RF distance800 m (open area)
    • Display
    • IndicatorBlue (on front panel), Green/Red (on PCB)
    • General
    • IP rateIP65
    • Installation methodWall mounting
    • Dimension(WxHxD)220.5 × 205.2 × 46 mm (8.68" × 8.08" × 1.81"）
    • Shell materialPC+ABS
    • ColorWhite and blue
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Hardware features
    Tamper-Proof
    Front and rear
    Electrical characteristics
    Power supply
    4 x CR123A Batteries or 12 VDC
    Operation humidity
    10% to 90% (no condensing)
    Operation temperature
    -25 °C to +60 °C (-13 °F to +140 °F)
    Power consumption
    Static consumption: ＜ 20 uA
    Battery life span
    5 years in stand-by status
    Wireless transmission
    RF speed
    4.8 kbps
    RF power
    10 dBm
    RF frequency
    868MHz
    RF modulation
    2GFSK
    RF distance
    800 m (open area)
    Display
    Indicator
    Blue (on front panel), Green/Red (on PCB)
    General
    IP rate
    IP65
    Installation method
    Wall mounting
    Dimension(WxHxD)
    220.5 × 205.2 × 46 mm (8.68" × 8.08" × 1.81"）
    Shell material
    PC+ABS
    Color
    White and blue
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Hardware features
    • Tamper-ProofFront and rear
    Electrical characteristics
    • Power supply4 x CR123A Batteries or 12 VDC
    • Operation humidity10% to 90% (no condensing)
    • Operation temperature-25 °C to +60 °C (-13 °F to +140 °F)
    • Power consumptionStatic consumption: ＜ 20 uA
    • Battery life span5 years in stand-by status
    Wireless transmission
    • RF speed4.8 kbps
    • RF power10 dBm
    • RF frequency868MHz
    • RF modulation2GFSK
    • RF distance800 m (open area)
    Display
    • IndicatorBlue (on front panel), Green/Red (on PCB)
    General
    • IP rateIP65
    • Installation methodWall mounting
    • Dimension(WxHxD)220.5 × 205.2 × 46 mm (8.68" × 8.08" × 1.81"）
    • Shell materialPC+ABS
    • ColorWhite and blue
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
