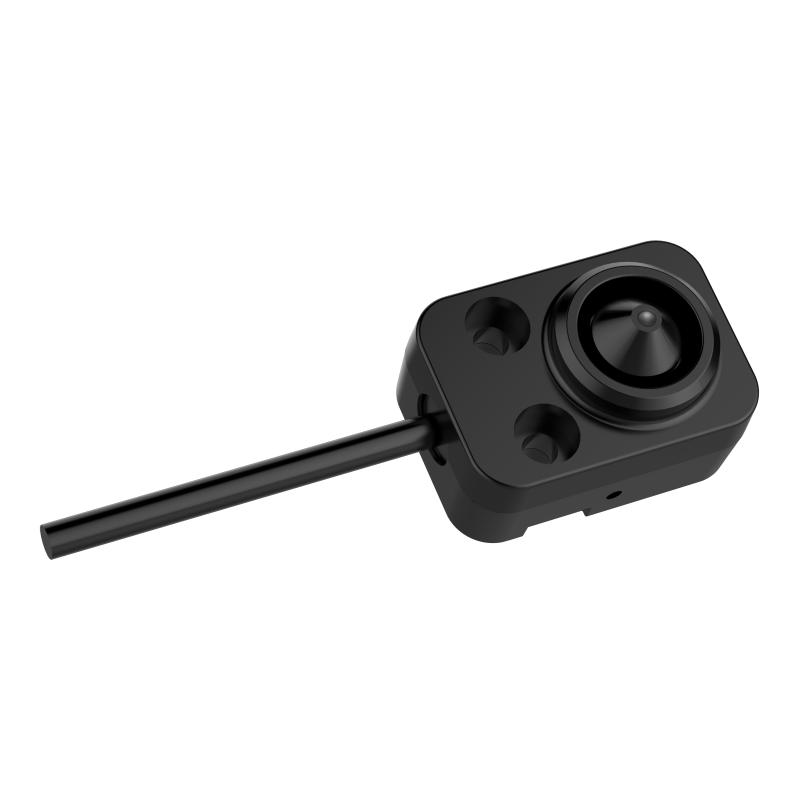

Separated Network Camera(Lens)

High quality imaging with 2 MP resolution
Separated and small lens for easy installation
Clear imaging against strong back light due to 120 dB WDR technology

View Less

Thông số sản phẩm

DS-2CD6425G1-L20

Specification
Resources
Accessories

Thông số sản phẩm

Máy ảnh
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON)

Lens
Focal Length & FOVL20 model: 2.8 mm, horizontal FOV 93.8°, vertical FOV 51.7°, diagonal FOV 109.3° 3.7 mm, horizontal FOV 77.5°, vertical FOV 39.4°, diagonal FOV 94.1°
Lens MountL20: Mini
Iris TypeFixed
ApertureF2.0

DORI
DORIL20: 2.8 mm: D: 47.9 m, O: 19 m, R: 9.6 m, I: 4.8 m 3.7 mm: D: 59.3 m, O: 23.5 m, R: 11.9 m, I: 5.9 m

Wide Dynamic Range (WDR)120 dB

General
MaterialMain body: Zinc Alloy
Dimension37 mm × 26 mm × 25 mm (1.46" × 1.02" × 0.98")
Package Dimension219 mm × 139 mm × 100 mm (8.6" × 5.5" × 3.9")
WeightApprox. 50 g (0.11 lb.)
With Package Weight 2 m cable: 451 g (0.99 lb); 8 m cable: 676 g (1.49 lb)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Length of Lens Cable2 and 8 m (6.6 and 26.2 ft.)

Máy ảnh

Image Sensor

1/2.7" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.005 Lux @ (F1.2, AGC ON)

Lens

Focal Length & FOV

L20 model: 2.8 mm, horizontal FOV 93.8°, vertical FOV 51.7°, diagonal FOV 109.3° 3.7 mm, horizontal FOV 77.5°, vertical FOV 39.4°, diagonal FOV 94.1°

Lens Mount

L20: Mini

Iris Type

Fixed

Aperture

F2.0

DORI

L20: 2.8 mm: D: 47.9 m, O: 19 m, R: 9.6 m, I: 4.8 m 3.7 mm: D: 59.3 m, O: 23.5 m, R: 11.9 m, I: 5.9 m


Wide Dynamic Range (WDR)

120 dB

General

Material

Main body: Zinc Alloy

Dimension

37 mm × 26 mm × 25 mm (1.46" × 1.02" × 0.98")

Package Dimension

219 mm × 139 mm × 100 mm (8.6" × 5.5" × 3.9")

Weight

Approx. 50 g (0.11 lb.)

With Package Weight

2 m cable: 451 g (0.99 lb); 8 m cable: 676 g (1.49 lb)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions
