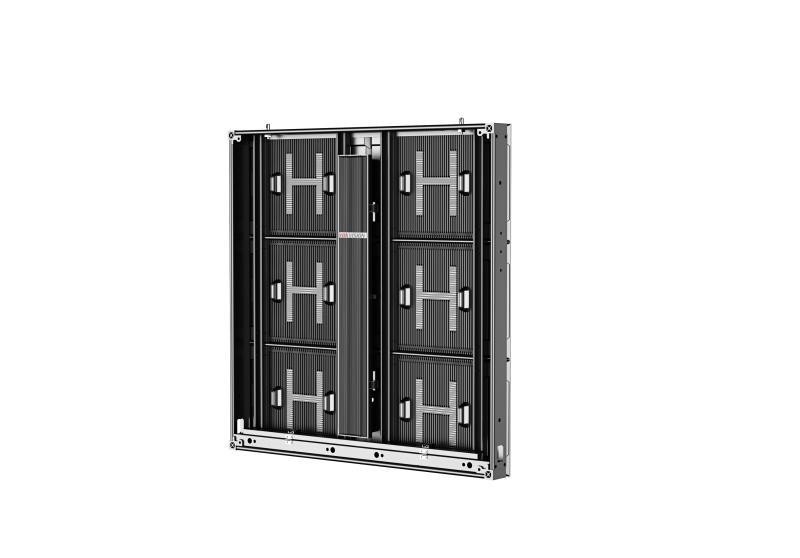

P10 Outdoor Fixel LED Display Unit

  • Support front and rear maintenance
  • Using aluminum chassis with good heat dissipation, workable under 65 °C
  • All series aluminum profile cabinets support IP67(F)/IP66(R)
  • Apply unique technology, maximally saving 50% energy
  • Various cabinet sizes, applying to diverse scenes
  • Multiple cabinet sizes availabl：960mm*960mm；800mm*900mm
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D42A0FO-GLF
DS-D42A0FO-GLF
Data Sheet

Specification

  • Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP10
  • Pixel Pitch10 mm
  • Modules ComponentAluminum Shell
  • Dimensions (W × H × D)960 mm × 960 mm × 97 mm
  • Resolution96 × 96
  • Weight30.4kg/㎡
  • Pixel Density10000 dots/m²
  • Cabinet MaterialAluminum Profile
  • Maintenance MethodFront/Back Maitence
  • Protection LevelIP67(F)/IP66(R)
  • Display
  • White Balance Brightness10000 cd/㎡
  • Color Temperature3000K-10000K
  • Viewing Angle160°(H)/120°(V)
  • Brightness Uniformity≧97%
  • Color Uniformity≤ ± 0.003Cx， Cy
  • Contrast Ratio12500:1
  • Processing Performance
  • Driving MethodConstant Current
  • Frame Frequency50/60HZ
  • Refresh Rate3840
  • Grey Level14bit
  • Power
  • Power Supply110~220 VAC ± 15%
  • Average Consumption＜ 200 W/㎡
  • Max. Consumption≤ 580 W/㎡
  • Working Environment
  • Working Temperature-30 to 65 °C
  • Working Humidity10% to 95% RH (without condensation)
  • Storage Temperature-35 to 65 °C
  • Storage Humidity10% to 95% RH (non-condensing)
  • General
  • Lifespan100000 Hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Cabinet
Pixel Configuration
SMD Triad LED
Pixel Pitch Category
P10
Pixel Pitch
10 mm
Modules Component
Aluminum Shell
Dimensions (W × H × D)
960 mm × 960 mm × 97 mm
Resolution
96 × 96
Weight
30.4kg/㎡
Pixel Density
10000 dots/m²
Cabinet Material
Aluminum Profile
Maintenance Method
Front/Back Maitence
Protection Level
IP67(F)/IP66(R)
Display
White Balance Brightness
10000 cd/㎡
Color Temperature
3000K-10000K
Viewing Angle
160°(H)/120°(V)
Brightness Uniformity
≧97%
Color Uniformity
≤ ± 0.003Cx， Cy
Contrast Ratio
12500:1
Processing Performance
Driving Method
Constant Current
Frame Frequency
50/60HZ
Refresh Rate
3840
Grey Level
14bit
Power
Power Supply
110~220 VAC ± 15%
Average Consumption
＜ 200 W/㎡
Max. Consumption
≤ 580 W/㎡
Working Environment
Working Temperature
-30 to 65 °C
Working Humidity
10% to 95% RH (without condensation)
Storage Temperature
-35 to 65 °C
Storage Humidity
10% to 95% RH (non-condensing)
General
Lifespan
100000 Hours
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP10
  • Pixel Pitch10 mm
  • Modules ComponentAluminum Shell
  • Dimensions (W × H × D)960 mm × 960 mm × 97 mm
  • Resolution96 × 96
  • Weight30.4kg/㎡
  • Pixel Density10000 dots/m²
  • Cabinet MaterialAluminum Profile
  • Maintenance MethodFront/Back Maitence
  • Protection LevelIP67(F)/IP66(R)
Display
  • White Balance Brightness10000 cd/㎡
  • Color Temperature3000K-10000K
  • Viewing Angle160°(H)/120°(V)
  • Brightness Uniformity≧97%
  • Color Uniformity≤ ± 0.003Cx， Cy
  • Contrast Ratio12500:1
Processing Performance
  • Driving MethodConstant Current
  • Frame Frequency50/60HZ
  • Refresh Rate3840
  • Grey Level14bit
Power
  • Power Supply110~220 VAC ± 15%
  • Average Consumption＜ 200 W/㎡
  • Max. Consumption≤ 580 W/㎡
Working Environment
  • Working Temperature-30 to 65 °C
  • Working Humidity10% to 95% RH (without condensation)
  • Storage Temperature-35 to 65 °C
  • Storage Humidity10% to 95% RH (non-condensing)
General
  • Lifespan100000 Hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
