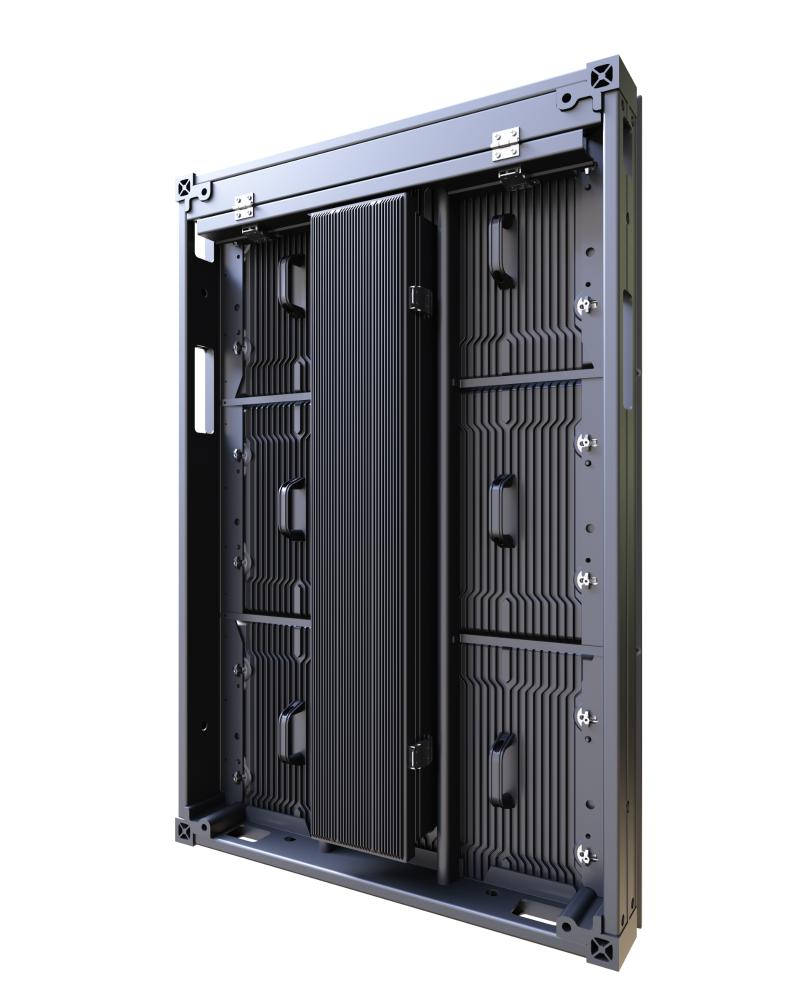

P3.9 Outdoor Fixel LED Display Unit

  • Support front and rear maintenance
  • Using aluminum chassis with good heat dissipation, workable under 65 °C
  • Apply unique technology, maximally saving 30% energy
  • Various cabinet sizes, applying to diverse scenes
View Less
View more
Sales Inquiry

Available models:

DS-D4239FO-GLFM
DS-D4239FO-GLFM

Specification

  • Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP3.91
  • Pixel Pitch3.91 mm
  • Modules ComponentAluminium Shell
  • Dimensions (W × H × D)500 mm × 750 mm × 96.7 mm
  • Resolution128 × 192
  • Weight33kg/㎡
  • Pixel Density65536 dots/m²
  • Cabinet MaterialAluminium Profile
  • Maintenance MethodFront/Back Maitence
  • Protection LevelIP67(F)/IP66(R)
  • Display
  • White Balance Brightness7500 cd/m²
  • Color Temperature3000K-10000K
  • Viewing Angle160°(H)/120°(V)
  • Brightness Uniformity≧97%
  • Color Uniformity≤ ± 0.003Cx， Cy
  • Contrast Ratio12500:1
  • Processing Performance
  • Driving MethodConstant Current
  • Frame Frequency50/60HZ
  • Refresh Rate3840
  • Grey Level14bit
  • Power
  • Average Consumption＜ 210 W/㎡
  • Max. Consumption≤ 650 W/㎡
  • Working Environment
  • Working Temperature-30℃-65 ℃
  • Working Humidity10% to 95% RH (non-condensing)
  • Storage Temperature-35℃~65℃
  • Storage Humidity10% to 95% RH (non-condensing)
  • General
  • Power Supply110~220 VAC ± 15%
  • Lifespan100000 Hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Cabinet
Pixel Configuration
SMD Triad LED
Pixel Pitch Category
P3.91
Pixel Pitch
3.91 mm
Modules Component
Aluminium Shell
Dimensions (W × H × D)
500 mm × 750 mm × 96.7 mm
Resolution
128 × 192
Weight
33kg/㎡
Pixel Density
65536 dots/m²
Cabinet Material
Aluminium Profile
Maintenance Method
Front/Back Maitence
Protection Level
IP67(F)/IP66(R)
Display
White Balance Brightness
7500 cd/m²
Color Temperature
3000K-10000K
Viewing Angle
160°(H)/120°(V)
Brightness Uniformity
≧97%
Color Uniformity
≤ ± 0.003Cx， Cy
Contrast Ratio
12500:1
Processing Performance
Driving Method
Constant Current
Frame Frequency
50/60HZ
Refresh Rate
3840
Grey Level
14bit
Power
Average Consumption
＜ 210 W/㎡
Max. Consumption
≤ 650 W/㎡
Working Environment
Working Temperature
-30℃-65 ℃
Working Humidity
10% to 95% RH (non-condensing)
Storage Temperature
-35℃~65℃
Storage Humidity
10% to 95% RH (non-condensing)
General
Power Supply
110~220 VAC ± 15%
Lifespan
100000 Hours
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP3.91
  • Pixel Pitch3.91 mm
  • Modules ComponentAluminium Shell
  • Dimensions (W × H × D)500 mm × 750 mm × 96.7 mm
  • Resolution128 × 192
  • Weight33kg/㎡
  • Pixel Density65536 dots/m²
  • Cabinet MaterialAluminium Profile
  • Maintenance MethodFront/Back Maitence
  • Protection LevelIP67(F)/IP66(R)
Display
  • White Balance Brightness7500 cd/m²
  • Color Temperature3000K-10000K
  • Viewing Angle160°(H)/120°(V)
  • Brightness Uniformity≧97%
  • Color Uniformity≤ ± 0.003Cx， Cy
  • Contrast Ratio12500:1
Processing Performance
  • Driving MethodConstant Current
  • Frame Frequency50/60HZ
  • Refresh Rate3840
  • Grey Level14bit
Power
  • Average Consumption＜ 210 W/㎡
  • Max. Consumption≤ 650 W/㎡
Working Environment
  • Working Temperature-30℃-65 ℃
  • Working Humidity10% to 95% RH (non-condensing)
  • Storage Temperature-35℃~65℃
  • Storage Humidity10% to 95% RH (non-condensing)
General
  • Power Supply110~220 VAC ± 15%
  • Lifespan100000 Hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
