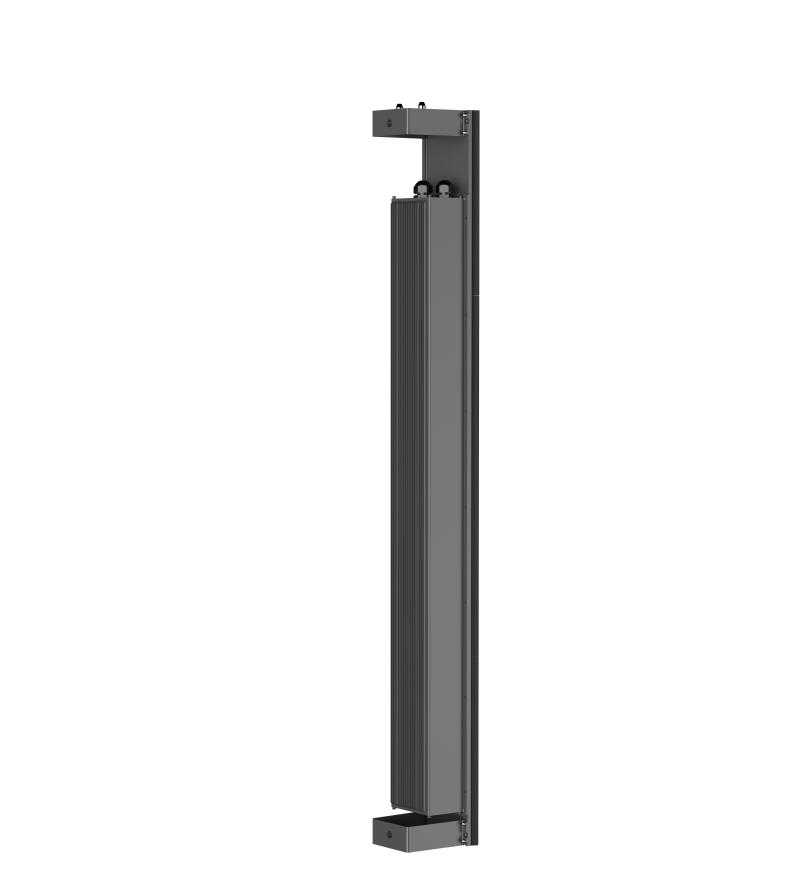

P3.9 Outdoor Fixel LED Display Unit

  • Support front and rear maintenance
  • Using aluminum chassis with good heat dissipation, workable under 60 °C
  • All series aluminum profile cabinets support front and rear IP66
  • Apply unique technology, maximally saving 30% energy
  • Various cabinet sizes, applying to diverse scenes
  • The cabinets support customized 45° corner cut to realize 90° right-angle splicing
View Less
View more
Sales Inquiry

Available models:

DS-D4239FO-GLFL/C
DS-D4239FO-GLFL/C

Specification

  • Cabinet
  • Pixel Configuration1R1G1B
  • Pixel Pitch CategoryP3.91
  • Pixel Pitch3.91mm
  • Modules ComponentPlastic bottom shell
  • Dimensions (W × H × D)125*1000*104
  • Resolution32*256
  • Area0.125
  • Weight5.3KG/PCS
  • Pixel Density8192
  • Lamp Board HousingYes
  • Cabinet MaterialAluminium Profile
  • Maintenance MethodBack Maitence
  • Cabinet Flatness0.8mm
  • Protection LevelIP67(F)/IP66(R)
  • Display
  • White Balance Brightness6000
  • Color Temperature3000K-10000K
  • Viewing Angle160°（H）/80°（V）
  • Brightness Uniformity≧95%
  • Color Uniformity≧95%
  • Contrast Ratio8000:1
  • Processing Performance
  • Driving MethodConstant Current
  • Frame Frequency50/60HZ
  • Refresh Rate3840
  • Grey Level14bit
  • Display ColorDCI-P3 ＞85%
  • Power
  • Power Supply110-220
  • Power Consumption≤ 650 W
  • Average Consumption210
  • Max. Consumption650
  • Working Environment
  • Working Temperature-40~+60℃
  • Working Humidity10% to 95% RH (non-condensing)
  • Storage Temperature-40~+80℃
  • Storage Humidity10% to 95% RH (non-condensing)
  • General
  • Package Dimensions (W × H × D)1050X570X300
  • Gross Weight30
  • Lifespan100000 Hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Cabinet
Pixel Configuration
1R1G1B
Pixel Pitch Category
P3.91
Pixel Pitch
3.91mm
Modules Component
Plastic bottom shell
Dimensions (W × H × D)
125*1000*104
Resolution
32*256
Area
0.125
Weight
5.3KG/PCS
Pixel Density
8192
Lamp Board Housing
Yes
Cabinet Material
Aluminium Profile
Maintenance Method
Back Maitence
Cabinet Flatness
0.8mm
Protection Level
IP67(F)/IP66(R)
Display
White Balance Brightness
6000
Color Temperature
3000K-10000K
Viewing Angle
160°（H）/80°（V）
Brightness Uniformity
≧95%
Color Uniformity
≧95%
Contrast Ratio
8000:1
Processing Performance
Driving Method
Constant Current
Frame Frequency
50/60HZ
Refresh Rate
3840
Grey Level
14bit
Display Color
DCI-P3 ＞85%
Power
Power Supply
110-220
Power Consumption
≤ 650 W
Average Consumption
210
Max. Consumption
650
Working Environment
Working Temperature
-40~+60℃
Working Humidity
10% to 95% RH (non-condensing)
Storage Temperature
-40~+80℃
Storage Humidity
10% to 95% RH (non-condensing)
General
Package Dimensions (W × H × D)
1050X570X300
Gross Weight
30
Lifespan
100000 Hours
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Cabinet
  • Pixel Configuration1R1G1B
  • Pixel Pitch CategoryP3.91
  • Pixel Pitch3.91mm
  • Modules ComponentPlastic bottom shell
  • Dimensions (W × H × D)125*1000*104
  • Resolution32*256
  • Area0.125
  • Weight5.3KG/PCS
  • Pixel Density8192
  • Lamp Board HousingYes
  • Cabinet MaterialAluminium Profile
  • Maintenance MethodBack Maitence
  • Cabinet Flatness0.8mm
  • Protection LevelIP67(F)/IP66(R)
Display
  • White Balance Brightness6000
  • Color Temperature3000K-10000K
  • Viewing Angle160°（H）/80°（V）
  • Brightness Uniformity≧95%
  • Color Uniformity≧95%
  • Contrast Ratio8000:1
Processing Performance
  • Driving MethodConstant Current
  • Frame Frequency50/60HZ
  • Refresh Rate3840
  • Grey Level14bit
  • Display ColorDCI-P3 ＞85%
Power
  • Power Supply110-220
  • Power Consumption≤ 650 W
  • Average Consumption210
  • Max. Consumption650
Working Environment
  • Working Temperature-40~+60℃
  • Working Humidity10% to 95% RH (non-condensing)
  • Storage Temperature-40~+80℃
  • Storage Humidity10% to 95% RH (non-condensing)
General
  • Package Dimensions (W × H × D)1050X570X300
  • Gross Weight30
  • Lifespan100000 Hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
