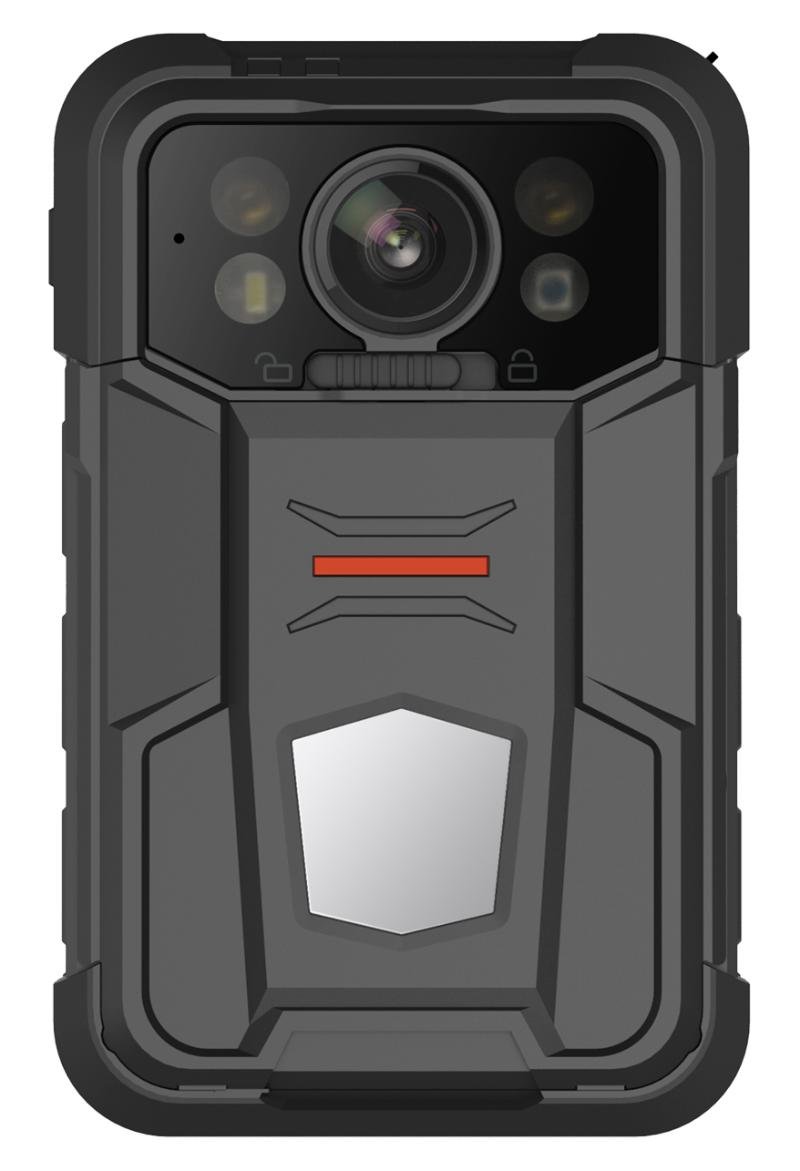

Android 5G Dismountable Battery Body Camera

  • 2K recording.
  • Max. 40 M (8832 × 4960) resolution of the captured picture.
  • Transmits videos to central video platform via 5G wireless communication.
  • Dual positioning modules of GPS and Beidou, uploading the location information to the center in real time.
  • IR function to recognize the facial features in the captured picture even in dim environment.
  • Waterproof, dustproof, and anti-fall with 1.8 m fall protection height, applicable to all-day field work.
  • 3G/4G/5G/Wi-Fi network connection with flexible wireless transmission.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-MH2311/64G/5G(C)
DS-MH2311/5G(C)
Data Sheet

Specification

  • Kamera
  • Image Sensor 1/3" progressive scan CMOS
  • Max. Recording Resolution2560 × 1440
  • Min. IlluminationColor: 0.15 Lux @ (F2.0, AGC ON), 0 Lux with supplement light
  • Day & NightSwitch IR cut filter automatically
  • White LightSupported
  • Zoom4 × digital
  • Lens
  • Aperture F2.2
  • FOVHorizontal FOV: 134°, Vertical FOV: 75°, Diagonal FOV: 154°
  • Focal Length 2.4 mm fixed lens
  • Video
  • Main Stream 60 Hz: 30 fps (2560× 1440,1920 × 1080, 1280 × 720, 720 × 576)
  • Pre-record & Post-recordPre-record: 60/10/5/3 s, Post-record: 60/10/5/3 s
  • Sub-Stream30 fps (1920 × 1080, 1280 × 720, 720 × 576)
  • Video CompressionH.264,H.265
  • Video FormatMP4,PS
  • Audio
  • Audio Bit RateG722(16 kbps) ,AAC(dynamic),PCM(256 kbps),G711.A(64 kbps) ,G711.U(64 kbps)
  • Audio Compression for Video RecordingG722,AAC
  • Audio Compression for Audio RecordingPCM
  • Audio Compression for Group IntercomG711.A,G711.U,G722
  • Image
  • Image FormatJPEG
  • Screen
  • Display Resolution320 × 240
  • Screen Size2.4"
  • TouchscreenSupported
  • Storage
  • RAM4 GB
  • ROMEMMC 64 GB
  • IR
  • IR RangeUp to 10 m
  • IR Wavelength850 nm
  • Wireless Network
  • BluetoothBT5.1
  • Cellular NetworkTDD-LTE: B34/B38/B39/B40/B41, TDD-LTE: B1/B3/B5/B8, WCDMA: B1/B8, GSM: 900/1800,5G NR SA: N1/N28/N41/ N78/ N79,5G NR NSA: N41/N78/N79
  • Positioning ModeGPS
  • Wi-Fi Frequency Band2.412 to 2.472 GHz
  • Wi-Fi Protocol 802.11b/g/n
  • Network
  • APISDK,ISAPI,ISUP
  • ProtocolNTP,RTSP,RTP,TCP/IP,UDP,DHCP,IPv4
  • Interface
  • ButtonPower,Video recording,Audio recording,Picture capture,PTT,SOS
  • Charging InterfaceType-C, Pogo Pin
  • Indicator2 indicator(s) for charging/working/recording/exception
  • Laser Positioning Not supported
  • SIM CardSIM card slot(fit for nano-SIM card)
  • USB1 USB 2.0 port(s)
  • Audio Type1 built-in mic(s)
  • General
  • ClientHikCentral Pro,HikCentral Master
  • Dimensions95 mm × 60 mm × 31.52 mm (3.74" × 2.36" × 1.24")
  • Operating Condition-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
  • Operating SystemAndroid 11.0
  • Power5 VDC, 2.0 A, max. 10 W
  • Speaker1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 92 dB (10 cm)
  • Weight190 g (without mounting) (0.42 lb.)
  • Battery
  • Battery TypeLithium-ion battery, dismountable
  • Capacity3300 mAh
  • Charging Time≤ 4 h
  • Battery Life Up to 12h in 720p resolution¹
  • Approval
  • EMCCE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014
  • EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013,MIL STD 810G
  • RFEN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014)
  • SafetyCB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
