Mega-pixel Auto-Iris Lens

  • CCTV Camera Lens
  • Auto-Iris
  • IR
View Less
View more
Data Sheet
Sales Inquiry

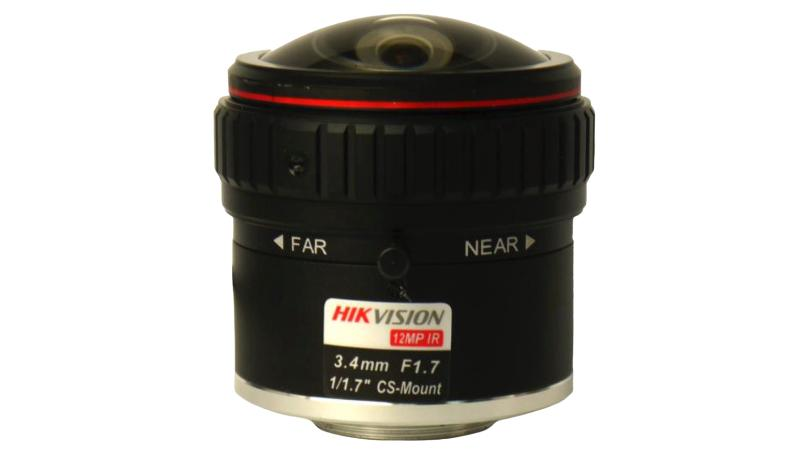

HF3417D-12MPIR
Data Sheet

Specification

  • Parameters
  • Weight191.6g
  • DimensionΦ48.6*47.03mm
  • SpecificationFixed-focal DC Auto Iris12MP IR
  • Focal length3.4mm
  • MountCS-Mount
  • F numberF1.7-C
  • Flange Back Length12.5mm
  • Max. Image formatΦ9.6mm（1/1.7"）
  • M.O.D0.1m
  • OperatingTemperature-20~60℃
  • Control
  • IrisDC Auto Iris
  • FocusManual
  • ZoomFixed
  • Field of View
  • Diagonal1/1.7":167° 1/2":144.3°
  • Horizontal1/1.7":129.6° 1/2":123.9°
  • Vertical1/1.7":95.7° 1/2":67.6°
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
