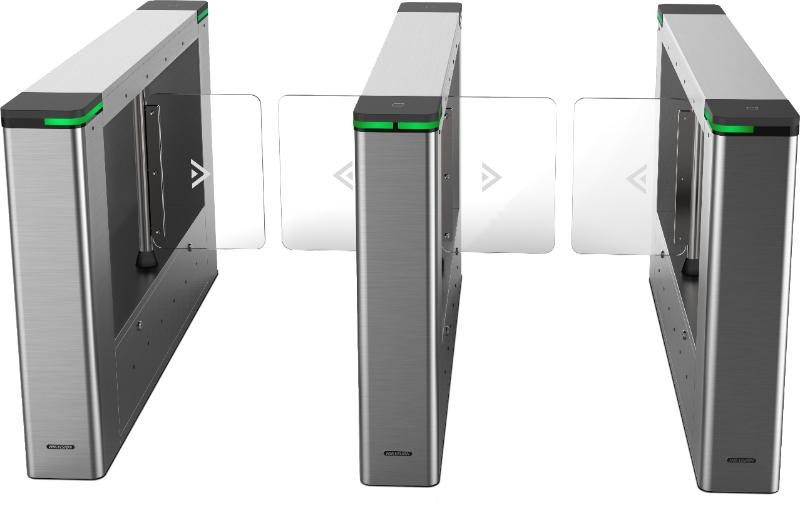

Pro Swing Barriers

12 pairs of IR light detectors: Permissions validation and anti-tailgating
LED light indicates passing direction
Audible and visual nipping alarm: The barrier will stop working for a period of time when detecting obstruction when open/close barrier
Self-detection, Self-diagnostics, and automatic alarm
Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered.
Barrier is in free status when powering down

View Less

Data Sheet

Available models:

DS-K3B501S-M/E-Dp65

DS-K3B501SX-L/M

DS-K3B501SX-M/M

DS-K3B501SX-R/M

DS-K3B501SX

Specification
Resources
Accessories

Data Sheet

System
MCBF＞6 million times
MotorServo motor

Interface
Network interfaceTCP/IP
RS-4854
RS-2324
Lock control2
Alarm input2
Alarm output2

Capacity
Card capacity60,000
Event capacity180,000

General
Throughput20 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
Power supply method100 to 240 VAC; 50 to 60 Hz
IR light detectors12 pairs
Lane width550 mm to 1100 mm (21.65" to 43.31")
Working temperature-25 °C to 65 °C (-13 °F to 149 °F)
Barrier materialStainless steel pipe; Acrylic
Working humidity10% to 95% (No Condensing)
DimensionsWithout packaging: 1500 mm × 200 mm × 960 mm (59.06" × 7.87" × 37.80") With packaging: 1610 mm × 300 mm × 1100 mm (63.39" × 11.81" × 43.31")
Pedestal materialSUS304 stainless steel 1.2 mm(0.05")
Application environmentIndoor and outdoor
Protective levelIPX4 (proved by Hikvision laboratory)
WeightWithout packaging: 56 kg (left and right)/71 kg (middle) (123 lb/157 lb) With packaging: 86 kg (left and right)/100 kg (middle) (190 lb/221 lb)
ApprovalCE/FCC/CB/RoHS/REACH/WEEE

Configuration
Module selectionYES
Authentication modeCard;Face
Card typeEM;M1
Wall distance10mm
Lane width550,650,750,900,1100
Recommended width650
Pedestal width200mm
Pedestal length1500mm
Barrier materialAcrylic glass
BaseYES
Base modelDS-K3B601-BASE
Remote controller type433Mhz;868Mhz
Product typeSwing barrier

System

MCBF

＞6 million times

Motor

Servo motor

Interface

Network interface

TCP/IP

RS-485

RS-232

Lock control

Alarm input

Alarm output

Capacity

Card capacity

60,000

Event capacity

180,000

General

Throughput

20 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.

Power supply method

100 to 240 VAC; 50 to 60 Hz

IR light detectors

12 pairs

Lane width

550 mm to 1100 mm (21.65" to 43.31")

Working temperature

-25 °C to 65 °C (-13 °F to 149 °F)

Barrier material

Stainless steel pipe; Acrylic

Working humidity

10% to 95% (No Condensing)

Dimensions

Without packaging: 1500 mm × 200 mm × 960 mm (59.06" × 7.87" × 37.80") With packaging: 1610 mm × 300 mm × 1100 mm (63.39" × 11.81" × 43.31")

Pedestal material

SUS304 stainless steel 1.2 mm(0.05")

Application environment

Indoor and outdoor

Protective level

IPX4 (proved by Hikvision laboratory)

Weight

Without packaging: 56 kg (left and right)/71 kg (middle) (123 lb/157 lb) With packaging: 86 kg (left and right)/100 kg (middle) (190 lb/221 lb)

Approval

CE/FCC/CB/RoHS/REACH/WEEE

Configuration

Module selection

YES

Authentication mode

Card;Face

Card type

EM;M1

Wall distance

10mm

Lane width

550,650,750,900,1100

Recommended width

650

Pedestal width

200mm

Pedestal length

1500mm

Barrier material

Acrylic glass

Base

YES

Base model

DS-K3B601-BASE

Remote controller type

433Mhz;868Mhz

Product type

Swing barrier

System

MCBF＞6 million times
MotorServo motor

Interface

Network interfaceTCP/IP
RS-4854
RS-2324
Lock control2
Alarm input2
Alarm output2

Capacity

Card capacity60,000
Event capacity180,000

General

Throughput20 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
Power supply method100 to 240 VAC; 50 to 60 Hz
IR light detectors12 pairs
Lane width550 mm to 1100 mm (21.65" to 43.31")
Working temperature-25 °C to 65 °C (-13 °F to 149 °F)
Barrier materialStainless steel pipe; Acrylic
Working humidity10% to 95% (No Condensing)
DimensionsWithout packaging: 1500 mm × 200 mm × 960 mm (59.06" × 7.87" × 37.80") With packaging: 1610 mm × 300 mm × 1100 mm (63.39" × 11.81" × 43.31")
Pedestal materialSUS304 stainless steel 1.2 mm(0.05")
Application environmentIndoor and outdoor
Protective levelIPX4 (proved by Hikvision laboratory)
WeightWithout packaging: 56 kg (left and right)/71 kg (middle) (123 lb/157 lb) With packaging: 86 kg (left and right)/100 kg (middle) (190 lb/221 lb)
ApprovalCE/FCC/CB/RoHS/REACH/WEEE
