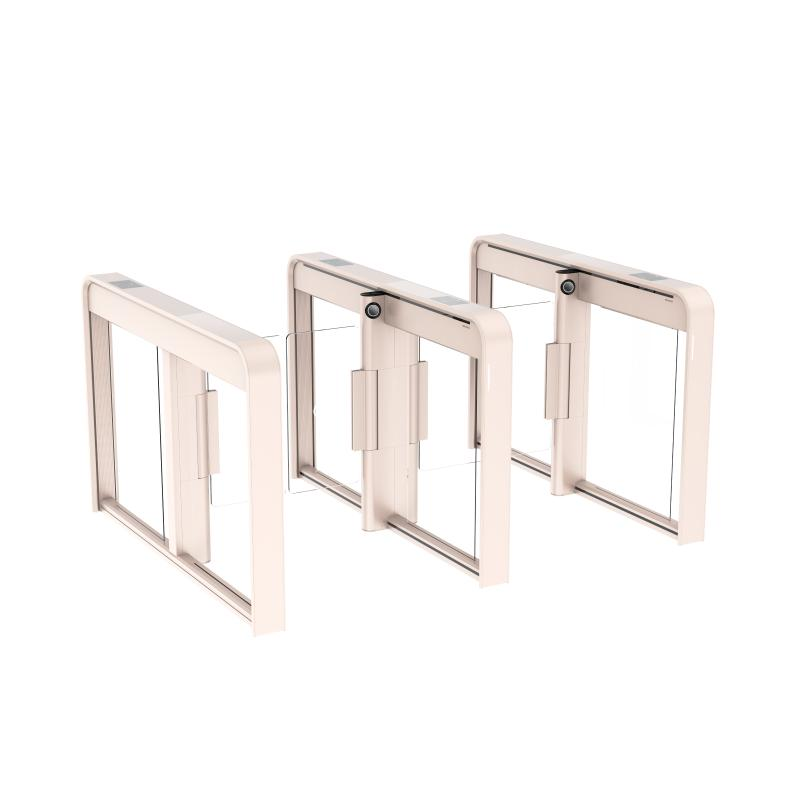

Smart Pro Swing Barriers

  • Aluminum alloy material with optional color (silver and rose gold).
  • 7-inch display screen and built-in face recognition camera.
  • Supports palm & vein or QR recognition (optional).
  • Support PC & Mobile web configuration and self-diagnosis for maintenance.
  • AP mode function for mobile phones (Android) to access more easily by a simple touch via NFC tag.
  • Fire linkage: When the fire signal is triggered, the barrier will be open automatically for emergency evacuation.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K6B630TDLX-L
DS-K6B630TDLX-M
DS-K6B630TDLX-R
DS-K6B630TMPQLX-L
DS-K6B630TMPQLX-M
DS-K6B630TMPQLX-R
DS-K6B630TDX
Data Sheet

Specification

  • System
  • MotorServo motor
  • MCBF≥ 11 million times
  • BrakeSupport
  • Door open duration5 to 60 sec
  • dToF sensor12
  • Display
  • Screen size6.95-inch
  • Operation methodDisplay screen
  • TypeIPS screen
  • Resolution600 × 1024
  • Video
  • LensPrime Lens
  • Video compression standardH.264
  • Resolution2 MP
  • FOVHorizontal: 59° Vertical: 108°
  • WDRSupport
  • Video standardPAL by default, support NTSC
  • Focal length2.8mm
  • ApertureF1.6
  • Audio
  • Audio compression standardG.711U
  • Audio compression bitrate16 Kbps
  • Audio outputSupport
  • Volume adjustmentSupport
  • Power output5.5W
  • Network
  • Wired networkSupport,10M/100M
  • Wi-FiFor AP mode only
  • Interface
  • Network interface1
  • Exit buttonMain: 1 Sub: 1
  • Alarm output4
  • Fire alarm input1
  • Case input2
  • Hardware
  • Access controllerSupport
  • SupercapacitorSupport
  • Network switchNot supplied
  • Capacity
  • Face capacity100,000
  • Card capacity500,000
  • Event capacity1000,000
  • Palm print and palm vein capacity10,000
  • Authentication
  • Face recognition distance0 m to 2 m
  • Face recognition accuracy rate＞99%
  • Face recognition duration＜200 ms
  • CardM1 or Desfire card
  • Card reading frequency13.56 MHz
  • Card reading distance3cm
  • Card reading duration＜1s
  • Function
  • Configuration via PC WebSupport
  • Configuration via mobile WebSupport
  • Hik-ConnectSupport
  • Multi-factor authenticationSupport
  • Face anti-spoofingSupport
  • Face mask recognitionSupport
  • Built-in face recognitionSupport
  • Communication protocolISAPI
  • KeyfobSupport, 433 MHz/868 MHz, within 50 m
  • General
  • Lane width550 mm to 1100 mm (21.7" to 43.3")
  • Barrier material10 mm acrylic glass
  • Pedestal materialAluminium alloy
  • IndicatorLane status indicator, barrier light
  • Power consumptionStandby: 70 W Working: 180 W Peak: 280 W
  • Working temperature -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 95% (No condensing)
  • Protective levelIP40
  • DimensionsWithout package: 1550 mm × 120 mm × 1002 mm (61.02" × 4.72" × 39.45") With package: 1760 mm × 500 mm × 1225 mm (69.30" × 19.69" × 48.23")
  • WeightNet: Left: 34.19 kg (75.375 lb) Middle: 42.46 kg (93.6 lb) Right: 34.76 kg(76.63 lb) Gross: Left: 62.91 kg (138.7 lb) Middle: 71.52 kg (157.67 lb) Right: 63.58 kg (140.17 lb)
  • Power supply method100 to 240 VAC~, 50/60 Hz, 1.6A
  • ColorRose gold
  • LanguageEnglish, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine
  • Interconnecting cable length5.5m
  • Configuration
  • Module selectionNO
  • Application environmentindoor
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Motor
Servo motor
MCBF
≥ 11 million times
Brake
Support
Door open duration
5 to 60 sec
dToF sensor
12
Display
Screen size
6.95-inch
Operation method
Display screen
Type
IPS screen
Resolution
600 × 1024
Video
Lens
Prime Lens
Video compression standard
H.264
Resolution
2 MP
FOV
Horizontal: 59° Vertical: 108°
WDR
Support
Video standard
PAL by default, support NTSC
Focal length
2.8mm
Aperture
F1.6
Audio
Audio compression standard
G.711U
Audio compression bitrate
16 Kbps
Audio output
Support
Volume adjustment
Support
Power output
5.5W
Network
Wired network
Support,10M/100M
Wi-Fi
For AP mode only
Interface
Network interface
1
Exit button
Main: 1 Sub: 1
Alarm output
4
Fire alarm input
1
Case input
2
Hardware
Access controller
Support
Supercapacitor
Support
Network switch
Not supplied
Capacity
Face capacity
100,000
Card capacity
500,000
Event capacity
1000,000
Palm print and palm vein capacity
10,000
Authentication
Face recognition distance
0 m to 2 m
Face recognition accuracy rate
＞99%
Face recognition duration
＜200 ms
Card
M1 or Desfire card
Card reading frequency
13.56 MHz
Card reading distance
3cm
Card reading duration
＜1s
Function
Configuration via PC Web
Support
Configuration via mobile Web
Support
Hik-Connect
Support
Multi-factor authentication
Support
Face anti-spoofing
Support
Face mask recognition
Support
Built-in face recognition
Support
Communication protocol
ISAPI
Keyfob
Support, 433 MHz/868 MHz, within 50 m
General
Lane width
550 mm to 1100 mm (21.7" to 43.3")
Barrier material
10 mm acrylic glass
Pedestal material
Aluminium alloy
Indicator
Lane status indicator, barrier light
Power consumption
Standby: 70 W Working: 180 W Peak: 280 W
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working humidity
10% to 95% (No condensing)
Protective level
IP40
Dimensions
Without package: 1550 mm × 120 mm × 1002 mm (61.02" × 4.72" × 39.45") With package: 1760 mm × 500 mm × 1225 mm (69.30" × 19.69" × 48.23")
Weight
Net: Left: 34.19 kg (75.375 lb) Middle: 42.46 kg (93.6 lb) Right: 34.76 kg(76.63 lb) Gross: Left: 62.91 kg (138.7 lb) Middle: 71.52 kg (157.67 lb) Right: 63.58 kg (140.17 lb)
Power supply method
100 to 240 VAC~, 50/60 Hz, 1.6A
Color
Rose gold
Language
English, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine
Interconnecting cable length
5.5m
Configuration
Module selection
NO
Application environment
indoor
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System
  • MotorServo motor
  • MCBF≥ 11 million times
  • BrakeSupport
  • Door open duration5 to 60 sec
  • dToF sensor12
Display
  • Screen size6.95-inch
  • Operation methodDisplay screen
  • TypeIPS screen
  • Resolution600 × 1024
Video
  • LensPrime Lens
  • Video compression standardH.264
  • Resolution2 MP
  • FOVHorizontal: 59° Vertical: 108°
  • WDRSupport
  • Video standardPAL by default, support NTSC
  • Focal length2.8mm
  • ApertureF1.6
Audio
  • Audio compression standardG.711U
  • Audio compression bitrate16 Kbps
  • Audio outputSupport
  • Volume adjustmentSupport
  • Power output5.5W
Network
  • Wired networkSupport,10M/100M
  • Wi-FiFor AP mode only
Interface
  • Network interface1
  • Exit buttonMain: 1 Sub: 1
  • Alarm output4
  • Fire alarm input1
  • Case input2
Hardware
  • Access controllerSupport
  • SupercapacitorSupport
  • Network switchNot supplied
Capacity
  • Face capacity100,000
  • Card capacity500,000
  • Event capacity1000,000
  • Palm print and palm vein capacity10,000
Authentication
  • Face recognition distance0 m to 2 m
  • Face recognition accuracy rate＞99%
  • Face recognition duration＜200 ms
  • CardM1 or Desfire card
  • Card reading frequency13.56 MHz
  • Card reading distance3cm
  • Card reading duration＜1s
Function
  • Configuration via PC WebSupport
  • Configuration via mobile WebSupport
  • Hik-ConnectSupport
  • Multi-factor authenticationSupport
  • Face anti-spoofingSupport
  • Face mask recognitionSupport
  • Built-in face recognitionSupport
  • Communication protocolISAPI
  • KeyfobSupport, 433 MHz/868 MHz, within 50 m
General
  • Lane width550 mm to 1100 mm (21.7" to 43.3")
  • Barrier material10 mm acrylic glass
  • Pedestal materialAluminium alloy
  • IndicatorLane status indicator, barrier light
  • Power consumptionStandby: 70 W Working: 180 W Peak: 280 W
  • Working temperature -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 95% (No condensing)
  • Protective levelIP40
  • DimensionsWithout package: 1550 mm × 120 mm × 1002 mm (61.02" × 4.72" × 39.45") With package: 1760 mm × 500 mm × 1225 mm (69.30" × 19.69" × 48.23")
  • WeightNet: Left: 34.19 kg (75.375 lb) Middle: 42.46 kg (93.6 lb) Right: 34.76 kg(76.63 lb) Gross: Left: 62.91 kg (138.7 lb) Middle: 71.52 kg (157.67 lb) Right: 63.58 kg (140.17 lb)
  • Power supply method100 to 240 VAC~, 50/60 Hz, 1.6A
  • ColorRose gold
  • LanguageEnglish, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine
  • Interconnecting cable length5.5m
Configuration
  • Module selectionNO
  • Application environmentindoor
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
