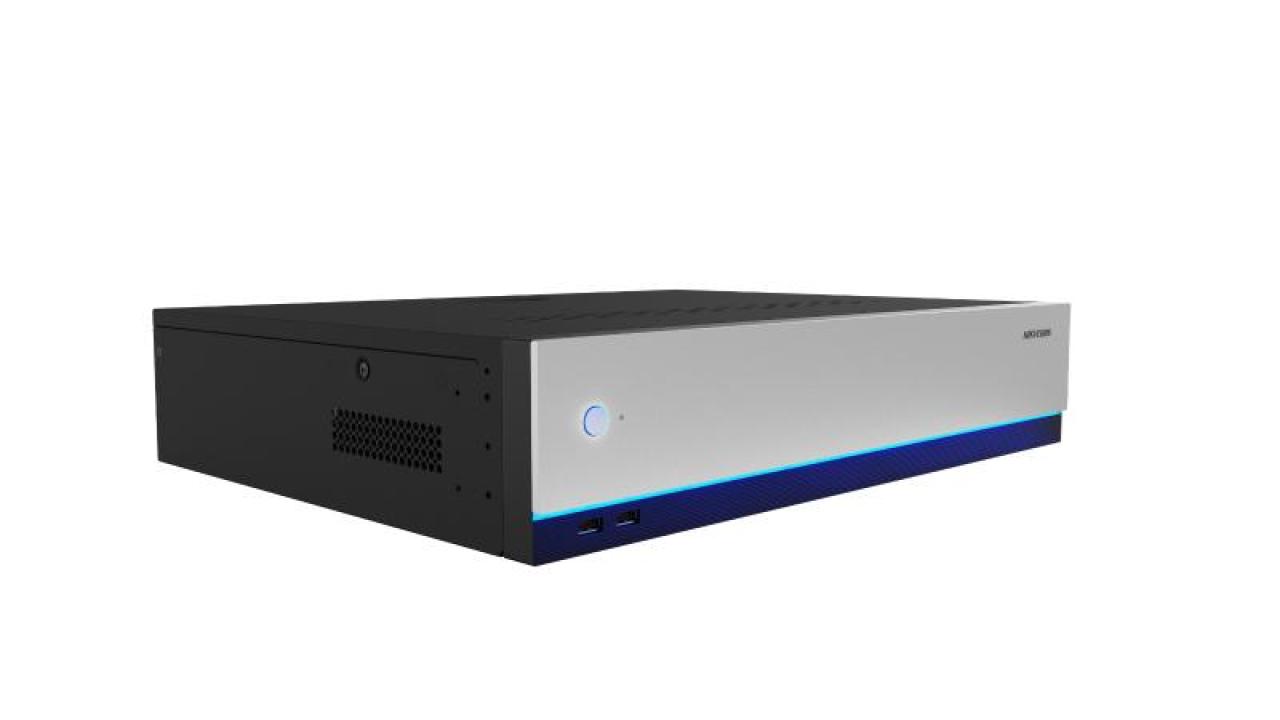

Intelligent security analyzer

Intelligent recognition technology is a deep learning recognition algorithm with full independent intellectual property rights, which realizes the integration of intelligent recognition algorithm and X-ray imaging software, and achieves better recognition effect
4-ch network camera input. Supports the correlating passenger and package, and operator analysis
Data storage supports local storage, view and playback of the images and alarm information, realizing playback and tracing of security check information and other applications. It has large storage capacity, supports millions of pictures, and defaults to one month of video recording (6 channels and 4 meters fixed rate)
The security network supports the connection of multi-functional security check machines frThe security network supports the connection of multi-functional security check machines from mainstream manufacturers and the real-time uploading platform of security data. The platform can combine video surveillance to realize information fusion
Customs users requirements with uploading samples to the AI platform and the platform inverted mold training to obtain the exclusive identification model and issue the algorithm

View Less

Data Sheet

Available models:

ISD-ST204D-DHV(V2)

ISD-ST204D-DHV

Specification
Resources
Accessories

Data Sheet

Dimension Parameters
Appearance and Dimension 440mm x 90mm x 340mm (W x H x D)

Specification Parameters
Consumption≤50 W
Operating Temperature0℃ to 55℃
PowerAC110~240V（+10%~-15%），50Hz±3Hz
Weight6.6kg

Device Interface
Network Interface7
USB Interface2
Video InputVGA/HDMI:2 Groups (HDMI has the priority)
Vidoe OutputVGA/HDMI:2 Groups
Alram Input2 ch
Alram Output3 ch
HDDBuilt-in 4 TB 3.5”, SATA ( 12TB extendable)
Serial Port1, Standard RS-232 full duplex serial port 1, Standard RS-485 half-duplex serial port

Performance Parameters
Network Camera4-ch IPC

Communication Protocol
ProtocoleHome, HIKSDK

Smart Analysis
Analyzation Channel1 ch Front angle of view, 1 ch side of view
Prohibited Goods Classification50 classes in 15 major types
Prohibited Goods TypeGun, cutter, spray irrigation, bottle of liquid, umbrella, battery, laptop, lighter, and fireworks

Dimension Parameters

Appearance and Dimension

440mm x 90mm x 340mm (W x H x D)

Specification Parameters

Consumption

≤50 W

Operating Temperature

0℃ to 55℃

Power

AC110~240V（+10%~-15%），50Hz±3Hz

Weight

6.6kg

Device Interface

Network Interface

USB Interface

Video Input

VGA/HDMI:2 Groups (HDMI has the priority)

Vidoe Output

VGA/HDMI:2 Groups

Alram Input

2 ch

Alram Output

3 ch

HDD

Built-in 4 TB 3.5”, SATA ( 12TB extendable)

Serial Port

1, Standard RS-232 full duplex serial port 1, Standard RS-485 half-duplex serial port

Performance Parameters

Network Camera

4-ch IPC

Communication Protocol

Protocol

eHome, HIKSDK

Smart Analysis

Analyzation Channel

1 ch Front angle of view, 1 ch side of view

Prohibited Goods Classification

50 classes in 15 major types

Prohibited Goods Type

Gun, cutter, spray irrigation, bottle of liquid, umbrella, battery, laptop, lighter, and fireworks
