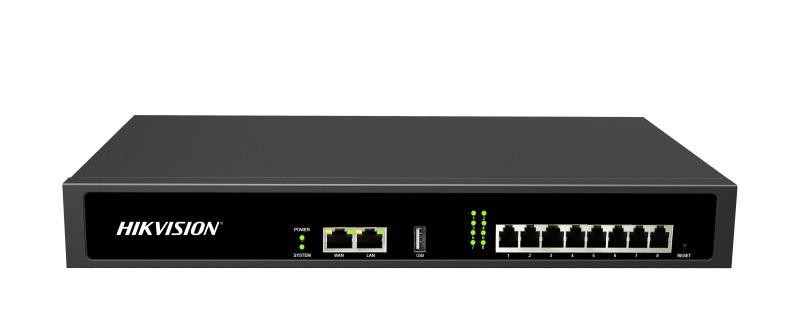

SIP Server

  • Embedded operating system SIP server
  • Up to 50 linked SIP extension, 25 concurrent calls
  • Dual 10/100/1000 Mbps network ports
  • FXS/FXO/BRI ports supported (optional expansion modules are required)
  • GSM/3G/4G modules supported (optional)
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KS6150
DS-KS6150
Data Sheet

Specification

  • Video parameters
  • Video codecsVP8, H263, H263P, H264, MPEG4
  • Audio parameters
  • Audio codecsG711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC
  • Capacity
  • Base Users / Max Users50
  • Max Concurrent Calls25
  • Max FXS Ports8 RJ11 ports
  • Max FXO/BRI Ports8 RJ11 ports
  • Max GSM/3G/4G Ports4
  • Max E1/T1/J1 PortsNot supported
  • Linked SIP extension50
  • Network parameters
  • Network protocolUDP, TCP, TLS, SRTP
  • DTMFIn-band, RFC4733, RFC2833, SIP INFO
  • Device interfaces
  • Network interface1xLAN(10/100/1000 Mbps) 1xWAN (10/100/1000 Mbps)
  • USBUSB2.0
  • Power supply inputAC 100-240V 50/60HZ 0.6A max
  • Hard DiskNot supported
  • SD cardNot supported
  • RJ11 port8 (Max 8 FXS Ports or 8 FXO/BRI Ports)
  • General
  • Weight1.48KG
  • Working temperature0 °C to 40 °C (32 °F to 104 °F)
  • Storage temperature-20°C to 65°C (-4°F to 149°F)
  • Working humidity10% to 90% (no-condensing)
  • Dimension (W × H × D)340 mm × 210 mm × 44 mm (13.39" × 8.27" × 1.74")
  • Power consumption≤ 3.3 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video parameters
Video codecs
VP8, H263, H263P, H264, MPEG4
Audio parameters
Audio codecs
G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC
Capacity
Base Users / Max Users
50
Max Concurrent Calls
25
Max FXS Ports
8 RJ11 ports
Max FXO/BRI Ports
8 RJ11 ports
Max GSM/3G/4G Ports
4
Max E1/T1/J1 Ports
Not supported
Linked SIP extension
50
Network parameters
Network protocol
UDP, TCP, TLS, SRTP
DTMF
In-band, RFC4733, RFC2833, SIP INFO
Device interfaces
Network interface
1xLAN(10/100/1000 Mbps) 1xWAN (10/100/1000 Mbps)
USB
USB2.0
Power supply input
AC 100-240V 50/60HZ 0.6A max
Hard Disk
Not supported
SD card
Not supported
RJ11 port
8 (Max 8 FXS Ports or 8 FXO/BRI Ports)
General
Weight
1.48KG
Working temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage temperature
-20°C to 65°C (-4°F to 149°F)
Working humidity
10% to 90% (no-condensing)
Dimension (W × H × D)
340 mm × 210 mm × 44 mm (13.39" × 8.27" × 1.74")
Power consumption
≤ 3.3 W
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video parameters
  • Video codecsVP8, H263, H263P, H264, MPEG4
Audio parameters
  • Audio codecsG711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC
Capacity
  • Base Users / Max Users50
  • Max Concurrent Calls25
  • Max FXS Ports8 RJ11 ports
  • Max FXO/BRI Ports8 RJ11 ports
  • Max GSM/3G/4G Ports4
  • Max E1/T1/J1 PortsNot supported
  • Linked SIP extension50
Network parameters
  • Network protocolUDP, TCP, TLS, SRTP
  • DTMFIn-band, RFC4733, RFC2833, SIP INFO
Device interfaces
  • Network interface1xLAN(10/100/1000 Mbps) 1xWAN (10/100/1000 Mbps)
  • USBUSB2.0
  • Power supply inputAC 100-240V 50/60HZ 0.6A max
  • Hard DiskNot supported
  • SD cardNot supported
  • RJ11 port8 (Max 8 FXS Ports or 8 FXO/BRI Ports)
General
  • Weight1.48KG
  • Working temperature0 °C to 40 °C (32 °F to 104 °F)
  • Storage temperature-20°C to 65°C (-4°F to 149°F)
  • Working humidity10% to 90% (no-condensing)
  • Dimension (W × H × D)340 mm × 210 mm × 44 mm (13.39" × 8.27" × 1.74")
  • Power consumption≤ 3.3 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
