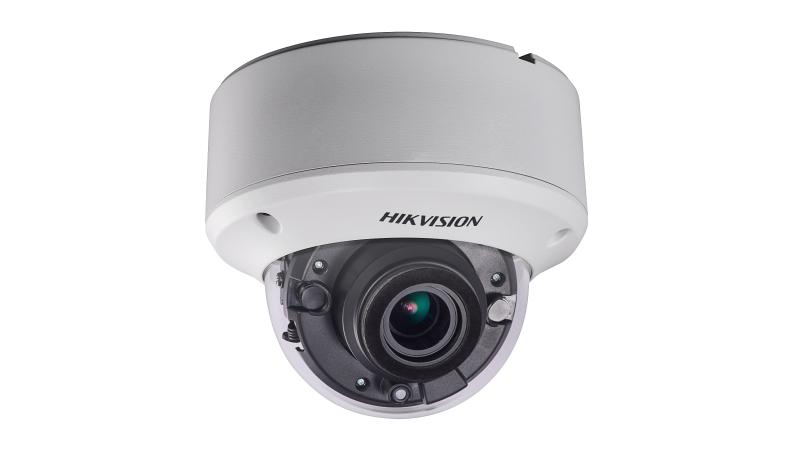

4K Vandal Motorized Varifocal Dome Camera

  • 8 MP high performance dome camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 60 m IR distance
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Dual outputs (HDTVI and CVBS signals output simultaneously)

Specification
  • Camera
  • Image Sensor8.29 megapixel progressive scan CMOS
  • Max. Resolution3840 (H) × 2160 (V)
  • Min. IlluminationColor: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/12.5 s to 1/10,000 s ,NTSC: 1/15 s to 1/10,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°
  • Signal SystemPAL/NTSC
  • Slow ShutterMax. 16 times
  • Lens
  • Lens Type2.8 mm to 12 mm motorized vari-focal lens
  • Focal Length & FOV108.1° to 45.6°
  • Lens MountΦ14
  • Image
  • Image SettingsContrast, Sharpness, Saturation, Mirror, Defog, HLC
  • Frame RatePAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC
  • Privacy MaskON/OFF, 4 programmable privacy masks
  • Noise ReductionLevel 1 to 10
  • White BalanceAuto/Manual/Natural
  • AGCSupport
  • Interface
  • Video OutputTVI&CVBS
  • General
  • MaterialMetal
  • DimensionΦ 145.2 mm × 124.1 mm (Φ 5.72" × 4.89" )
  • Approx. 645 g (1.42 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • LanguageEnglish
  • Power Supply12 VDC±25%, 24 VAC±25% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 10.5 W
  • IR RangeUp to 60 m
  • Approval
  • ProtectionIP67, IK10
