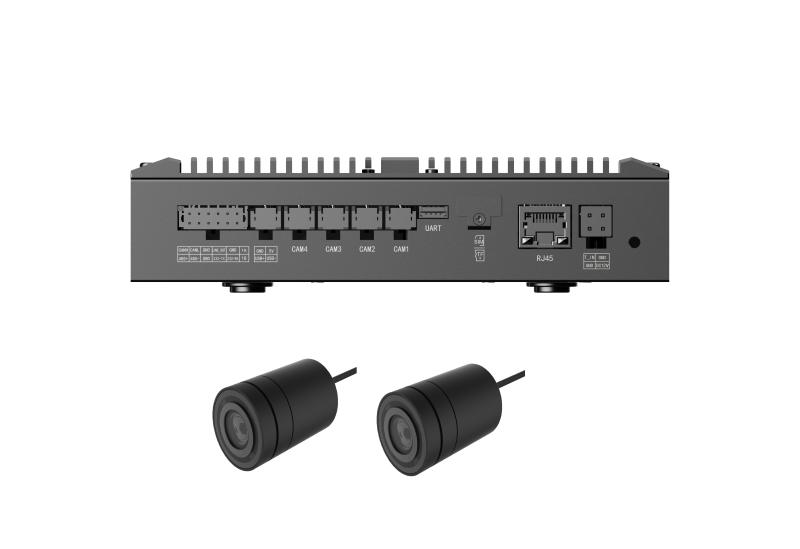

Mobile Patrol ANPR System

Support vehicle capture and driving video
Equipped with RS485, RS232, line out, USB, RJ45 and CAN bus interfaces
The camera and peripherals are connected through molex connectors, ensuring a stable and reliable connection
Supports internal storage and 1 additional memory card slot
Support 4G and WiFi wireless modules to meet network transmission needs during mobile operations.
The metal shell of the camera have IP67 level protection, and have good adaptability to the working environment of the vehicle
Built-in GPS high sensitivity satellite module, supporting global 24 time zone satellite synchronization and timing, and synchronously encapsulating positioning information into the video stream
Wide range power input (DC9 to 36V), meeting the electrical characteristics requirements of motorcycle

View Less

Data Sheet

Available models:

iDS-MI3704-H/2/G(LA-kit)

iDS-MI3704-H/2/G(EU-kit)

iDS-MI3704-H

Specification
Resources
Accessories

Data Sheet

Camera
Max. Resolution1920 × 1080
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON)
Shutter Time1/25 s to 1/20000 s

Lens
Focal Length & FOV 4 mm, horizontal FOV 91°, vertical FOV 75°, diagonal FOV /°
Focus Fixed
Iris TypeFixed iris
ApertureMax. F2.0

Illuminator
Built-in Supplement Light TypeWhite light
Light Bead4
Built-in Supplement Light RangeUp to 8 m

Video
Main Stream50 Hz:25fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
Sub Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
Video Compression H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile,Baseline Profile,High Profile
H.265 TypeMain Profile

Network
ProtocolsTCP/IP,HTTP,FTP,DHCP,DNS,RTP,RTSP,NTP,ISUP

Wireless (Wi-Fi)
Encryption ModeWPA-PSK/WPA2-PSK
Wi-Fi Protocol 802.11b,802.11n,802.11g
Frequency Range2.4 GHz to 2.4385 GHz
Channel Bandwidth 20/40 MHz
Modulation802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps),,802.11g: OFDM,802.11n: OFDM
Transfer Rate 11b: 11,5.5,2,1 Mbps, 11g: 54,48,36,24,18,12,9,6 Mbps,11n: up to 150 Mbps
Wireless RangeUp to 120 m (The performance varies based on actual environment.)
Antenna 1 antenna(s)

Wireless (Mobile Communication)
FrequencyEU: LTE FDD: Band 1/3/5/7/8/20/28 LTE TDD: Band 38./40/41 WCDMA/HSPA+: Band 1/5/8 TD-SCDMA: Band 34/39 GSM/GPRS/EDGE: 850/900/1800MHz LA: LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66 LTE-TDD: Band38/40 WCDMA: Band1/2/3/4/5/8 GSM: 850/900/1800/1900MHz
StandardLTE-TDD,LTE-FDD,TD-SCDMA,EVDO,EDGE,GPRS,GSM,CDMA
SIM Card TypeNano SIM

Supplement Detection (Satellite Positioning)
Satellite PositioningGPS

Interface
Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s)
On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB
Audio1 output (line out), max. output amplitude: 1.8 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input(s),1 output(s)
RS-4851 RS-485
RS-2321 RS-232
Power Output5 VDC, max. 2 A

Road Traffic and Vehicle Detection
Trigger ModeVideo trigger
Smart Function License plate recognition
LPR Countries/RegionsMiddle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
Accuracy (Under recommended installation and lighting conditions)Capture rate > 98%, Vehicle moving direction recognition accuracy > 98%, LPR accuracy > 98%, Mistaken capture rate < 2%
Blocklist and AllowlistMax. 200000 records

General
Operating SystemLinux
Power DC 9 V to 36 V, 2.5 A, max. 22.5 W
Material Camera: aluminum alloy, Host: aluminum alloy
Dimension Camera：Ø 38mm × 59.3mm (Ø 1.49" ×2.33 "), Host：170mm×100mm×39.5mm(6.69" × 3.94" × 1.56") (L × W × H);
Package Dimension374 mm × 345 mm × 90 mm (14.72" × 13.6" × 3.54") (L × W × H)
Weight Host: Approx. 0.58 kg (1.28 lb.);, Camera: Approx. 0.14 kg (0.31 lb.)
With Package WeightApprox. 1.82 kg (4.0 lb.)
Operating Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
Storage Condition-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General FunctionHeartbeat, password protection, NTP time adjustment
Language English

Approval
RFCE-RED:EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 301489-17 V3.2.4，EN 301489-52 V1.2.1，EN 300440 V2.1.1, EN 302288-2 V1.6.1
EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
SafetyCB: IEC 62368-1: 2014,CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017,CE-LVD: EN IEC 62368-1:2020 +A11:2020
EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013(only for camera)

Camera

Max. Resolution

1920 × 1080

Image Sensor

1/2.8" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON)

Shutter Time

1/25 s to 1/20000 s

Lens

Focal Length & FOV

4 mm, horizontal FOV 91°, vertical FOV 75°, diagonal FOV /°

Focus

Fixed

Iris Type

Fixed iris

Aperture

Max. F2.0

Illuminator

Built-in Supplement Light Type

White light

Light Bead

Built-in Supplement Light Range

Up to 8 m

Video

Main Stream

50 Hz:25fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

Sub Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)

Video Compression

H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Main Profile,Baseline Profile,High Profile

H.265 Type

Main Profile

Network

Protocols

TCP/IP,HTTP,FTP,DHCP,DNS,RTP,RTSP,NTP,ISUP

Wireless (Wi-Fi)

Encryption Mode

WPA-PSK/WPA2-PSK

Wi-Fi Protocol

802.11b,802.11n,802.11g

Frequency Range

2.4 GHz to 2.4385 GHz

Channel Bandwidth

20/40 MHz

Modulation

802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps),,802.11g: OFDM,802.11n: OFDM

Transfer Rate

11b: 11,5.5,2,1 Mbps, 11g: 54,48,36,24,18,12,9,6 Mbps,11n: up to 150 Mbps

Wireless Range

Up to 120 m (The performance varies based on actual environment.)

Antenna

1 antenna(s)

Wireless (Mobile Communication)

Frequency

EU: LTE FDD: Band 1/3/5/7/8/20/28 LTE TDD: Band 38./40/41 WCDMA/HSPA+: Band 1/5/8 TD-SCDMA: Band 34/39 GSM/GPRS/EDGE: 850/900/1800MHz LA: LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66 LTE-TDD: Band38/40 WCDMA: Band1/2/3/4/5/8 GSM: 850/900/1800/1900MHz

Standard

LTE-TDD,LTE-FDD,TD-SCDMA,EVDO,EDGE,GPRS,GSM,CDMA

SIM Card Type

Nano SIM

Supplement Detection (Satellite Positioning)

Satellite Positioning

GPS

Interface

Ethernet Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s)

On-Board Storage

Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB

Audio

1 output (line out), max. output amplitude: 1.8 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input(s),1 output(s)

RS-485

1 RS-485

RS-232

1 RS-232

Power Output

5 VDC, max. 2 A

Road Traffic and Vehicle Detection

Trigger Mode

Video trigger

Smart Function

License plate recognition

LPR Countries/Regions

Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan

Accuracy (Under recommended installation and lighting conditions)

Capture rate > 98%, Vehicle moving direction recognition accuracy > 98%, LPR accuracy > 98%, Mistaken capture rate < 2%

Blocklist and Allowlist

Max. 200000 records

General

Operating System

Linux

Power

DC 9 V to 36 V, 2.5 A, max. 22.5 W

Material

Camera: aluminum alloy, Host: aluminum alloy

Dimension

Camera：Ø 38mm × 59.3mm (Ø 1.49" ×2.33 "), Host：170mm×100mm×39.5mm(6.69" × 3.94" × 1.56") (L × W × H);

Package Dimension

374 mm × 345 mm × 90 mm (14.72" × 13.6" × 3.54") (L × W × H)

Weight

Host: Approx. 0.58 kg (1.28 lb.);, Camera: Approx. 0.14 kg (0.31 lb.)

With Package Weight

Approx. 1.82 kg (4.0 lb.)

Operating Condition

-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)

Storage Condition

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat, password protection, NTP time adjustment

Language

English

Approval

CE-RED:EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 301489-17 V3.2.4，EN 301489-52 V1.2.1，EN 300440 V2.1.1, EN 302288-2 V1.6.1

EMC

CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014

Safety

CB: IEC 62368-1: 2014,CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017,CE-LVD: EN IEC 62368-1:2020 +A11:2020

Environment

CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013(only for camera)
