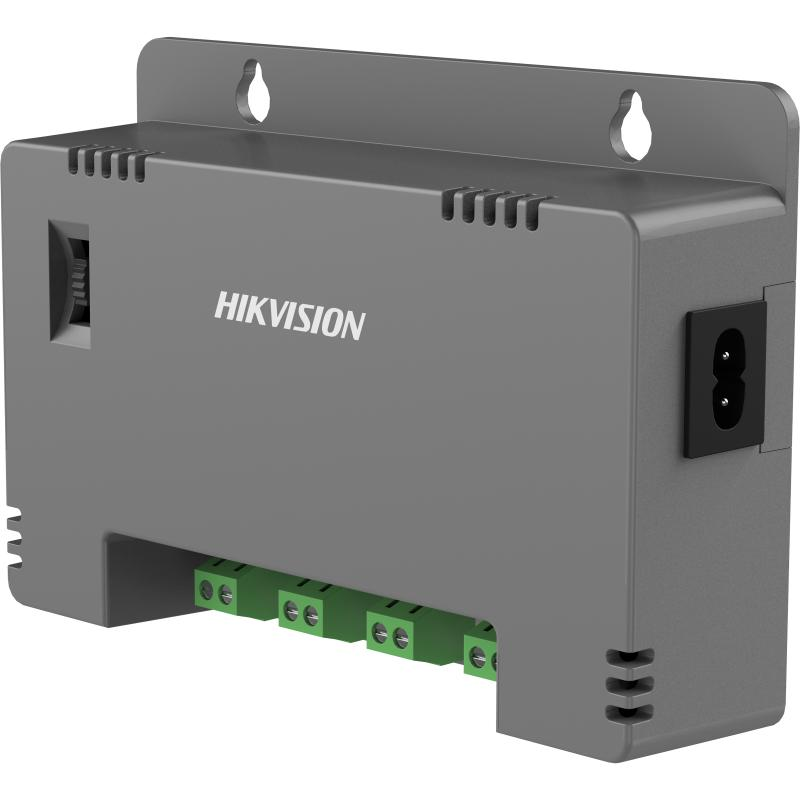

DS-2FA1225-D4(UK)

EOL

Multi-channel SMPS

  • 12 VDC/1 A per channel
  • Over current/short circuit/over voltage protection
  • Complies with certification standards of information technology products; good EMC performance
  • Compact size; applicable to cameras
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2FA1225-D4(UK)
DS-2FA1225-D4(UK)
EOL
Data Sheet

Specification

  • Parameters
  • LED IndicatorGreen
  • Dimension130 mm × 94 mm × 34 mm (5.11" × 3.70" × 1.34")
  • Operating Conditions0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
  • Cable Length CompensationNormal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC
  • AppearanceGray
  • Output12 VDC/1 A per channel
  • Ripple & Noise 150 mVp-p0.15 Vp-p (150 mV)
  • AC Input ConnectorC8
  • DC Output ConnectorDC Plug: grid terminal
  • Storage Conditions-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
  • Input185 to 240 VAC, 50 Hz to 60 Hz
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Parameters
LED Indicator
Green
Dimension
130 mm × 94 mm × 34 mm (5.11" × 3.70" × 1.34")
Operating Conditions
0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
Cable Length Compensation
Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC
Appearance
Gray
Output
12 VDC/1 A per channel
Ripple & Noise 150 mVp-p
0.15 Vp-p (150 mV)
AC Input Connector
C8
DC Output Connector
DC Plug: grid terminal
Storage Conditions
-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Input
185 to 240 VAC, 50 Hz to 60 Hz
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Parameters
  • LED IndicatorGreen
  • Dimension130 mm × 94 mm × 34 mm (5.11" × 3.70" × 1.34")
  • Operating Conditions0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
  • Cable Length CompensationNormal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC
  • AppearanceGray
  • Output12 VDC/1 A per channel
  • Ripple & Noise 150 mVp-p0.15 Vp-p (150 mV)
  • AC Input ConnectorC8
  • DC Output ConnectorDC Plug: grid terminal
  • Storage Conditions-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
  • Input185 to 240 VAC, 50 Hz to 60 Hz
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
