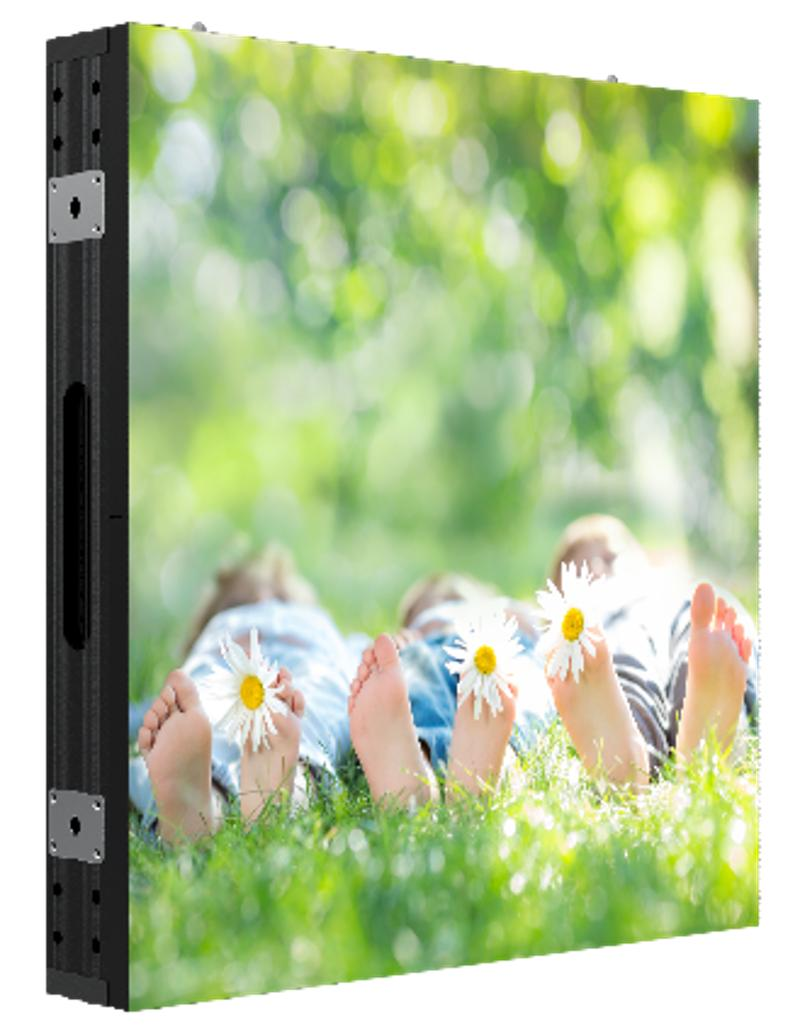

P2.5 Outdoor Fixed LED Displays

  • Widely applied in outdoor permanent advertising scenes
  • Thin and light cabinet with the die-casting aluminum design
  • IP 65 rating for both the front and back panels
  • Free of air conditioners with multiple ventilation modes working together inside the cabinets
  • front maintenance
  • Standing, wall mount, and lifting
  • Customizable as stadium LED screens
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D4225FO-BGF，500*500mm，5% spareparts
DS-D4225FO-BGF
Data Sheet

Specification

  • Cabinet
  • Pixel ConfigurationSMD 3-IN-1 LED
  • Pixel Pitch CategoryP2.5
  • Pixel Pitch2.5 mm
  • Modules Component2 × 2
  • Dimensions (W × H × D)500 mm × 500 mm × 85.1 mm (19.7" × 19.7" × 3.35")
  • Resolution200 × 200
  • Area0.25 m²
  • Weight8.25 Kg (18.2 lb)
  • Pixel Density160000 dots/m²
  • Lamp Board HousingWith housing
  • Cabinet Materialaluminum
  • Maintenance MethodFront maintenance
  • Cabinet Flatness0.2 mm
  • Protection LevelIP65 both front and back
  • Key Material
  • Lamp EncapsulationNationstar 1415
  • Control SystemDS-D42C04-N
  • Display
  • White Balance Brightness5000 cd/m²
  • Color Temperature2000 K to 9300 K adjustable
  • Viewing AngleHorizontal 140°, vertical 140°
  • Contrast Ratio≥ 5000:1
  • Color Uniformity≤ ± 0.003Cx，Cy
  • Brightness Uniformity≥ 97％
  • Processing Performance
  • Driving MethodConstant current driving
  • Frame Frequency60 Hz
  • Refresh RateUp to 3840 Hz
  • Grey LevelUp to 16 bit
  • Display Color281 trillion
  • Power
  • Power Supply110~220 VAC ± 15%
  • Max. Consumption≤ 750 W/m²
  • Average Consumption≤250 W/m²
  • Working Environment
  • Working Temperature-10-55 ℃
  • Working Humidity10%~80%RH
  • Storage Humidity10%~85%RH
  • Storage Temperature-20~60 ℃
  • General
  • Gross Weight100 Kg (220 lb) /8 in 1
  • Package Dimension (W × H × D)1260 mm × 610 mm × 750 mm (49.6" × 24.0" ×29.53")
  • LifespanLamp 100,000 hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Cabinet
Pixel Configuration
SMD 3-IN-1 LED
Pixel Pitch Category
P2.5
Pixel Pitch
2.5 mm
Modules Component
2 × 2
Dimensions (W × H × D)
500 mm × 500 mm × 85.1 mm (19.7" × 19.7" × 3.35")
Resolution
200 × 200
Area
0.25 m²
Weight
8.25 Kg (18.2 lb)
Pixel Density
160000 dots/m²
Lamp Board Housing
With housing
Cabinet Material
aluminum
Maintenance Method
Front maintenance
Cabinet Flatness
0.2 mm
Protection Level
IP65 both front and back
Key Material
Lamp Encapsulation
Nationstar 1415
Control System
DS-D42C04-N
Display
White Balance Brightness
5000 cd/m²
Color Temperature
2000 K to 9300 K adjustable
Viewing Angle
Horizontal 140°, vertical 140°
Contrast Ratio
≥ 5000:1
Color Uniformity
≤ ± 0.003Cx，Cy
Brightness Uniformity
≥ 97％
Processing Performance
Driving Method
Constant current driving
Frame Frequency
60 Hz
Refresh Rate
Up to 3840 Hz
Grey Level
Up to 16 bit
Display Color
281 trillion
Power
Power Supply
110~220 VAC ± 15%
Max. Consumption
≤ 750 W/m²
Average Consumption
≤250 W/m²
Working Environment
Working Temperature
-10-55 ℃
Working Humidity
10%~80%RH
Storage Humidity
10%~85%RH
Storage Temperature
-20~60 ℃
General
Gross Weight
100 Kg (220 lb) /8 in 1
Package Dimension (W × H × D)
1260 mm × 610 mm × 750 mm (49.6" × 24.0" ×29.53")
Lifespan
Lamp 100,000 hours
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Cabinet
  • Pixel ConfigurationSMD 3-IN-1 LED
  • Pixel Pitch CategoryP2.5
  • Pixel Pitch2.5 mm
  • Modules Component2 × 2
  • Dimensions (W × H × D)500 mm × 500 mm × 85.1 mm (19.7" × 19.7" × 3.35")
  • Resolution200 × 200
  • Area0.25 m²
  • Weight8.25 Kg (18.2 lb)
  • Pixel Density160000 dots/m²
  • Lamp Board HousingWith housing
  • Cabinet Materialaluminum
  • Maintenance MethodFront maintenance
  • Cabinet Flatness0.2 mm
  • Protection LevelIP65 both front and back
Key Material
  • Lamp EncapsulationNationstar 1415
  • Control SystemDS-D42C04-N
Display
  • White Balance Brightness5000 cd/m²
  • Color Temperature2000 K to 9300 K adjustable
  • Viewing AngleHorizontal 140°, vertical 140°
  • Contrast Ratio≥ 5000:1
  • Color Uniformity≤ ± 0.003Cx，Cy
  • Brightness Uniformity≥ 97％
Processing Performance
  • Driving MethodConstant current driving
  • Frame Frequency60 Hz
  • Refresh RateUp to 3840 Hz
  • Grey LevelUp to 16 bit
  • Display Color281 trillion
Power
  • Power Supply110~220 VAC ± 15%
  • Max. Consumption≤ 750 W/m²
  • Average Consumption≤250 W/m²
Working Environment
  • Working Temperature-10-55 ℃
  • Working Humidity10%~80%RH
  • Storage Humidity10%~85%RH
  • Storage Temperature-20~60 ℃
General
  • Gross Weight100 Kg (220 lb) /8 in 1
  • Package Dimension (W × H × D)1260 mm × 610 mm × 750 mm (49.6" × 24.0" ×29.53")
  • LifespanLamp 100,000 hours
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
