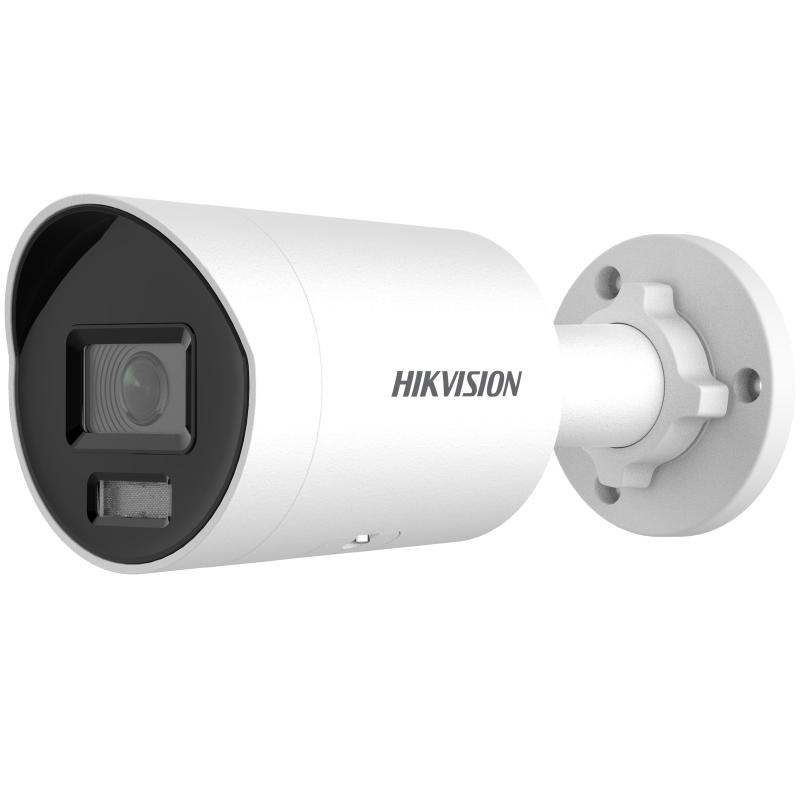

8 MP ColorVu Fixed Bullet Network Camera

  • High quality imaging with 8 MP resolution
  • 24/7 colorful imaging
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle classification based on deep learning
  • -U: Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD2087G2-LK(6mm)(D)
DS-2CD2087G2-LK(4mm)(D)
DS-2CD2087G2-LK(2.8mm)(D)
DS-2CD2087G2-L(U)K
Data Sheet

Specification

  • Camera
  • Image Sensor 1/1.8" Progressive Scan CMOS
  • Max. Resolution 3840 × 2160
  • Min. Illumination Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time 1/3 s to 1/100,000 s
  • Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Day & Night 24/7 color imaging
  • Lens
  • Focal Length & FOV 2.8 mm, horizontal FOV 104°, vertical FOV 55°, diagonal FOV 127° 4 mm, horizontal FOV 93°, vertical FOV 46°, diagonal FOV 112° 6 mm, horizontal FOV 57°, vertical FOV 30°, diagonal FOV 67°
  • Lens Mount M16
  • Iris Type Fixed
  • Aperture F1.0
  • Depth of Field 2.8 mm: 3.4 m to ∞ 4 mm: 3.8 m to ∞ 6 mm: 8.3 m to ∞
  • Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
  • DORI
  • DORI 2.8 mm: D: 91 m, O: 36 m, R: 18 m, I: 9 m 4 mm: D: 111 m, O: 44 m, R: 22 m, I: 11 m 6 mm: D: 169 m, O: 67 m, R: 33 m, I: 16 m
  • Illuminator
  • Smart Supplement Light Yes
  • Supplement Light Type White Light
  • Supplement Light Range Up to 40 m
  • Video
  • Main Stream 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Baseline Profile/Main Profile/High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR/VBR
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 1 fixed region(s) for main stream and sub-stream
  • Audio
  • Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering -U: Yes
  • Network
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Simultaneous Live View Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host Up to 32 users 3 user levels: administrator, operator, and user
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
  • Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web Browser Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image Parameters Switch Yes
  • Image Settings saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR) 130 dB
  • SNR ≥ 52 dB
  • Image Enhancement BLC, HLC, 3D DNR
  • Privacy Mask 4 regions of privacy mask
  • Interface
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Built-in Microphone -U: Yes
  • Reset Key Yes
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
  • Linkage Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture
  • General
  • Package Dimension 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
  • Material Metal
  • Dimension Ø74.4 mm × 179.2 mm (Ø2.9" × 7.1")
  • Power 12 VDC ± 25%, 0.69 A, max. 8.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
  • Weight Approx. 525 g (1.2 lb.)
  • With Package Weight Approx. 750 g (1.7 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, anti-banding, three streams
  • Approval
  • EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
  • Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Day & Night
24/7 color imaging
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 55°, diagonal FOV 127° 4 mm, horizontal FOV 93°, vertical FOV 46°, diagonal FOV 112° 6 mm, horizontal FOV 57°, vertical FOV 30°, diagonal FOV 67°
Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth of Field
2.8 mm: 3.4 m to ∞ 4 mm: 3.8 m to ∞ 6 mm: 8.3 m to ∞
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
DORI
DORI
2.8 mm: D: 91 m, O: 36 m, R: 18 m, I: 9 m 4 mm: D: 111 m, O: 44 m, R: 22 m, I: 11 m 6 mm: D: 169 m, O: 67 m, R: 33 m, I: 16 m
Illuminator
Smart Supplement Light
Yes
Supplement Light Type
White Light
Supplement Light Range
Up to 40 m
Video
Main Stream
50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region(s) for main stream and sub-stream
Audio
Audio Compression
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
-U: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser
Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+ Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch
Yes
Image Settings
saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
130 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 regions of privacy mask
Interface
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone
-U: Yes
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Linkage
Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture
General
Package Dimension
234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Material
Metal
Dimension
Ø74.4 mm × 179.2 mm (Ø2.9" × 7.1")
Power
12 VDC ± 25%, 0.69 A, max. 8.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
Weight
Approx. 525 g (1.2 lb.)
With Package Weight
Approx. 750 g (1.7 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, anti-banding, three streams
Approval
EMC
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
Safety
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.5_241103
Applied to:
DS-2CD2087G2-LK(6mm)(D)
DS-2CD2087G2-LK(4mm)(D)
DS-2CD2087G2-LK(2.8mm)(D)
