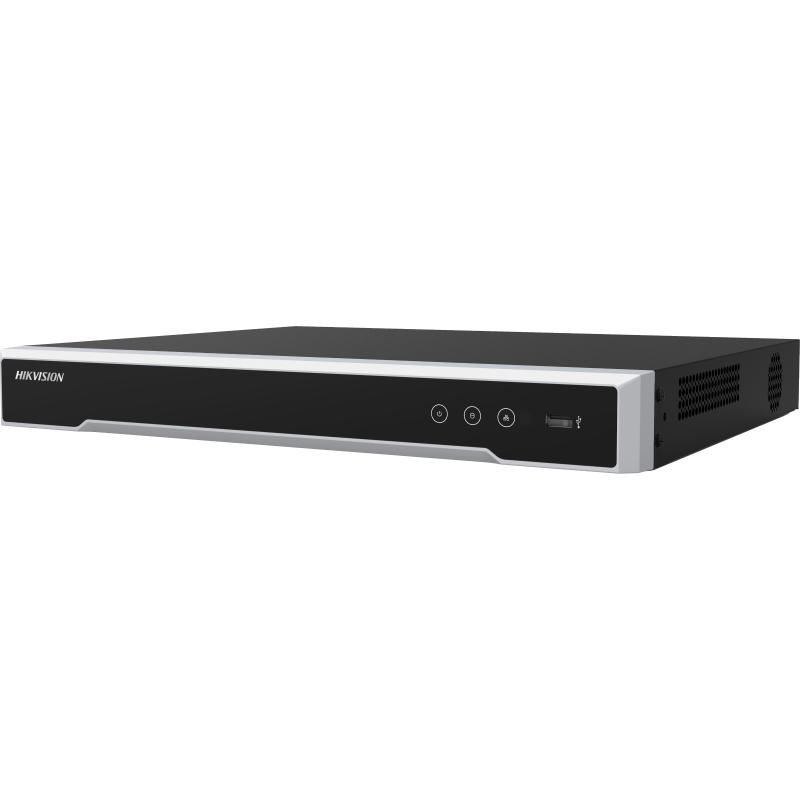

DS-7632NI-K2

    EOL

    32-ch 1U 4K NVR

    • Up to 32-ch IP camera inputs
    • H.265+/H.265/H.264+/H.264 video formats
    • Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
    • 1 HDMI and 1 VGA interfaces, both interfaces support independent video output
    • 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
    • Up to 256 Mbps incoming bandwidth
    View Less
    View more

    Available models:

    DS-7632NI-K2

    Specification

    • Video and Audio
    • IP Video Input32-ch
    • Incoming Bandwidth256 Mbps
    • Outgoing Bandwidth160 Mbps
    • HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
    • VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
    • Video Output ModeHDMI/VGA independent output
    • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
    • Decoding
    • Decoding FormatH.265/H.265+/H.264/H.264+
    • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
    • Synchronous Playback16-ch
    • Decoding Capability1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
    • Stream TypeVideo, Video & Audio
    • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
    • Network
    • Remote Connection128-ch
    • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
    • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    • Auxiliary Interface
    • SATA2 SATA interfaces
    • CapacityUp to 10 TB capacity for each HDD
    • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
    • Alarm In/Out4/1
    • General
    • Power Supply12 VDC, 3.33 A
    • Consumption≤ 15 W (without HDD)
    • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working Humidity10 to 90 %
    • Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
    • Weight≤ 1 kg (without HDD, 2.2 lb.)
    • Certification
    • FCCPart 15 Subpart B, ANSI C63.4-2014
    • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Video and Audio
    IP Video Input
    32-ch
    Incoming Bandwidth
    256 Mbps
    Outgoing Bandwidth
    160 Mbps
    HDMI Output
    4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
    VGA Output
    1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
    Video Output Mode
    HDMI/VGA independent output
    Audio Input
    1-ch, RCA (2.0 Vp-p, 1 KΩ)
    Audio Output
    1-ch, RCA (Linear, 1 KΩ)
    Two-Way Audio
    1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
    Decoding
    Decoding Format
    H.265/H.265+/H.264/H.264+
    Recording Resolution
    12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
    Synchronous Playback
    16-ch
    Decoding Capability
    1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
    Stream Type
    Video, Video & Audio
    Audio Compression
    G.711ulaw/G.711alaw/G.722/G.726
    Network
    Remote Connection
    128-ch
    Network Protocol
    TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
    Network Interface
    1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    Auxiliary Interface
    SATA
    2 SATA interfaces
    Capacity
    Up to 10 TB capacity for each HDD
    USB Interface
    Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
    Alarm In/Out
    4/1
    General
    Power Supply
    12 VDC, 3.33 A
    Consumption
    ≤ 15 W (without HDD)
    Working Temperature
    -10 °C to 55 °C (14 °F to 131 °F)
    Working Humidity
    10 to 90 %
    Dimension (W × D × H)
    385 × 315× 52 mm (15.2" × 12.4" × 2.0")
    Weight
    ≤ 1 kg (without HDD, 2.2 lb.)
    Certification
    FCC
    Part 15 Subpart B, ANSI C63.4-2014
    CE
    EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Video and Audio
    • IP Video Input32-ch
    • Incoming Bandwidth256 Mbps
    • Outgoing Bandwidth160 Mbps
    • HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
    • VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
    • Video Output ModeHDMI/VGA independent output
    • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
    Decoding
    • Decoding FormatH.265/H.265+/H.264/H.264+
    • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
    • Synchronous Playback16-ch
    • Decoding Capability1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
    • Stream TypeVideo, Video & Audio
    • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
    Network
    • Remote Connection128-ch
    • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
    • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    Auxiliary Interface
    • SATA2 SATA interfaces
    • CapacityUp to 10 TB capacity for each HDD
    • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
    • Alarm In/Out4/1
    General
    • Power Supply12 VDC, 3.33 A
    • Consumption≤ 15 W (without HDD)
    • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working Humidity10 to 90 %
    • Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
    • Weight≤ 1 kg (without HDD, 2.2 lb.)
    Certification
    • FCCPart 15 Subpart B, ANSI C63.4-2014
    • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Firmware

    Firmware_V4.72.107_220914
    K51_V4.72.107 build220914_ReleaseNotes
    Applied to:
    DS-7632NI-K2
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
