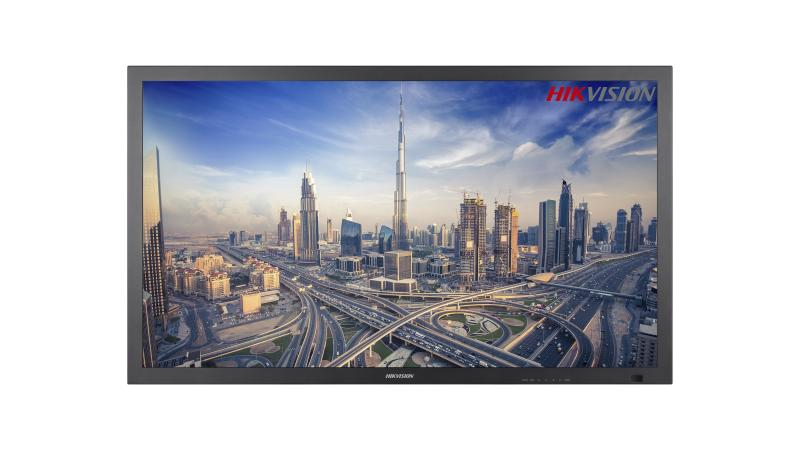

42.5-inch FHD Monitor

  • LED backlit technology with full HD 1920 x1080
  • 43" LED backlight monitor
  • Image processing: 3D comb filter, 3D De-interlace, 3D noise reduction
  • Multiple interfaces: HDMI, VGA, DVI, BNC input, audio in, audio out, USB
  • Built-in speaker
  • Wide viewing angle: Horizontal 178°, Vertical 178°
  • 24/7 operation
  • Supports 8 bit dual-channel LVDS (1920 x 1080) HD display.
  • Adopts 3D digital comb filter and 3D noise reduction technology.
  • Adopts 12-bit RGB gamma calibration technology.
  • Built-in infrared remote control receiver, integrated design, beautiful appearance.
  • Fine factory settings.
  • Software spread spectrum technology can reduce EMI radiation.
  • BNC interface supports one-channel CVBS surveillance video input and CVBS loop out.
  • Supports multi-media broadcasting in text, picture, audio and video formats.
  • Fan-less design provides energy-saving operation.
  • Supports one-touch quiescence and high temperature alarm.
  • Supports USB software update.
  • Supports 3.5 mm audio input.
  • Supports 7 x 24 hours working mode.
  • Adopts Mstar ACE-5 auto-coloring and image-enhancing engine to improve image contrast, detail, skin color, edge, etc.
View Less
View more
Sales Inquiry

Available models:

DS-D5043FL-B
DS-D5043FL-B Discontinued

Specification

  • General
  • VESA400 (H) x 300 (V) mm (15.04 x 11.81 inch)
  • Working temperature0 °C to 40 °C (32 °F to 104 °F)
  • Working humidity10 % to 80 % RH
  • Storage temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Power supply100 to 240 VAC, 50/60 Hz
  • Power consumption118 W
  • Casing materialSECC
  • Standby consumption1 W
  • Storage humidity10 % to 80 % RH
  • Product dimensions998.78 x 590.52 x 78.24 mm (39.32 x 23.24 x 3.08 inch)
  • Package dimension1192 x 752 x 208 mm (46.93 x 29.61 x 8.18 inch)
  • Net weight21 Kg (46.3 lb.)
  • Gross weight23 Kg (50.71 lb.)
  • AccessoryRemote control x 1, Serial port adaptor x 1, Carbon dry battery x 2, network cable x 1, Power cable x 1, CD-ROM x 1
  • Display
  • Resolution1920 x 1080
  • Brightness500 nit
  • BacklightLED
  • Screen size43 inch
  • Active display area942.78 (H) x 531.02 (V) mm (37.11 x 20.91 inch)
  • Pixel pitch490.05 (H) x 490.05 (V) um
  • Border width28.5 mm (left side, right side), 28.5 mm (top), 31 mm (bottom)
  • Viewing angle178@CR > 10
  • Color depth8 bit
  • Contrast ratio100000: 1(Dynamic)
  • Response time8 ms
  • Refresh rate60 Hz
  • Color gamut72 % NTSC
  • Haze1.00 %
  • Reliability7 x 24 H
  • Interface
  • Video & audio inputVGA x 1, DVI x 1, HDMI x 1, BNC IN x 1 AUDIO IN x 1
  • Video & audio outputBNC OUT x 1 Built-in audio x 2
  • Data transmission interfaceUSB x 1
  • Control interfaceRS-232 IN x 1, RS-232 OUT x 1 General
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
VESA
400 (H) x 300 (V) mm (15.04 x 11.81 inch)
Working temperature
0 °C to 40 °C (32 °F to 104 °F)
Working humidity
10 % to 80 % RH
Storage temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Power supply
100 to 240 VAC, 50/60 Hz
Power consumption
118 W
Casing material
SECC
Standby consumption
1 W
Storage humidity
10 % to 80 % RH
Product dimensions
998.78 x 590.52 x 78.24 mm (39.32 x 23.24 x 3.08 inch)
Package dimension
1192 x 752 x 208 mm (46.93 x 29.61 x 8.18 inch)
Net weight
21 Kg (46.3 lb.)
Gross weight
23 Kg (50.71 lb.)
Accessory
Remote control x 1, Serial port adaptor x 1, Carbon dry battery x 2, network cable x 1, Power cable x 1, CD-ROM x 1
Display
Resolution
1920 x 1080
Brightness
500 nit
Backlight
LED
Screen size
43 inch
Active display area
942.78 (H) x 531.02 (V) mm (37.11 x 20.91 inch)
Pixel pitch
490.05 (H) x 490.05 (V) um
Border width
28.5 mm (left side, right side), 28.5 mm (top), 31 mm (bottom)
Viewing angle
178@CR > 10
Color depth
8 bit
Contrast ratio
100000: 1(Dynamic)
Response time
8 ms
Refresh rate
60 Hz
Color gamut
72 % NTSC
Haze
1.00 %
Reliability
7 x 24 H
Interface
Video & audio input
VGA x 1, DVI x 1, HDMI x 1, BNC IN x 1 AUDIO IN x 1
Video & audio output
BNC OUT x 1 Built-in audio x 2
Data transmission interface
USB x 1
Control interface
RS-232 IN x 1, RS-232 OUT x 1 General
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
General
  • VESA400 (H) x 300 (V) mm (15.04 x 11.81 inch)
  • Working temperature0 °C to 40 °C (32 °F to 104 °F)
  • Working humidity10 % to 80 % RH
  • Storage temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Power supply100 to 240 VAC, 50/60 Hz
  • Power consumption118 W
  • Casing materialSECC
  • Standby consumption1 W
  • Storage humidity10 % to 80 % RH
  • Product dimensions998.78 x 590.52 x 78.24 mm (39.32 x 23.24 x 3.08 inch)
  • Package dimension1192 x 752 x 208 mm (46.93 x 29.61 x 8.18 inch)
  • Net weight21 Kg (46.3 lb.)
  • Gross weight23 Kg (50.71 lb.)
  • AccessoryRemote control x 1, Serial port adaptor x 1, Carbon dry battery x 2, network cable x 1, Power cable x 1, CD-ROM x 1
Display
  • Resolution1920 x 1080
  • Brightness500 nit
  • BacklightLED
  • Screen size43 inch
  • Active display area942.78 (H) x 531.02 (V) mm (37.11 x 20.91 inch)
  • Pixel pitch490.05 (H) x 490.05 (V) um
  • Border width28.5 mm (left side, right side), 28.5 mm (top), 31 mm (bottom)
  • Viewing angle178@CR > 10
  • Color depth8 bit
  • Contrast ratio100000: 1(Dynamic)
  • Response time8 ms
  • Refresh rate60 Hz
  • Color gamut72 % NTSC
  • Haze1.00 %
  • Reliability7 x 24 H
Interface
  • Video & audio inputVGA x 1, DVI x 1, HDMI x 1, BNC IN x 1 AUDIO IN x 1
  • Video & audio outputBNC OUT x 1 Built-in audio x 2
  • Data transmission interfaceUSB x 1
  • Control interfaceRS-232 IN x 1, RS-232 OUT x 1 General
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.1.0_210929
Applied to:
DS-D5043FL-B

Accessories

DS-DM4304B
