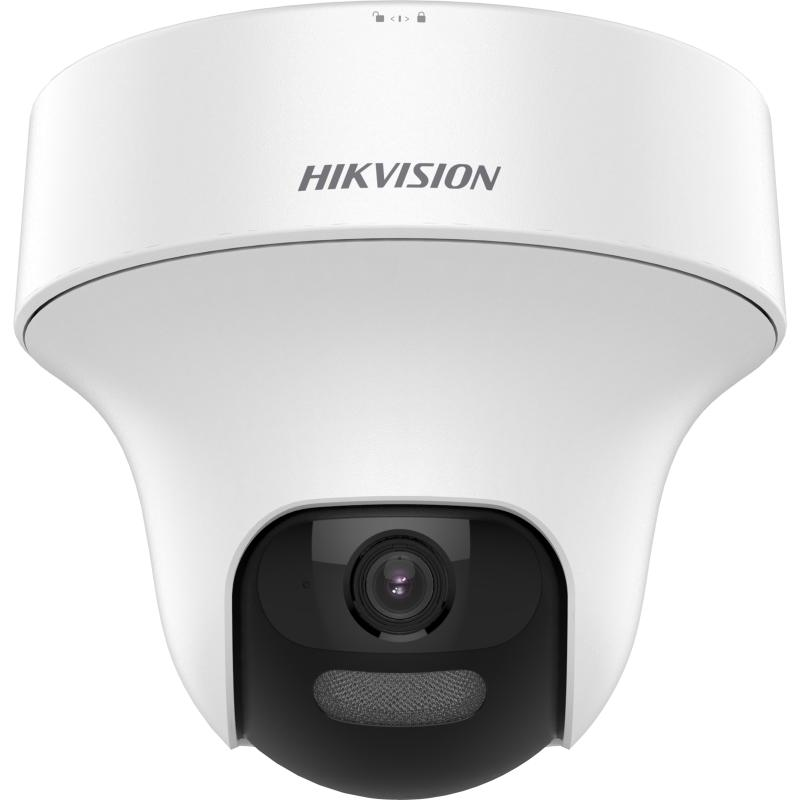

4 MP Fixed Indoor IR PT Network Camera

High quality imaging with 4 MP resolution
Digital WDR, HLC, BLC, 3D DNR
Hik-Connect cloud service and APP for remote management and views of devices
Good night-time performance with up to 20 m IR
built-in microphone

View Less

Available models:

DS-2DE2E400IWG-E(4mm)

DS-2DE2E400IWG-E(2.8mm)

DS-2DE2E400IWG-E

Specification
Resources
Accessories

Camera
Image Sensor1/3″ Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @(F2.0, AGC ON), 0 Lux with IR

Lens
Focal Length4 mm
FOVHorizontal FOV 79°, vertical FOV 40°, diagonal FOV 94°
ApertureF2.0

Illuminator
Supplement Light TypeIR
Supplement Light RangeIR Distance: up to 20 m
IR Wavelength850 nm

PTZ
Movement Range (Pan)0° to 350°
Movement Range (Tilt)0° to 75°
Pan SpeedUp to 20°/s
Tilt SpeedUp to 10°/s

Video
Main Stream50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 720） 60 Hz：20 fps（2560 × 1440），24 fps（1920 × 1080，1280 × 720）
Sub-Stream50 Hz：25 fps（1280 × 720，640 × 480，640 × 360） 60 Hz：24 fps（1280 × 720，640 × 480，640 × 360）
Video CompressionH.265, H.264, MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile

Audio
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
Audio Bit RateAAC-LC: 16 Kbps, 32 Kbps, 64 Kbps; MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps; G.711alaw: 64 Kbps
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, Hik-Connect
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone1 built-in microphone

Event
Basic EventMotion detection，video tampering alarm，illegal login
LinkageUpload to FTP, notify surveillance center, send email, trigger capture

General
PowerØ5.5 mm coaxial power plug;12 VDC,Max. 6 W; PoE (802.3af)
Dimensionφ123.7 mm ×110.8mm (4.9" × 4.4")
WeightWeight:Approx. 290 g (0.6 lb.) With Package Weight:Approx. 390 g (0.8 lb.)
MaterialPlastic
Operating Condition-10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
General FunctionMirror, password protection, watermark

Approval
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
SafetyCB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017);
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP54

Camera

Image Sensor

1/3″ Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @(F2.0, AGC ON), 0 Lux with IR

Lens

Focal Length

4 mm

FOV

Horizontal FOV 79°, vertical FOV 40°, diagonal FOV 94°

Aperture

F2.0

Illuminator

Supplement Light Type

Supplement Light Range

IR Distance: up to 20 m

IR Wavelength

850 nm

PTZ

Movement Range (Pan)

0° to 350°

Movement Range (Tilt)

0° to 75°

Pan Speed

Up to 20°/s

Tilt Speed

Up to 10°/s

Video

Main Stream

50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 720） 60 Hz：20 fps（2560 × 1440），24 fps（1920 × 1080，1280 × 720）

Sub-Stream

50 Hz：25 fps（1280 × 720，640 × 480，640 × 360） 60 Hz：24 fps（1280 × 720，640 × 480，640 × 360）

Video Compression

H.265, H.264, MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Audio

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM

Audio Bit Rate

AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps; MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps; G.711alaw: 64 Kbps

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour

API

Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, Hik-Connect

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Security

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter


Image Settings

Saturation, brightness, contrast, and sharpness adjustable by client software or web browser

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC, HLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Built-in Microphone

1 built-in microphone

Event

Basic Event

Motion detection，video tampering alarm，illegal login

Linkage

Upload to FTP, notify surveillance center, send email, trigger capture

General

Power

Ø5.5 mm coaxial power plug;12 VDC,Max. 6 W; PoE (802.3af)

Dimension

φ123.7 mm ×110.8mm (4.9" × 4.4")

Weight

Weight:Approx. 290 g (0.6 lb.) With Package Weight:Approx. 390 g (0.8 lb.)

Material

Plastic

Operating Condition

-10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)

General Function

Mirror, password protection, watermark

Approval

EMC

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

Safety

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017);

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP54
