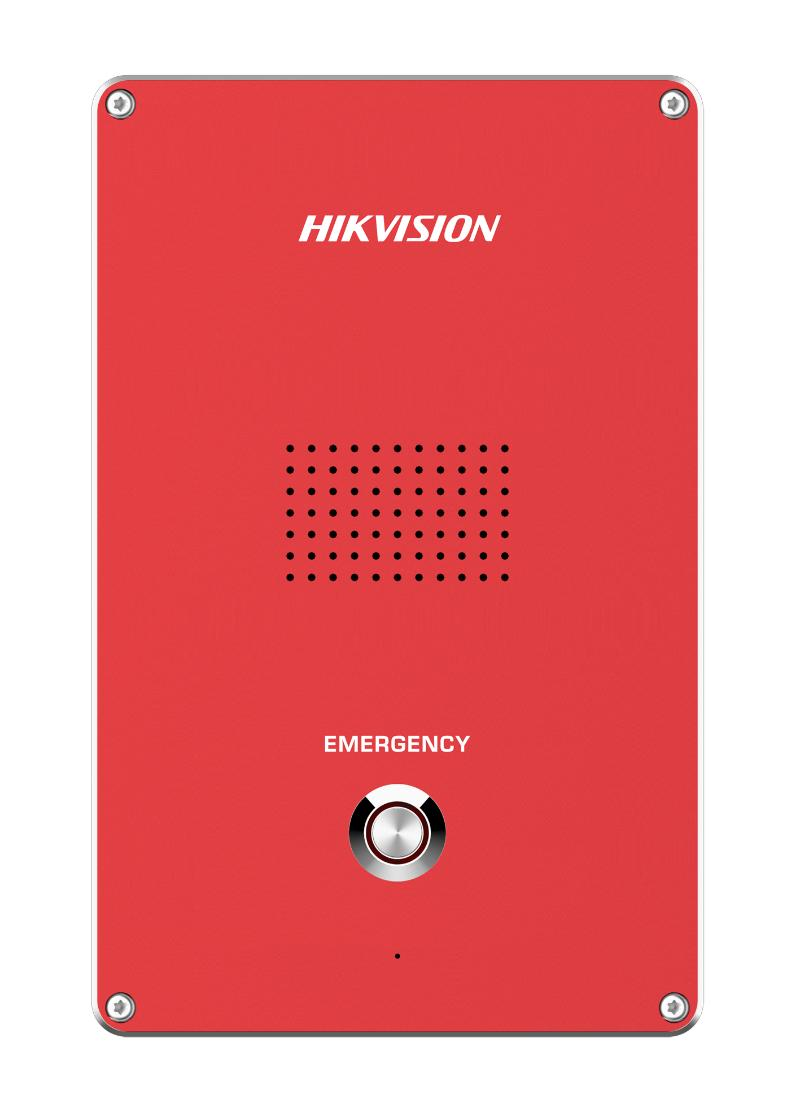

Panic Alarm Panel

  • Adopts embedded Linux operation system and high-performance embedded SOC processor
  • One-touch emergency calling
  • Supports broadcasting
  • Multiple communication protocols: TCP/IP, HIK-SIP, RTSP, and standard SIP
  • Supports ISUP for public network transmission
  • Built-in Omnidirectional Microphone, Pickup Distance: 5 m
  • Supports AEC/AGC/ANC
  • Support system audio self-check
  • Explosion-proof level: IK08
View Less
View more
Sales Inquiry
DS-PEA102R

Especificación

  • Software features
  • Admin1
  • User APP for operatingSupported
  • Configuration toolsIVMS4200
  • Memory log storedSupported
  • Firmware upgradeSupported
  • Voice promptSupported
  • ProtocoloTCP/IP, RTSP, HIK-SIP, Standard SIP, ISUP
  • Hardware features
  • Salida de alarma1
  • Entrada de alarma1
  • Tamper-ProofSupported
  • Audio
  • Sound pressure80dB, Sound Can be Configured Separately
  • Entrada de Audio1-ch Built-in Omnidirectional Microphone Pickup Distance: 5 m
  • Salida de audio1-ch 3 W Build-in Loudspeaker
  • Audio encoding/decoding standardG.711U;G.726;AAC
  • Audio compression code rate16Kbps;64Kbps
  • Calidad de audioSmart Noise Suppression
  • Electrical characteristics
  • Fuente de alimentación12 VDC
  • Consumo de energía≤6W
  • Network transmission
  • Red cableada10 M/100 M Self-adaptive Ethernet port
  • General
  • IP rate54
  • IK rate08
  • Installation methodWall-mounted
  • Dimension(WxHxD)179X114X43.5mm
  • Operation temperature-20℃-＋55℃
  • Operation humidity10％-90％
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Software features
Admin
1
User APP for operating
Supported
Configuration tools
IVMS4200
Memory log stored
Supported
Firmware upgrade
Supported
Voice prompt
Supported
Protocolo
TCP/IP, RTSP, HIK-SIP, Standard SIP, ISUP
Hardware features
Salida de alarma
1
Entrada de alarma
1
Tamper-Proof
Supported
Audio
Sound pressure
80dB, Sound Can be Configured Separately
Entrada de Audio
1-ch Built-in Omnidirectional Microphone Pickup Distance: 5 m
Salida de audio
1-ch 3 W Build-in Loudspeaker
Audio encoding/decoding standard
G.711U;G.726;AAC
Audio compression code rate
16Kbps;64Kbps
Calidad de audio
Smart Noise Suppression
Electrical characteristics
Fuente de alimentación
12 VDC
Consumo de energía
≤6W
Network transmission
Red cableada
10 M/100 M Self-adaptive Ethernet port
General
IP rate
54
IK rate
08
Installation method
Wall-mounted
Dimension(WxHxD)
179X114X43.5mm
Operation temperature
-20℃-＋55℃
Operation humidity
10％-90％
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Especificación
Software features
  • Admin1
  • User APP for operatingSupported
  • Configuration toolsIVMS4200
  • Memory log storedSupported
  • Firmware upgradeSupported
  • Voice promptSupported
  • ProtocoloTCP/IP, RTSP, HIK-SIP, Standard SIP, ISUP
Hardware features
  • Salida de alarma1
  • Entrada de alarma1
  • Tamper-ProofSupported
Audio
  • Sound pressure80dB, Sound Can be Configured Separately
  • Entrada de Audio1-ch Built-in Omnidirectional Microphone Pickup Distance: 5 m
  • Salida de audio1-ch 3 W Build-in Loudspeaker
  • Audio encoding/decoding standardG.711U;G.726;AAC
  • Audio compression code rate16Kbps;64Kbps
  • Calidad de audioSmart Noise Suppression
Electrical characteristics
  • Fuente de alimentación12 VDC
  • Consumo de energía≤6W
Network transmission
  • Red cableada10 M/100 M Self-adaptive Ethernet port
General
  • IP rate54
  • IK rate08
  • Installation methodWall-mounted
  • Dimension(WxHxD)179X114X43.5mm
  • Operation temperature-20℃-＋55℃
  • Operation humidity10％-90％
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
