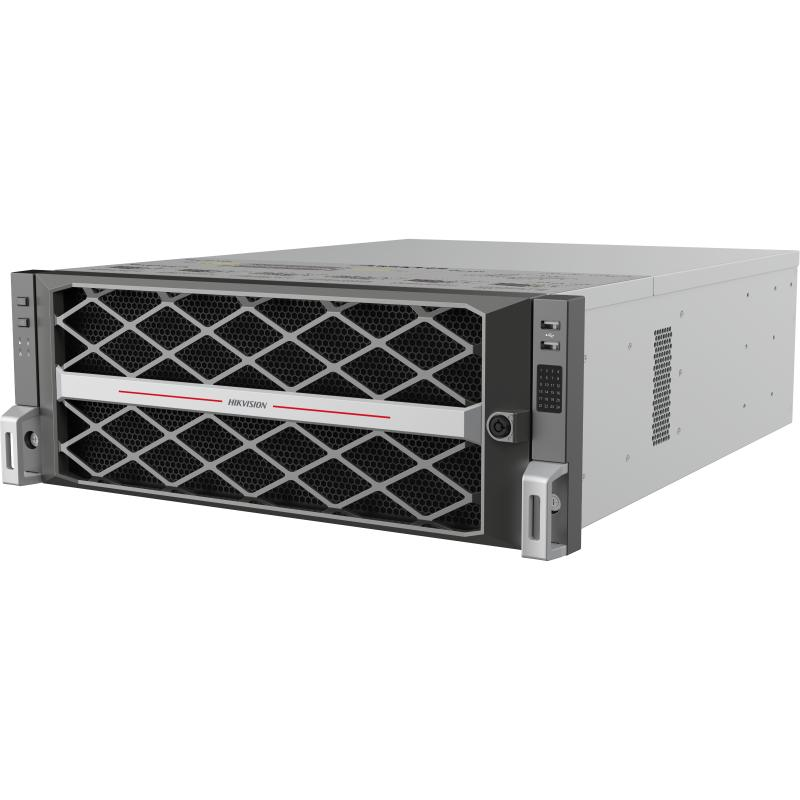

24-slot Cost-efficient Storage

  • Highly stable and easy-to-maintain hardware platform. 1 64-bit multi-core processor with 8GB cache, 4 gigabit ethernet ports, and the 4U chassis which can support 24 HDDs.
  • Disk inspection/repair and RAID optimisation. Supports HDD pre-screening, inspection, and repair to improve the efficiency of HDD. Supports RAID 0, 1, 5, 6, 10 and other RAID modes. Supports global hot spare, local hot spare replacement, and multiple data security protection.
  • User-friendly operation and maintenance interface. 4-step GUI configuration wizard helps users quickly complete the system configuration. GUI interface keeps user informed of device operation status in time, including network status, device status, storage status, etc.
  • Video streaming direct storage. Supports video streaming direct storage. Supports streaming video directly from network camera. Storage server and streaming media forwarding server can be omitted. Supports front-end access with RTSP, ONVIF and other protocols.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-A60224R-I
DS-A60224R-I
Data Sheet

Especificación

  • Parámetro de rendimiento
  • Video performance256-ch (768Mbps)
  • Hardware
  • Procesador64-bit multi-core processor
  • Cache8 GB
  • Controlador1
  • Disk Management
  • RAID TypeRAID 0, 1, 5, 6, 10
  • Disk Interface TypeSATA
  • Disk size4 TB/6 TB/ 8 TB/10TB
  • Disk typeEnterprise HDD
  • Hot swap diskSupported
  • Number of disk interfaces24
  • Administración de almacenamiento
  • Disk managementDisk alarm
  • Gestión de grabación
  • Modo grabaciónTiming recording, manual recording
  • Video protectionLock key video, N+M protection, ANR, video loss alarm
  • Searching modeSearch by time and event
  • Downloading modeDownload via web
  • Red
  • ProtocoloRTSP;ONVIF;HKSDK;HTTP
  • Access protocolSNMP,NTP,HTTP,HTTPS,IPv4,IPv6,SADP
  • Mantenimiento de dispositivo
  • Modo de gestiónLocal GUI，Web-based GUI, serial port CLI
  • Log downloadingDownload on web page
  • Modo de alarmaSound, email, web page
  • Interfaces
  • Data network interface4, 1000M Ethernet interface
  • VGA1
  • COM1, RS-232
  • HDMI1
  • USBFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
  • Interfaz eSATA1
  • General specification
  • Chassis4U (19 inch)
  • Dimensiones (W x H x D)447× 173× 572mm
  • Weight (without HDDs)≤ 16.02kg
  • Power ModuleAC 100 to 240 V,redundant power supply
  • Consumo de energía nominal550W
  • Temperatura de trabajo0 °C to + 55 °C (32 °F to 131 °F)
  • Temperatura de almacenamiento-10°C to + 70 °C (14 °F to 158 °F)
  • Humedad de trabajo10%～90%
  • Humedad de almacenamiento5%～90%
  • Almacenamiento
  • HDD modelHikvision,HK7210AH,10T; Hikvision,HK728TAH,8T; Hikvision,HK724TAH,4T;
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Parámetro de rendimiento
Video performance
256-ch (768Mbps)
Hardware
Procesador
64-bit multi-core processor
Cache
8 GB
Controlador
1
Disk Management
RAID Type
RAID 0, 1, 5, 6, 10
Disk Interface Type
SATA
Disk size
4 TB/6 TB/ 8 TB/10TB
Disk type
Enterprise HDD
Hot swap disk
Supported
Number of disk interfaces
24
Administración de almacenamiento
Disk management
Disk alarm
Gestión de grabación
Modo grabación
Timing recording, manual recording
Video protection
Lock key video, N+M protection, ANR, video loss alarm
Searching mode
Search by time and event
Downloading mode
Download via web
Red
Protocolo
RTSP;ONVIF;HKSDK;HTTP
Access protocol
SNMP,NTP,HTTP,HTTPS,IPv4,IPv6,SADP
Mantenimiento de dispositivo
Modo de gestión
Local GUI，Web-based GUI, serial port CLI
Log downloading
Download on web page
Modo de alarma
Sound, email, web page
Interfaces
Data network interface
4, 1000M Ethernet interface
VGA
1
COM
1, RS-232
HDMI
1
USB
Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Interfaz eSATA
1
General specification
Chassis
4U (19 inch)
Dimensiones (W x H x D)
447× 173× 572mm
Weight (without HDDs)
≤ 16.02kg
Power Module
AC 100 to 240 V,redundant power supply
Consumo de energía nominal
550W
Temperatura de trabajo
0 °C to + 55 °C (32 °F to 131 °F)
Temperatura de almacenamiento
-10°C to + 70 °C (14 °F to 158 °F)
Humedad de trabajo
10%～90%
Humedad de almacenamiento
5%～90%
Almacenamiento
HDD model
Hikvision,HK7210AH,10T; Hikvision,HK728TAH,8T; Hikvision,HK724TAH,4T;
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Especificación
Parámetro de rendimiento
  • Video performance256-ch (768Mbps)
Hardware
  • Procesador64-bit multi-core processor
  • Cache8 GB
  • Controlador1
Disk Management
  • RAID TypeRAID 0, 1, 5, 6, 10
  • Disk Interface TypeSATA
  • Disk size4 TB/6 TB/ 8 TB/10TB
  • Disk typeEnterprise HDD
  • Hot swap diskSupported
  • Number of disk interfaces24
Administración de almacenamiento
  • Disk managementDisk alarm
Gestión de grabación
  • Modo grabaciónTiming recording, manual recording
  • Video protectionLock key video, N+M protection, ANR, video loss alarm
  • Searching modeSearch by time and event
  • Downloading modeDownload via web
Red
  • ProtocoloRTSP;ONVIF;HKSDK;HTTP
  • Access protocolSNMP,NTP,HTTP,HTTPS,IPv4,IPv6,SADP
Mantenimiento de dispositivo
  • Modo de gestiónLocal GUI，Web-based GUI, serial port CLI
  • Log downloadingDownload on web page
  • Modo de alarmaSound, email, web page
Interfaces
  • Data network interface4, 1000M Ethernet interface
  • VGA1
  • COM1, RS-232
  • HDMI1
  • USBFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
  • Interfaz eSATA1
General specification
  • Chassis4U (19 inch)
  • Dimensiones (W x H x D)447× 173× 572mm
  • Weight (without HDDs)≤ 16.02kg
  • Power ModuleAC 100 to 240 V,redundant power supply
  • Consumo de energía nominal550W
  • Temperatura de trabajo0 °C to + 55 °C (32 °F to 131 °F)
  • Temperatura de almacenamiento-10°C to + 70 °C (14 °F to 158 °F)
  • Humedad de trabajo10%～90%
  • Humedad de almacenamiento5%～90%
Almacenamiento
  • HDD modelHikvision,HK7210AH,10T; Hikvision,HK728TAH,8T; Hikvision,HK724TAH,4T;
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
