EOL

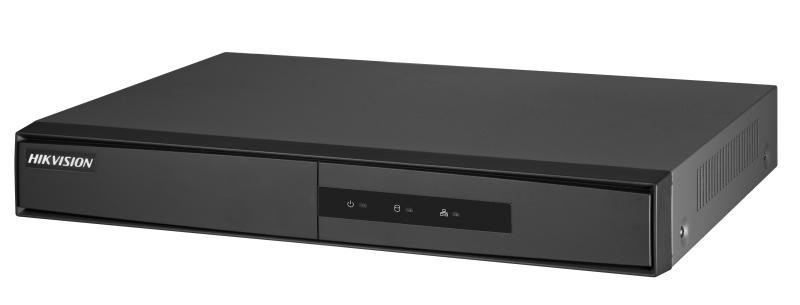

8-ch 1080p Lite 1U H.264 Balun DVR

  • 8 channels and 1 HDD 1U DVR
  • Built-in balun: video can be transported via twisted-pair
  • H.264+ / H.264 video compression
  • Encoding ability up to 1080p lite @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 10 network cameras can be connected
View Less
View more

Available models:

DS-7208HGHI-F1/NB

Specification

  • Recording
  • Encoding resolutionWhen 1080p lite mode is not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode is enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
  • Video bit rate32 Kbps to 4 Mbps
  • Video compressionH.264+/H.264
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Video and Audio
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback8-ch
  • IP video input2-ch (up to 10-ch);Up to 960P resolution;Support H.264+/H.264 IP cameras
  • HDTVI input1080p25, 1080p30, 720p25, 720p30
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Analog video input8-ch;Balun interface, supporting coaxitron connection
  • AHD input1080p25, 1080p30, 720p25, 720p30
  • CVBS outputN/A
  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections128
  • Network interface1,RJ45 10M/100M self-adaptive Ethernet interface
  • Auxiliary interface
  • CapacityUp to 6 TB capacity for each disk
  • Serial interfaceN/A
  • USB interfaceRear panel: 2 × USB 2.0
  • Alarm in/outN/A
  • SATA1 SATA interface
  • General
  • Consumption(without HDD)≤ 12 W
  • Working humidity10% to 90%
  • Power supply12 VDC
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
  • Weights (without HDD)≤ 1 kg (2.2 lb)

Specification

Specification
Recording
  • Encoding resolutionWhen 1080p lite mode is not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode is enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
  • Video bit rate32 Kbps to 4 Mbps
  • Video compressionH.264+/H.264
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
Video and Audio
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback8-ch
  • IP video input2-ch (up to 10-ch);Up to 960P resolution;Support H.264+/H.264 IP cameras
  • HDTVI input1080p25, 1080p30, 720p25, 720p30
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Analog video input8-ch;Balun interface, supporting coaxitron connection
  • AHD input1080p25, 1080p30, 720p25, 720p30
  • CVBS outputN/A
  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections128
  • Network interface1,RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
  • CapacityUp to 6 TB capacity for each disk
  • Serial interfaceN/A
  • USB interfaceRear panel: 2 × USB 2.0
  • Alarm in/outN/A
  • SATA1 SATA interface
General
  • Consumption(without HDD)≤ 12 W
  • Working humidity10% to 90%
  • Power supply12 VDC
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
  • Weights (without HDD)≤ 1 kg (2.2 lb)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
