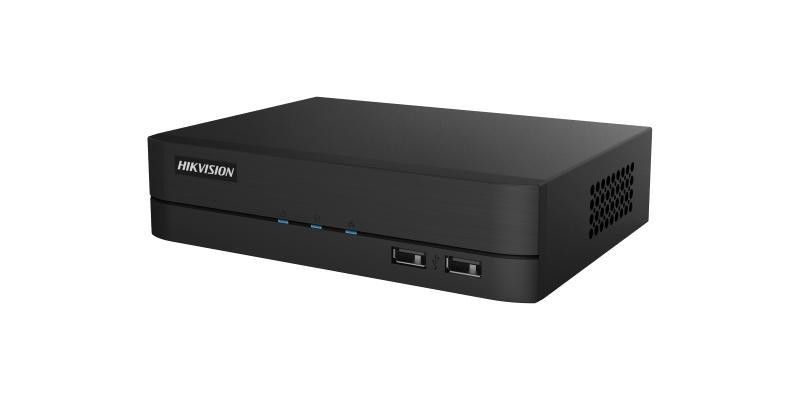

4-ch 1080p 1U H.265 SSD DVR

  • 4 channels and 1 SSD 165 case DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 4MP lite @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 6 network cameras can be connected
View Less
View more
Sales Inquiry
DS-7204HQHI-K1/SSD

Specification

  • Recording
  • Encoding resolutionWhen 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
  • Video bit rate32 Kbps to 6 Mbps
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Video and Audio
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback4-ch
  • IP video input2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Analog video input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS outputPAL/NTSC
  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
  • Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections32
  • Network interfaceTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Auxiliary interface
  • CapacityDS-7204HQHI-K1/SSD(512G) :Pre-installed 512 GB SSD DS-7204HQHI-K1/SSD(1T) :Pre-installed 1 TB SSD
  • Serial interfaceN/A
  • USB interface2 × USB 2.0
  • Alarm in/outN/A
  • SATA1 mSATA interface
  • General
  • Consumption(without HDD)≤ 14 W
  • Working humidity10% to 90%
  • Power supply12 VDC
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)165 × 110 × 42 mm (6.5 × 4.3 × 1.7 inch)
  • Weights (without HDD)≤ 0.5 kg (1.1 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Recording
Encoding resolution
When 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Video bit rate
32 Kbps to 6 Mbps
Video compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Dual stream
Support
Stream type
Video, Video & Audio
Audio compression
G.711u
Audio bit rate
64 Kbps
Video and Audio
Audio input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output
1-ch, RCA (Linear, 1 KΩ)
Synchronous playback
4-ch
IP video input
2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
HDTVI input
4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1
HDCVI input
1080p25, 1080p30, 720p25, 720p30
CVBS input
PAL/NTSC
Two-way audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Analog video input
4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD input
4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS output
PAL/NTSC
HDMI/VGA output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
Network
Network protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote connections
32
Network interface
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Auxiliary interface
Capacity
DS-7204HQHI-K1/SSD(512G) :Pre-installed 512 GB SSD DS-7204HQHI-K1/SSD(1T) :Pre-installed 1 TB SSD
Serial interface
N/A
USB interface
2 × USB 2.0
Alarm in/out
N/A
SATA
1 mSATA interface
General
Consumption(without HDD)
≤ 14 W
Working humidity
10% to 90%
Power supply
12 VDC
Working temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Dimensions(W × D × H)
165 × 110 × 42 mm (6.5 × 4.3 × 1.7 inch)
Weights (without HDD)
≤ 0.5 kg (1.1 lb)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Recording
  • Encoding resolutionWhen 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
  • Video bit rate32 Kbps to 6 Mbps
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
Video and Audio
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Synchronous playback4-ch
  • IP video input2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Analog video input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS outputPAL/NTSC
  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
Network
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote connections32
  • Network interfaceTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Auxiliary interface
  • CapacityDS-7204HQHI-K1/SSD(512G) :Pre-installed 512 GB SSD DS-7204HQHI-K1/SSD(1T) :Pre-installed 1 TB SSD
  • Serial interfaceN/A
  • USB interface2 × USB 2.0
  • Alarm in/outN/A
  • SATA1 mSATA interface
General
  • Consumption(without HDD)≤ 14 W
  • Working humidity10% to 90%
  • Power supply12 VDC
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H)165 × 110 × 42 mm (6.5 × 4.3 × 1.7 inch)
  • Weights (without HDD)≤ 0.5 kg (1.1 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
