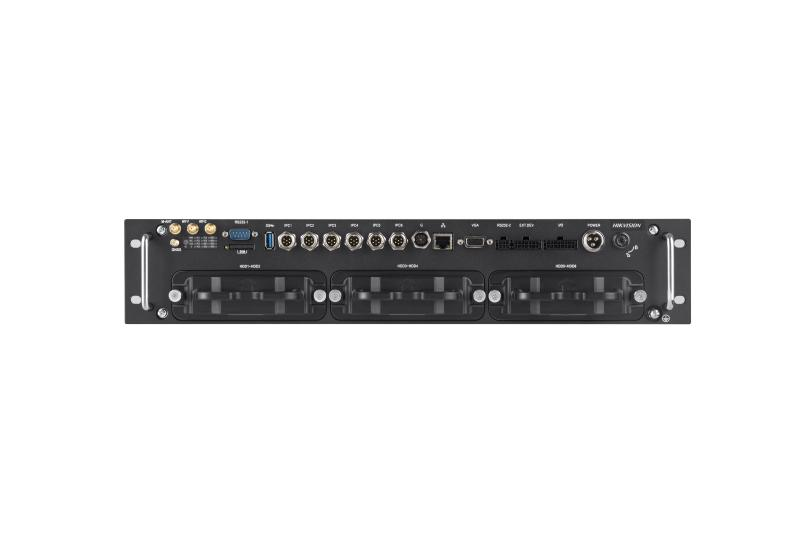

DS-MP3516-RH

EOL

32-ch 1080p, H.265, 6 x HDD/SSD Mobile NVR

Up to 32-ch 2 MP IP cameras via 8-pin M12 X-coding ethernet interface
Efficient H.265 compression technology
Supports up to 6 × 2.5 inch HDDs/SSDs (up to 2 TB for each)
Supports GPS positioning
Dedicated for railway scenarios
Optional model for different power supply scenarios (powered by 48 VDC or 110 VDC)

View Less

Available models:

DS-MP3516-RH(DC110V)

DS-MP3516-RH(DC48V)

Video/Audio Input
IP Camera32-ch
Two-way Audio1, integrated in EXT.DEV interface

Video/Audio Output
Video Output1 CVBS output (PAL: 704 × 576, NTSC: 704 × 480), 1 VGA output (1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768)
Audio Output1

Storage
HDD/SSD6 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD

External Interface
Network Interface1 × 10M/100M RJ45 Ethernet interface (for debugging)
USB Interface1 × USB 3.0
Alarm Input8 high/low level signal inputs, 1 pulse signal input (reserved)
Alarm Output2 relay signal outputs
Serial Port2 × RS-232 (1 x DB9 for debugging; 1 x 6-pin plastic plug, used with alarm button of DS-1530HM), 1 × RS-422 (integrated in EXT.DEV interface)
Sensor-in8 high/low level signal inputs, 1 pulse signal input (reserved)

General
Working Temperature● Device of which the dummy HDD provides heating function: -30 °C to +60 °C (-22 °F to +140 °F) ● Other devices: -10 °C to +60 °C (+14 °F to +140°F)
Working Humidity10% to 95%
Power Supply60 to 160 VDC (110 VDC recommended) 18 to 60 VDC (48 VDC recommended)
ConsumptionStandby: ≤ 0.5 W Full load: ≤ 99 W Bare: ≤ 20 W (without display, camera, and HDD)
Operating MethodMouse, IR remote control, Web control
Dimensions (W × D × H)482 × 284.3 × 89.5 mm (19.0 × 11.2 × 3.5 inch)
Weight (Without Storage Media)6.5 kg (14.3 lb)

Positioning
GNSS (Global Navigation Satellite System)GPS (default) & GLONASS, 1 × SMA antenna

Encoding/Decoding Parameters
Video CompressionH.264, H.265
Encoding ResolutionMain stream: 1080p/720p/WD1/4CIF Sub-stream: 720p/WD1/4CIF
Frame RatePAL: 1 to 25fps; NTSC: 1 to 30fps
Audio CompressionG.711/G.722.1
Stream TypeVideo, video & audio
Audio Bitrate16 Kbps
Dual StreamSupported

Specification

Video/Audio Input

IP Camera

32-ch

Two-way Audio

1, integrated in EXT.DEV interface

Video/Audio Output

Video Output

1 CVBS output (PAL: 704 × 576, NTSC: 704 × 480), 1 VGA output (1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768)

Audio Output

Storage

HDD/SSD

6 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD

External Interface

Network Interface

1 × 10M/100M RJ45 Ethernet interface (for debugging)

USB Interface

1 × USB 3.0

Alarm Input

8 high/low level signal inputs, 1 pulse signal input (reserved)

Alarm Output

2 relay signal outputs

Serial Port

2 × RS-232 (1 x DB9 for debugging; 1 x 6-pin plastic plug, used with alarm button of DS-1530HM), 1 × RS-422 (integrated in EXT.DEV interface)

Sensor-in

8 high/low level signal inputs, 1 pulse signal input (reserved)

General

Working Temperature

● Device of which the dummy HDD provides heating function: -30 °C to +60 °C (-22 °F to +140 °F) ● Other devices: -10 °C to +60 °C (+14 °F to +140°F)

Working Humidity

10% to 95%

Power Supply

60 to 160 VDC (110 VDC recommended) 18 to 60 VDC (48 VDC recommended)

Consumption

Standby: ≤ 0.5 W Full load: ≤ 99 W Bare: ≤ 20 W (without display, camera, and HDD)

Operating Method

Mouse, IR remote control, Web control

Dimensions (W × D × H)

482 × 284.3 × 89.5 mm (19.0 × 11.2 × 3.5 inch)

Weight (Without Storage Media)

6.5 kg (14.3 lb)

Positioning

GNSS (Global Navigation Satellite System)

GPS (default) & GLONASS, 1 × SMA antenna

Encoding/Decoding Parameters

Video Compression

H.264, H.265

Encoding Resolution

Main stream: 1080p/720p/WD1/4CIF Sub-stream: 720p/WD1/4CIF

Frame Rate

PAL: 1 to 25fps; NTSC: 1 to 30fps

Audio Compression

G.711/G.722.1

Stream Type

Video, video & audio

Audio Bitrate

16 Kbps

Dual Stream

Supported
