EOL

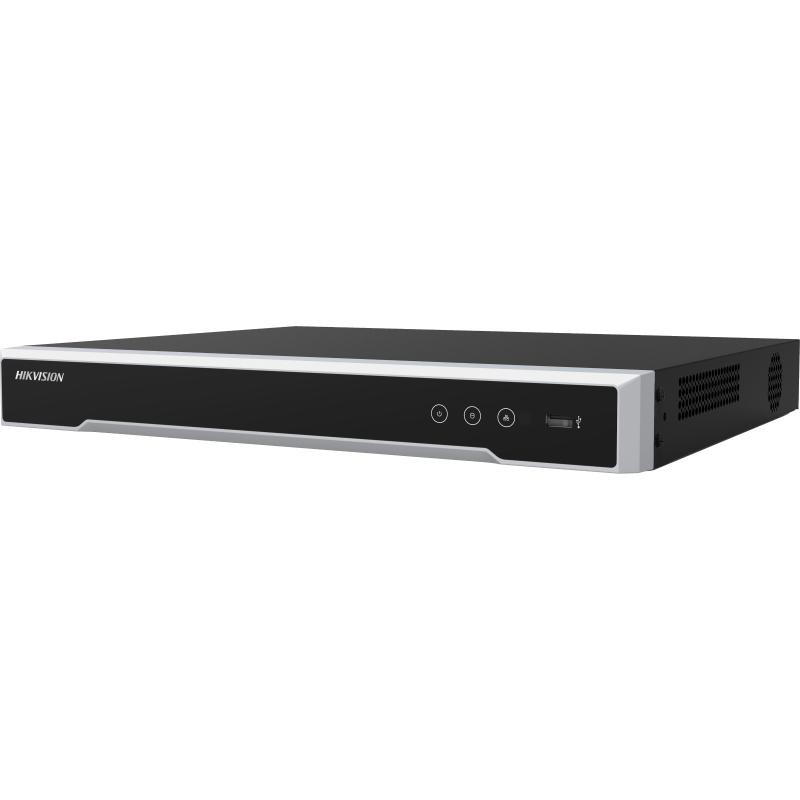

32-ch 1U 4K NVR

  • Up to 32 channel IP cameras can be connected
  • Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding capacity
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 2 HDDs for continuous video recording
  • Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
  • Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
  • Supports dual-stream recording to save time and bandwidth
  • Up to 8-ch IP speakers can be connected
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-7632NI-I2
DS-7632NI-I2
EOL
Data Sheet

Specification

  • Video and Audio
  • IP Video Input32-ch Up to 12 MP resolution
  • Incoming Bandwidth256 Mbps
  • Outgoing Bandwidth256 Mbps
  • HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output ModeHDMI/VGA independent output
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264
  • Decoding Capability2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
  • Synchronous playback16-ch
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
  • Network
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
  • Remote Connection128
  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Camera Access ProtocolONVIF(Version 2.5), RTSP
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 16 TB capacity for each disk
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out4/1
  • General
  • Power Supply12 VDC, 3.33 A
  • Consumption≤15 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0") or 440 × 393 × 75 mm (17.3" × 15.5" × 3.0")
  • Weight≤ 1 kg (2.2 lb)
  • Certification
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
  • Obtained CertificationCE, CB, UKCA, IC
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video and Audio
IP Video Input
32-ch Up to 12 MP resolution
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
256 Mbps
HDMI Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode
HDMI/VGA independent output
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
Decoding Format
H.265+,H.265,H.264+,H.264
Decoding Capability
2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
Synchronous playback
16-ch
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726
Network
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Remote Connection
128
Network Interface
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol
ONVIF(Version 2.5), RTSP
Auxiliary Interface
SATA
2 SATA interfaces
Capacity
Up to 16 TB capacity for each disk
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
4/1
General
Power Supply
12 VDC, 3.33 A
Consumption
≤15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
385 × 315× 52 mm (15.2" × 12.4" × 2.0") or 440 × 393 × 75 mm (17.3" × 15.5" × 3.0")
Weight
≤ 1 kg (2.2 lb)
Certification
CE
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained Certification
CE, CB, UKCA, IC
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video and Audio
  • IP Video Input32-ch Up to 12 MP resolution
  • Incoming Bandwidth256 Mbps
  • Outgoing Bandwidth256 Mbps
  • HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output ModeHDMI/VGA independent output
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264
  • Decoding Capability2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
  • Synchronous playback16-ch
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
Network
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
  • Remote Connection128
  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Camera Access ProtocolONVIF(Version 2.5), RTSP
Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 16 TB capacity for each disk
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out4/1
General
  • Power Supply12 VDC, 3.33 A
  • Consumption≤15 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0") or 440 × 393 × 75 mm (17.3" × 15.5" × 3.0")
  • Weight≤ 1 kg (2.2 lb)
Certification
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
  • Obtained CertificationCE, CB, UKCA, IC
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V4.61.030_240123
Applied to:
DS-7632NI-I2
