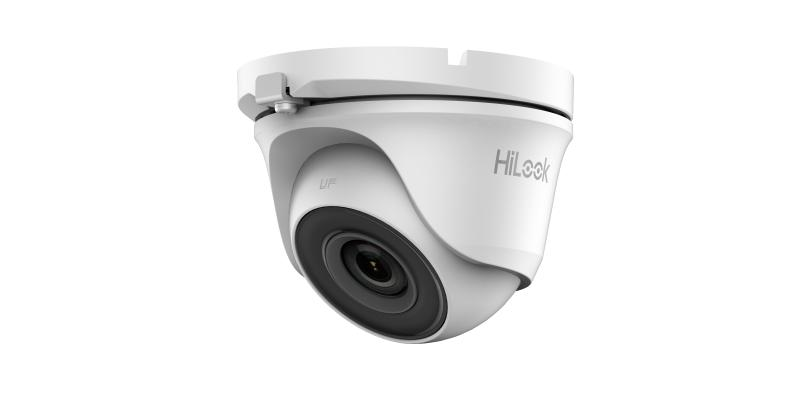

2 MP Fixed Turret Camera

1080p turret camera
Smart IR, up to 20 m IR distanceWater resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

View Less

Data Sheet

Available models:

THC-T120-MC(2.8mm)(HiLook STD)

THC-T120-MC

EOL

Specification
Resources
Accessories

Data Sheet

Interface
Video Output1 HD analog output
Switch ButtonTVI/AHD/CVI/CVBS

Menu
Day/Night ModeIR cut filter
DWDR (Digital Wide Dynamic Range)Support
LanguageEnglish
FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR
Backlight CompensationSupport

Camera
Image Sensor2 MP CMOS image sensor
Signal SystemPAL/NTSC
Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
Resolution1920 (H) × 1080 (V)
Shutter Time1/25 (1/30) s to 1/50,000 s
Min. illumination0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
Lens2.8 mm, 3.6 mm
Horizontal Field of View103°(2.8 mm), 80.7°(3.6 mm), 50.1°(6 mm)
Lens MountM12
Day & NightIR cut filter
SynchronizationInternal synchronization
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

General
Power Supply12 VDC ± 15%
Power ConsumptionMax. 4 W
MaterialMetal
IR RangeUp to 20 m
DimensionsØ 82.6 mm × 69.66 mm (Ø 3.38" × 2.74")
Weight230 g (0.51 lb.)
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Ingress ProtectionIP66

Interface

Video Output

1 HD analog output

Switch Button

TVI/AHD/CVI/CVBS

Day/Night Mode

IR cut filter

DWDR (Digital Wide Dynamic Range)

Support

Language

English

Functions

Brightness, Sharpness, DNR, Mirror, Smart IR

Backlight Compensation

Support

Camera

Image Sensor

2 MP CMOS image sensor

Signal System

PAL/NTSC

Frame Rate

PAL: 1080p@25fps NTSC: 1080p@30fps

Resolution

1920 (H) × 1080 (V)

Shutter Time

1/25 (1/30) s to 1/50,000 s

Min. illumination

0.02 Lux@(F1.2, AGC ON), 0 Lux with IR

Lens

2.8 mm, 3.6 mm

Horizontal Field of View

103°(2.8 mm), 80.7°(3.6 mm), 50.1°(6 mm)

Lens Mount

M12

Day & Night

IR cut filter

Synchronization

Internal synchronization

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

General

Power Supply

12 VDC ± 15%

Power Consumption

Max. 4 W

Material

Metal

IR Range

Up to 20 m

Dimensions

Ø 82.6 mm × 69.66 mm (Ø 3.38" × 2.74")

Weight

230 g (0.51 lb.)

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Ingress Protection

IP66

Interface

Video Output1 HD analog output
Switch ButtonTVI/AHD/CVI/CVBS

Day/Night ModeIR cut filter
DWDR (Digital Wide Dynamic Range)Support
LanguageEnglish
FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR
Backlight CompensationSupport

Camera

Image Sensor2 MP CMOS image sensor
Signal SystemPAL/NTSC
Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
Resolution1920 (H) × 1080 (V)
Shutter Time1/25 (1/30) s to 1/50,000 s
Min. illumination0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
Lens2.8 mm, 3.6 mm
Horizontal Field of View103°(2.8 mm), 80.7°(3.6 mm), 50.1°(6 mm)
Lens MountM12
Day & NightIR cut filter
SynchronizationInternal synchronization
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

General

Power Supply12 VDC ± 15%
Power ConsumptionMax. 4 W
MaterialMetal
IR RangeUp to 20 m
DimensionsØ 82.6 mm × 69.66 mm (Ø 3.38" × 2.74")
Weight230 g (0.51 lb.)
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Ingress ProtectionIP66
