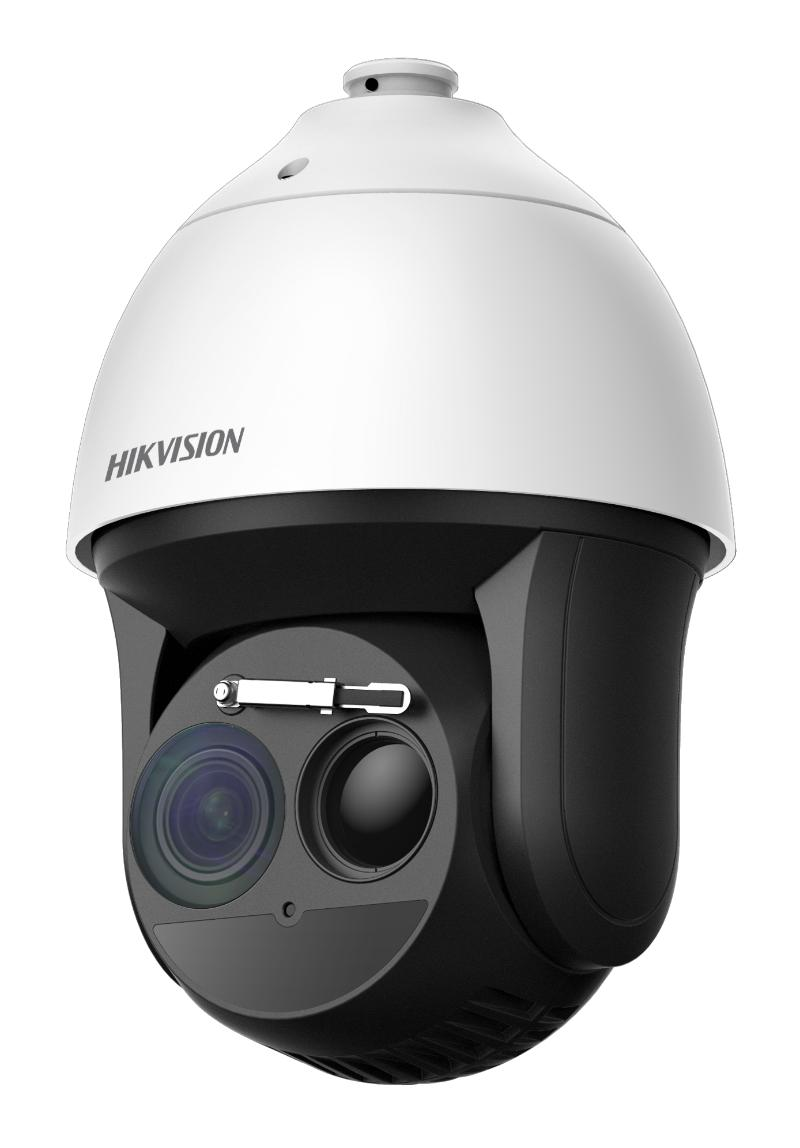

Anti-corrosion Thermal & Optical Bi-spectrum Network Speed Dome

  • Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance and exit
  • Temperature exception alarm for fire prevention
  • Fire detection algorithm
  • 384× 288 (the resolution of output image is 384 × 288) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)
  • Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
  • NEMA-4X Standard

Specification
  • Thermal Module
  • Image SensorVOx Uncooled Focal Plane Arrays
  • Resolution384 × 288
  • Pixel Interval17 μm
  • Response Waveband8 μm to 14 μm
  • NETDLess than 40 mK (@ 25 °C,F#=1.0)
  • Focal Length50 mm
  • Focus ModeAthermalized
  • IFOV0.34 mrad
  • ApertureF1.0
  • Field of View7.5° × 5.6° (H × V)
  • Min. Focusing Distance50m
  • Digital Zoom×2, ×4, ×8, ×16
  • Optical Module
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Resolution2688 × 1520, 4 MP
  • Min. IlluminationColor: 0.005 Lux @(F1.3,AGC ON), B/W: 0.001 Lux @(F1.3,AGC ON)
  • Field of View56.6° ×33.7° (H × V)~1.8° ×1.0° (H × V)
  • Focal Length6-240 mm, 40x
  • Aperture (Range)F1.3-F4.6
  • Focus ModeAuto & Semi-auto & Manual
  • Shutter Speed1s to 1/30,000s
  • WDR120 dB
  • Optical DefogYes
  • Image Effect
  • Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
  • Target ColorationSupported in white hot and black hot mode
  • PTZ
  • Movement RangePan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)
  • Pan SpeedConfigurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
  • Tilt SpeedConfigurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
  • Proportional ZoomYes
  • Presets300 in total, 273 are configurable.
  • Patrol Scan8; Up to 32 Presets Per Patrol
  • Pattern Scan4; More Than 10 Minutes Per Pattern
  • Power Off MemoryYes
  • ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PT StatusTurn On/Turn Off
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • Illuminator
  • IR DistanceUp to 150m
  • IR Intensity and AngleAutomatically adjusted
  • Smart Function
  • VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
  • Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
  • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy± 8 °C (±14.4 °F)
  • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
  • Video and Audio
  • Main StreamThermal channel 25fps;50fps(1920 × 1080, 1280 × 960, 1280 × 720,704×576,640×512,384×288) Optical channel 50Hz:25fps(2688 × 1520,1920 × 1080, 1280 × 960, 1280 × 720) 60Hz:30fps(2688 × 1520,1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-streamThermal channel 25fps;50fps(704×576,640×512,384×288) Optical channel 50Hz:25fps(704 × 576, 352 × 288) 60Hz:30fps(704 × 576, 352 × 288)
  • Video CompressionMain stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264/MJPEG
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Network StorageMicroSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
  • Interface
  • Alarm Input7-ch inputs (0-5 VDC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio OutputLinear Level; Impedance: 600 Ω
  • Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
  • Analog Video Output1.0 V [p-p]/75 Ω, BNC for thermal channel
  • General
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power24 VAC ± 25%
  • Power Consumption24V AC ± 25%: 5 A, max. 60 W
  • Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
  • WiperYes
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimension220 mm × 410 mm × 198.6 mm (8.66" × 16.15" × 7.82")
  • Approx. 9kg (19.84 lb)
