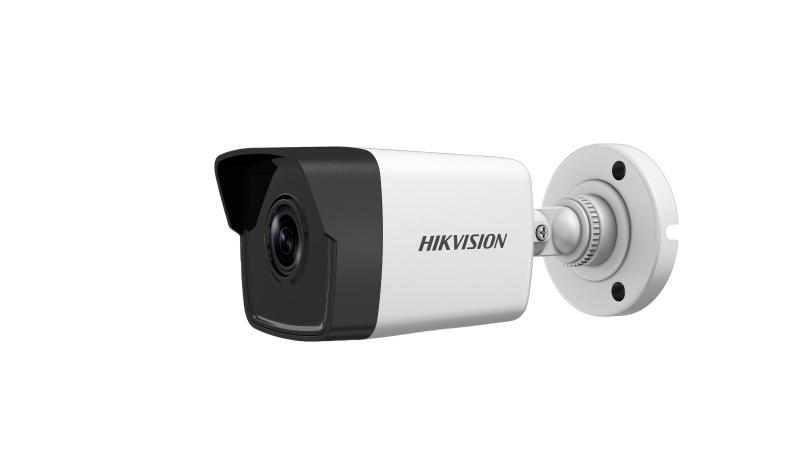

4 MP Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light with 120 dB WDR
Water and dust resistant (IP67)
EXIR 2.0, advanced infrared technology with long IR distance

View Less

Available models:

DS-2CD1043G0E-I(4mm)

DS-2CD1043G0E-I(4mm)(ITALY HIK)

DS-2CD1043G0E-I

Specification
Resources
Accessories

Camera
Image Sensor1/3" Progressive Scan CMOS
Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Day &NightIR Cut Filter
Wide Dynamic RangeDigital WDR
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens
LensFixed lens, 2.8/4 mm
ApertureF2.0
FOV2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
Lens MountM12

Illuminator
IR RangeUp to 30 m
Wavelength850nm

Video
Max. Resolution2560 × 1440
Main Stream50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 20fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
Video CompressionMain stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps to 8 Mbps

Smart Feature-Set
Basic EventMotion detection, video tampering alarm, exception (illegal login)
Region of Interest1 fixed region for main stream
Linkage MethodUpload to FTP, notify surveillance center, send email

Image EnhancementBLC, HLC, 3D DNR
Image SettingSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule
SNR> 50dB

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S), ISAPI, SDK
SecurityPassword protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserIE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11

Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Approval
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ProtectionIngress protection: IP67 (IEC 60529-2013)

General
General FunctionAnti-flicker, heartbeat, mirror, privacy mask
RispristinaReset via web browser and client software
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
Power Consumption and Current12 VDC, 0.35 A, max. 4.2 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.2 W
MaterialFront cover: metal, back cover: plastic
DimensionsCamera: 66.2 mm × 67.8 mm × 177.6 mm (2.6" × 2.7" × 7") With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")
WeightCamera: approx. 280 g (0.6 lb.) With package: approx. 501 g (1.1 lb.)

Camera

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.028 Lux @ (F2.0, AGC ON)

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day &Night

IR Cut Filter

Wide Dynamic Range

Digital WDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

Fixed lens, 2.8/4 mm

Aperture

F2.0

FOV

2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°

Lens Mount

M12

Illuminator

IR Range

Up to 30 m

Wavelength

850nm

Video

Max. Resolution

2560 × 1440

Main Stream

50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 20fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 8 Mbps

Smart Feature-Set

Basic Event

Motion detection, video tampering alarm, exception (illegal login)

Region of Interest

1 fixed region for main stream

Linkage Method

Upload to FTP, notify surveillance center, send email


Image Enhancement

BLC, HLC, 3D DNR

Image Setting

Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule

SNR

> 50dB

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S), ISAPI, SDK

Security

Password protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users,3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Approval

EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Safety

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1

Chemistry

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protection

Ingress protection: IP67 (IEC 60529-2013)

General

General Function

Anti-flicker, heartbeat, mirror, privacy mask

Rispristina

Reset via web browser and client software

Startup and Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.35 A, max. 4.2 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.2 W

Material

Front cover: metal, back cover: plastic

Dimensions

Camera: 66.2 mm × 67.8 mm × 177.6 mm (2.6" × 2.7" × 7") With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")

Weight

Camera: approx. 280 g (0.6 lb.) With package: approx. 501 g (1.1 lb.)
