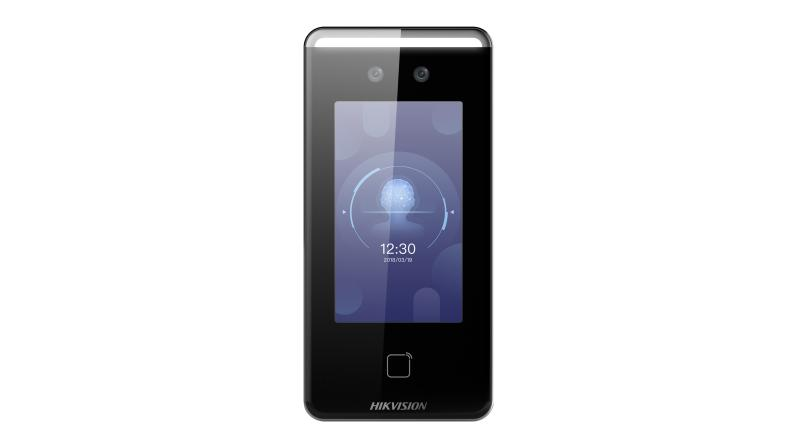

DS-K1T341AM-S

  • Face recognition distance: 0.3 m to 1.5 m
  • 1500 face capacity, 1,500 card capacity and 150,000 event capacity
  • Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
  • Two-way audio with indoor station and master station
  • Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
  • Configuration via the web client
  • Remotely opens door and starts live view via Hik-Connect
  • Supports ISAPI and EHome 5.0 protocols
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1T341AM-S/Europe BV
DS-K1T341AM-S
Data Sheet

Specification

  • Display
  • Dimensions4.3-inch
  • TipologiaLCD
  • Operation methodCapacitive touch screen
  • Video
  • FOVHFOV = 41.5°; VFOV = 75.5°; DFOV = 87°
  • Pixel2 MP (video stream: 720P)
  • Lens× 2
  • Audio
  • Tone qualityNoise suppression and echo cancellation
  • Network
  • Wired network10 M/100 M/1000 M self-adaptive
  • Interface
  • Network interface1
  • Lock output1
  • Exit button1
  • Door contact input1
  • Power interface2-pin
  • Authentication
  • Card typeM1 card
  • Card reading frequency13.56MHz
  • General
  • buttonTouch Screen
  • Power supply method2 pin connecter
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions172.5 mm × 83.2 mm × 22.7 mm (6.79" × 3.27" × 0.89")
  • Application environmentIndoor and outdoor
  • InstallationSurface mounting
  • Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display
Dimensions
4.3-inch
Tipologia
LCD
Operation method
Capacitive touch screen
Video
FOV
HFOV = 41.5°; VFOV = 75.5°; DFOV = 87°
Pixel
2 MP (video stream: 720P)
Lens
× 2
Audio
Tone quality
Noise suppression and echo cancellation
Network
Wired network
10 M/100 M/1000 M self-adaptive
Interface
Network interface
1
Lock output
1
Exit button
1
Door contact input
1
Power interface
2-pin
Authentication
Card type
M1 card
Card reading frequency
13.56MHz
General
button
Touch Screen
Power supply method
2 pin connecter
Working temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity
0 to 90% (No condensing)
Dimensions
172.5 mm × 83.2 mm × 22.7 mm (6.79" × 3.27" × 0.89")
Application environment
Indoor and outdoor
Installation
Surface mounting
Function
QR code recognition
Support
Face anti-spoofing
Support
Audio prompt
Support
Time synchronization
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display
  • Dimensions4.3-inch
  • TipologiaLCD
  • Operation methodCapacitive touch screen
Video
  • FOVHFOV = 41.5°; VFOV = 75.5°; DFOV = 87°
  • Pixel2 MP (video stream: 720P)
  • Lens× 2
Audio
  • Tone qualityNoise suppression and echo cancellation
Network
  • Wired network10 M/100 M/1000 M self-adaptive
Interface
  • Network interface1
  • Lock output1
  • Exit button1
  • Door contact input1
  • Power interface2-pin
Authentication
  • Card typeM1 card
  • Card reading frequency13.56MHz
General
  • buttonTouch Screen
  • Power supply method2 pin connecter
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions172.5 mm × 83.2 mm × 22.7 mm (6.79" × 3.27" × 0.89")
  • Application environmentIndoor and outdoor
  • InstallationSurface mounting
Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
