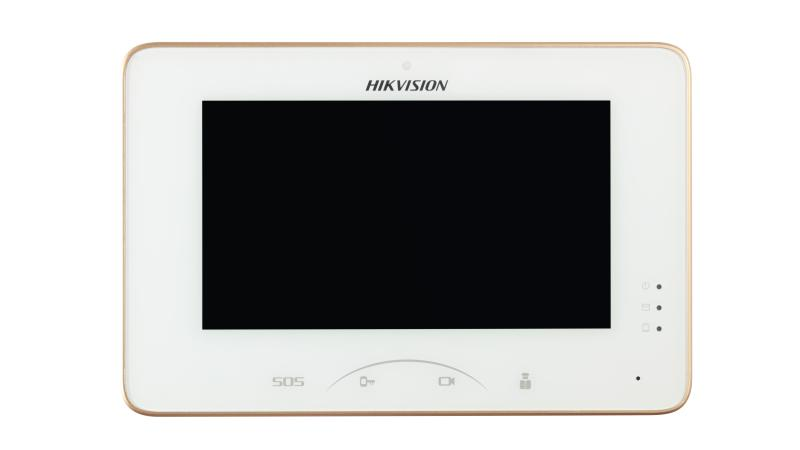

DS-KH8300

EOL

KH8 Series Indoor Station

  • IP indoor station
  • 7“ Touch-Screen Indoor Station
  • 7-inch Colorful TFT LCD
  • 8-ch alarm input, Power Over Network Cable/ 12 VDC.
View Less
View more
Sales Inquiry

Available models:

DS-KH8301-WTWhite Gold
DS-KH8300
EOL

Specification

  • System parameters
  • ProcessorHigh-Performance Embedded SOC Processor
  • Operation systemEmbedded Linux Operation System
  • Network parameters
  • Ethernet10/100 Mbps Self-Adaptive Ethernet
  • Network protocolTCP/IP, RTSP
  • Device interfaces
  • Network interface1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
  • I/O output2
  • RS-4851 RS-485 Half-Duplex Port
  • TF card (micro SD card)TF Card, Support Max. 32GB
  • General
  • Power supply24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)12 VDC
  • Power consumption≤10 W
  • Working temperature-10° C to + 55° C (14° F to 131° F)
  • Working humidity10% to 90%
  • Memory256 M
  • CertificationFCC, IC, CE, C-TICK, ROHS, REACH, WEEE
  • Dimensions(L × W × H)217 mm × 142 mm × 26 mm (8.5" × 5.6" × 1.0")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System parameters
Processor
High-Performance Embedded SOC Processor
Operation system
Embedded Linux Operation System
Network parameters
Ethernet
10/100 Mbps Self-Adaptive Ethernet
Network protocol
TCP/IP, RTSP
Device interfaces
Network interface
1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
I/O output
2
RS-485
1 RS-485 Half-Duplex Port
TF card (micro SD card)
TF Card, Support Max. 32GB
General
Power supply
24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)12 VDC
Power consumption
≤10 W
Working temperature
-10° C to + 55° C (14° F to 131° F)
Working humidity
10% to 90%
Memory
256 M
Certification
FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Dimensions(L × W × H)
217 mm × 142 mm × 26 mm (8.5" × 5.6" × 1.0")
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System parameters
  • ProcessorHigh-Performance Embedded SOC Processor
  • Operation systemEmbedded Linux Operation System
Network parameters
  • Ethernet10/100 Mbps Self-Adaptive Ethernet
  • Network protocolTCP/IP, RTSP
Device interfaces
  • Network interface1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
  • I/O output2
  • RS-4851 RS-485 Half-Duplex Port
  • TF card (micro SD card)TF Card, Support Max. 32GB
General
  • Power supply24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)12 VDC
  • Power consumption≤10 W
  • Working temperature-10° C to + 55° C (14° F to 131° F)
  • Working humidity10% to 90%
  • Memory256 M
  • CertificationFCC, IC, CE, C-TICK, ROHS, REACH, WEEE
  • Dimensions(L × W × H)217 mm × 142 mm × 26 mm (8.5" × 5.6" × 1.0")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.5.1_190131
Video Intercom Firmware V1.5.1 Release Notes
Applied to:
DS-KH8301-WTWhite Gold
