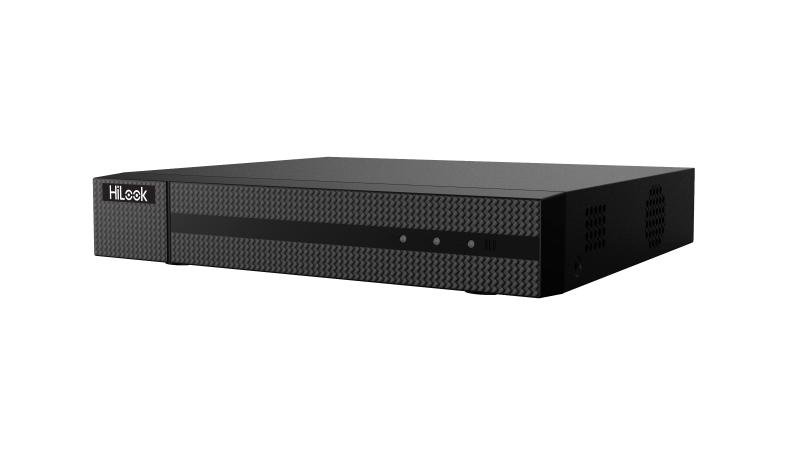

4-ch Mini 1U 4 PoE 4K NVR

  • Up to 4 channel IP cameras can be connected
  • Plug & Play with 4 Power-over-Ethernet (PoE) interfaces
  • Supports decoding H.265+/H.265/H.264+/H.264 multiple video formats
  • Up to 4-ch @ 1080p decoding capacity
  • 1 HDD for continuous video recording.
View Less
View more
Sales Inquiry

Available models:

DS-HiLookI-NVR-104MH-C/4P(B)
NVR-104MH-C/4P(B)
EOL

Specification

  • Video and Audio
  • IP video input4-ch ,Up to 8 MP resolution
  • HDMI/VGA outputHDMI：1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output,VGA：1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output
  • Incoming bandwidth40 Mbps
  • Outgoing bandwidth80 Mbps
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Two-way audio input1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding formatH.265/H.265+/H.264/H.264+/MPEG4
  • Recording resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback4-ch
  • Live view/Playback resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Capability1-ch @ 8 MP / 4-ch @ 1080p
  • Network
  • Network interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Network protocolsIPv6, HTTPS, UPnP, NTP, SADP, SMTP, PPPoE, DDNS, iSCSI, NFS
  • Remote connection16
  • PoE
  • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Max. Power≤ 50W
  • Supported standardIEEE 802.3 af/at
  • Hard disk
  • SATA1 SATA interface
  • CapacityUp to 6TB capacity for each disk
  • External interface
  • USB interface2 × USB 2.0
  • General
  • Power≤ 65 W
  • Power supply48 VDC
  • Working temperature-10 to +55º C (+14 to +131º F)
  • Working humidity10 to 90 %
  • Consumption(without hard disk)≤ 10 W (without enabling PoE)
  • Dimensions(W × D × H)265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
  • Weight(without hard disk)≤ 1 kg (2.2 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video and Audio
IP video input
4-ch ,Up to 8 MP resolution
HDMI/VGA output
HDMI：1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output,VGA：1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output
Incoming bandwidth
40 Mbps
Outgoing bandwidth
80 Mbps
Audio output
1-ch, RCA (Linear, 1 KΩ)
Two-way audio input
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
Decoding format
H.265/H.265+/H.264/H.264+/MPEG4
Recording resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback
4-ch
Live view/Playback resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Capability
1-ch @ 8 MP / 4-ch @ 1080p
Network
Network interface
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Network protocols
IPv6, HTTPS, UPnP, NTP, SADP, SMTP, PPPoE, DDNS, iSCSI, NFS
Remote connection
16
PoE
Interface
4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Max. Power
≤ 50W
Supported standard
IEEE 802.3 af/at
Hard disk
SATA
1 SATA interface
Capacity
Up to 6TB capacity for each disk
External interface
USB interface
2 × USB 2.0
General
Power
≤ 65 W
Power supply
48 VDC
Working temperature
-10 to +55º C (+14 to +131º F)
Working humidity
10 to 90 %
Consumption(without hard disk)
≤ 10 W (without enabling PoE)
Dimensions(W × D × H)
265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
Weight(without hard disk)
≤ 1 kg (2.2 lb)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video and Audio
  • IP video input4-ch ,Up to 8 MP resolution
  • HDMI/VGA outputHDMI：1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output,VGA：1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output
  • Incoming bandwidth40 Mbps
  • Outgoing bandwidth80 Mbps
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Two-way audio input1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
  • Decoding formatH.265/H.265+/H.264/H.264+/MPEG4
  • Recording resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback4-ch
  • Live view/Playback resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Capability1-ch @ 8 MP / 4-ch @ 1080p
Network
  • Network interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Network protocolsIPv6, HTTPS, UPnP, NTP, SADP, SMTP, PPPoE, DDNS, iSCSI, NFS
  • Remote connection16
PoE
  • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Max. Power≤ 50W
  • Supported standardIEEE 802.3 af/at
Hard disk
  • SATA1 SATA interface
  • CapacityUp to 6TB capacity for each disk
External interface
  • USB interface2 × USB 2.0
General
  • Power≤ 65 W
  • Power supply48 VDC
  • Working temperature-10 to +55º C (+14 to +131º F)
  • Working humidity10 to 90 %
  • Consumption(without hard disk)≤ 10 W (without enabling PoE)
  • Dimensions(W × D × H)265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
  • Weight(without hard disk)≤ 1 kg (2.2 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V4.30.080_210331
Applied to:
DS-HiLookI-NVR-104MH-C/4P(B)
