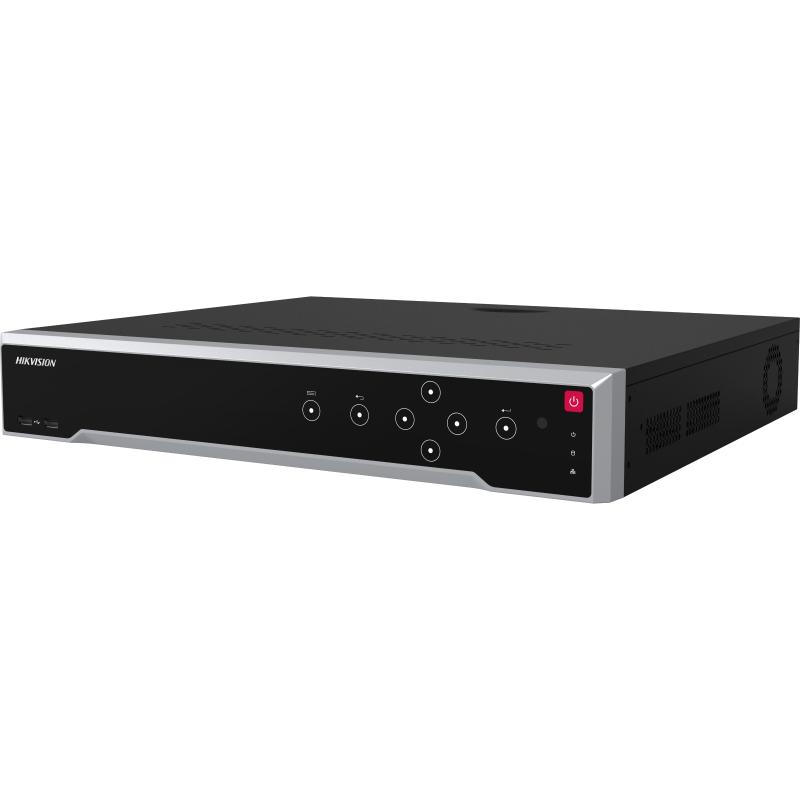

32-ch 1.5U 24 PoE 4K NVR

  • Up to 32 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 12 MP high-definition live view, storage and playback
  • Up to 2-ch @ 12 MP/16-ch @ 1080p decoding capacity
  • Up to 320 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 2 HDMI and 1 VGA interfaces: HDMI interfaces support independent video output
  • 4 HDDs for continuous video recording
  • Compatible with third-party network cameras
  • Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
  • Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
  • Supports dual-stream recording to save time and bandwidth
Specification
  • Video and Audio
  • IP video input32-ch,Up to 12 MP resolution
  • Video resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF /DCIF/ 2CIF/CIF/QCIF
  • Incoming/outgoing bandwidth256 Mbps,320Mbps
  • VGA1 /HDMI1 outputHDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Two-way audio input1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding formatH.265+/H.265/H.264+/H.264/MPEG4
  • Recording resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF /DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback16-ch
  • Capability2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (30fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
  • Network
  • Remote connections128
  • Network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SNMP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • POE Interface
  • Interface24 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
  • Power≤ 210W
  • Supported standardIEEE 802.3 af/at
  • Hard disk
  • SATA4 SATA interfaces for 4HDDs
  • eSATA (optional)1 eSATA interface
  • CapacityUp to 8 TB capacity for each HDD
  • External interface
  • Serial port1 RS-485 (half-duplex), 1 RS-232
  • USB interfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm in/out16/4 (Optonal: 16/8)
  • General
  • Power supply100 to 240 VAC,≤ 360 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10 to 90 %
  • Dimensions (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
  • Weight (without hard disk)≤ 5 kg (11 lb)
  • Consumption (without HDD and PoE)≤ 20 W
