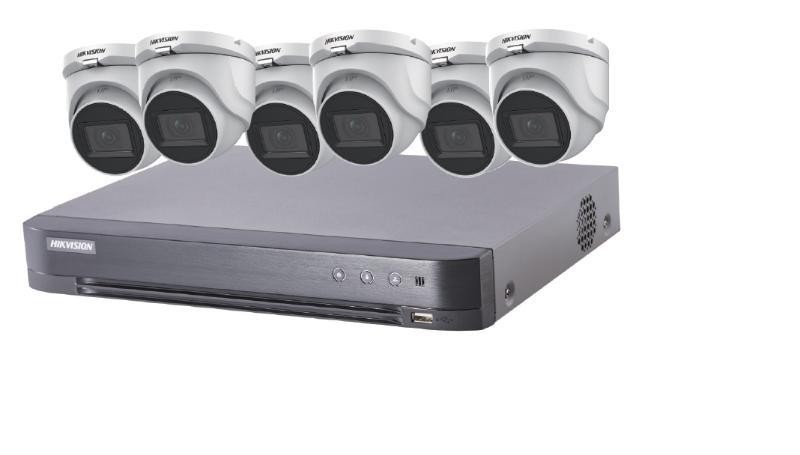

Turbo HD 5MP 6 Camera KIT

  • Cameras: 5 MP High Performance CMOS
  • Up to 2560 x 1944 Resolution
  • 2.8 mm Fixed Lens
  • DVR: 8-ch 6 MP IP Cameras Input (16-ch if Analog Channels Are Disabled)
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • 1 SATA Interface (10 TB Capacity per HDD)
View Less
View more
Data Sheet
Sales Inquiry
T7208U2TA6
Data Sheet

Specification

  • Video and Audio
  • IP Video Input4-ch (up to 12-ch) Up to 8 MP resolution Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps ;Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDMI OutputHDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
  • CVBS InputPAL/NTSC
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Synchronous playback8-ch
  • HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
  • AHD Input5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionMain stream: 8 MP@8 fps/5 MP@12 fps/ 4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Bitrate32 Kbps to 10 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Network
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection64
  • Network Interface1,RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB Interface1 × USB 2.0； 1 × USB 3.0
  • Alarm In/OutN/A
  • General
  • Power Supply12 VDC
  • Consumption≤ 10 W
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
  • Weight≤ 2 kg (4.4 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video and Audio
IP Video Input
4-ch (up to 12-ch) Up to 8 MP resolution Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps ;Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
CVBS Input
PAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback
8-ch
HDTVI Input
8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
AHD Input
5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
Main stream: 8 MP@8 fps/5 MP@12 fps/ 4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate
32 Kbps to 10 Mbps
Dual-stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection
64
Network Interface
1,RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 10 TB capacity for each disk
Serial Interface
RS-485 (half-duplex)
USB Interface
1 × USB 2.0； 1 × USB 3.0
Alarm In/Out
N/A
General
Power Supply
12 VDC
Consumption
≤ 10 W
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight
≤ 2 kg (4.4 lb)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video and Audio
  • IP Video Input4-ch (up to 12-ch) Up to 8 MP resolution Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps ;Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDMI OutputHDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
  • CVBS InputPAL/NTSC
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Synchronous playback8-ch
  • HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
  • AHD Input5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionMain stream: 8 MP@8 fps/5 MP@12 fps/ 4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Bitrate32 Kbps to 10 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
Network
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection64
  • Network Interface1,RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 10 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB Interface1 × USB 2.0； 1 × USB 3.0
  • Alarm In/OutN/A
General
  • Power Supply12 VDC
  • Consumption≤ 10 W
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
  • Weight≤ 2 kg (4.4 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
