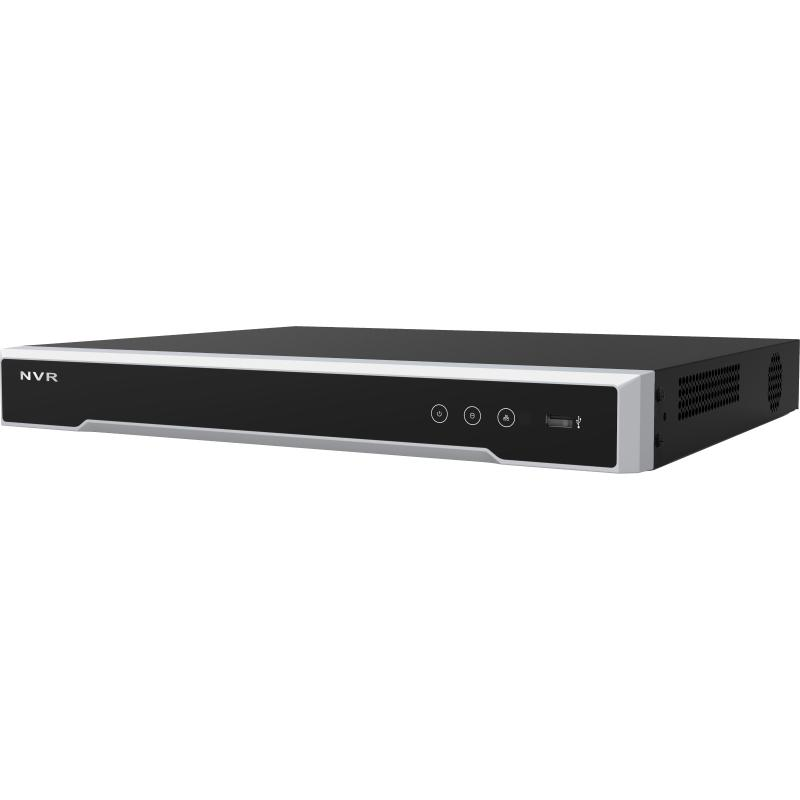

16-ch 1U 16 PoE 4K NVR

  • Up to 16-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
  • Up to 160 Mbps incoming bandwidth

View Less
View more
Data Sheet
Sales Inquiry
ERI-K216-P16
Data Sheet

Specification

  • Motion Detection 2.0
  • Human/Vehicle AnalysisYes
  • By NVR4-ch
  • By CameraYes
  • Video and Audio
  • IP Video Input16-ch
  • Incoming Bandwidth160 Mbps
  • Outgoing Bandwidth80 Mbps
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback16-ch
  • Network
  • Remote Connection32
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface16-ch
  • Power≤ 150 W
  • StandardIEEE 802.3 af/at
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 8 TB capacity for each disk
  • USB Interface2 × USB 2.0
  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 15 W (without HDD and PoE off)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Chassis1U chassis
  • Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
  • Weight≤ 2.6 kg (without HDD, 5.7 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Motion Detection 2.0
Human/Vehicle Analysis
Yes
By NVR
4-ch
By Camera
Yes
Video and Audio
IP Video Input
16-ch
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
80 Mbps
Video Output Mode
HDMI/VGA simultaneous output
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
Decoding Format
H.265+,H.265,H.264+,H.264
Recording Resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback
16-ch
Network
Remote Connection
32
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface
16-ch
Power
≤ 150 W
Standard
IEEE 802.3 af/at
Auxiliary Interface
SATA
2 SATA interfaces
Capacity
Up to 8 TB capacity for each disk
USB Interface
2 × USB 2.0
General
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 15 W (without HDD and PoE off)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10 to 90 %
Chassis
1U chassis
Dimension (W × D × H)
385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight
≤ 2.6 kg (without HDD, 5.7 lb.)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Motion Detection 2.0
  • Human/Vehicle AnalysisYes
  • By NVR4-ch
  • By CameraYes
Video and Audio
  • IP Video Input16-ch
  • Incoming Bandwidth160 Mbps
  • Outgoing Bandwidth80 Mbps
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback16-ch
Network
  • Remote Connection32
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
  • Interface16-ch
  • Power≤ 150 W
  • StandardIEEE 802.3 af/at
Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 8 TB capacity for each disk
  • USB Interface2 × USB 2.0
General
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 15 W (without HDD and PoE off)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Chassis1U chassis
  • Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
  • Weight≤ 2.6 kg (without HDD, 5.7 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
