Ultra High Definition Decoder

Support network camera, NVR, and other devices to serve as network signal source.
Support 4K (3840 × 2160@30 Hz) UHD video output via HDMI 1.4 output interface.
Support two audio output methods: embedded HDMI audio output and external audio output.
Adopt frame synchronization technology to ensure complete synchronization of images from all output interfaces, complete pictures, smooth playback, and without lag, frame loss, tearing or splicing
Support H.264 and H.265 encoding of input boards, and sub-stream and main stream encoding; the default encoding format is H.264.
Support network cameras, NVR and other network sources decoding of output boards, sub-stream and main stream decoding including H.264, H.265, Smart264, Smart265, MJPEG, HIK264 and main encapsulation formats such as PS, RTP, TS, ES.
Support encrypted stream, multi-channel stream, and smart stream decoding, stream editing and switching, and auto switching to the sub stream when the divided window quantity reaches the upper limit.
Support up to 16 video decoding channels and simultaneously decoding of 16-ch 2 MP video to the video wall.
Support decoding streams of multiple resolution no more than 32 MP.
Support rotate mode of front-end cameras decoding and up to 2560 × 1440 decoding output.

View Less

Product Model
Product Model	DC01
Interface
Alarm In	8-ch alarm in
Alarm Out	8-ch alarm out
Serial Interface	RS-232 (RJ45) × 1, RS-485 × 1
Network Interface	RJ45 × 1, 10 M/100 M/1000 Mbps self-adaptive Ethernet interface
Video Wall
Video Walls	1
Video Wall Size	1
Layers Per Screen	1080p × 3 or 4K × 1.5
Layers	Layers Per Screen × Output Interface(s)
Split Window	yes
Scenes	1
Scene Auto-Switch Delay	3 s
Split Screen	1, 2, 4, 6, 8, 9, 12, 16
Background Images	Background color Only
Subtitles	N/A (optional to support)
Delay of Displaying Local Signal Source on Video Wall	120 ms
Delay of Displaying Decoded Signal Source on Video Wall	120 ms
Auto-Switching Plans	Support 256 auto-switching plans
General
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10％ RH to 90％ RH
Gross Weight	1.44 kg (3.17 lb)
Power Consumption	< 15 W
Packing List	Decoder × 1 Quick Start Guide × 1 Regulatory Compliance and Safety Information × 1 Power Cord × 1 Grounding Wire × 1
Dimensions (W × H × D)	220 mm × 148 mm × 45 mm (8.66'' × 5.83'' × 1.77'')
Power Supply	External 12 VDC
Audio Input
Audio Input Interface Type	HDMI embedded or DB15 to BNC independent audio output
Video Input
Video Input Interfaces	0
Audio Encoding
Audio Encoding Format	G722.1, G711U, G711A, AAC-LC
Video Output
Max. Video Output Resolution	4K
Video Output Interface Type	HDMI 1.4
Video Output Interfaces	1
Video Output Resolution	3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 1600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz
Video Output Resolution (BNC)	PAL: 704 × 576@25 Hz, NTSC: 704 × 480@30 Hz
Video Output Interface (BNC)	1-ch BNC
Video Decoding
Video Decoding Format	H.264, H.265, SmartH.264, SmartH.265, MJPEG
Video Decoding Resolution	Up to 32 MP
Video Decoding Channels	16
Video Decoding Capability	Support 1-ch 32 MP/24 MP/2-ch 12 MP/4-ch 8 MP/5- ch 6 MP/ 9-ch 4 MP/16-ch 1080p and below real-time decoding
Audio Output
Audio Output Interface Type	embedded HDMI audio output or BNC
Audio Output Interfaces	1
Audio Decoding
Audio Decoding Format	G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC
Encoding and Decoding
Audio Decoding Format	G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM
Decoding
Decoding Resolution	Up to 32 MP

Physical Interface

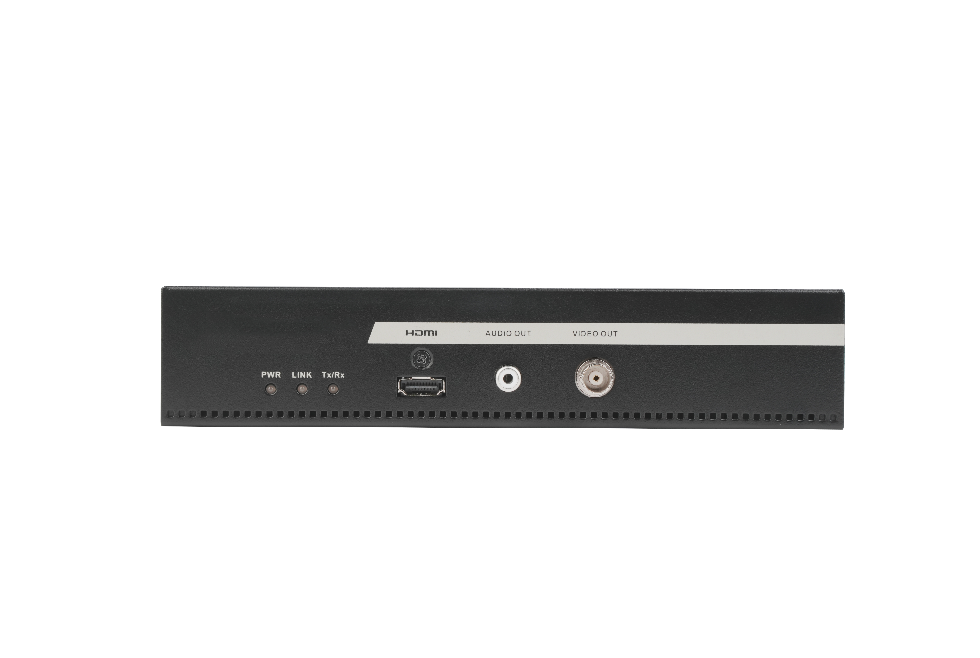

Front Panel	Description	Rear Panel	Description
PWR	Power supply indicator, red for normal working status	RS-232	RS-232 Serial Port
LINK	Network connection indicator, yellow and green for normal working status	LAN	LAN 10/100/1000 Mbps selfadaptive Ethernet interface, as a management network interface
Tx/Rx	Data transmitting status Indicator, flashing yellow for normal working status	RS-485	RS-485 Interface
HDMI	HDMI Output Interface	ALARM	8-ch Alarm In/Out
AUDIO OUT	Audio Output Interface	DC12 V	Power Supply DC 12 V
VIDEO OUT	BNC Video Output Interface
