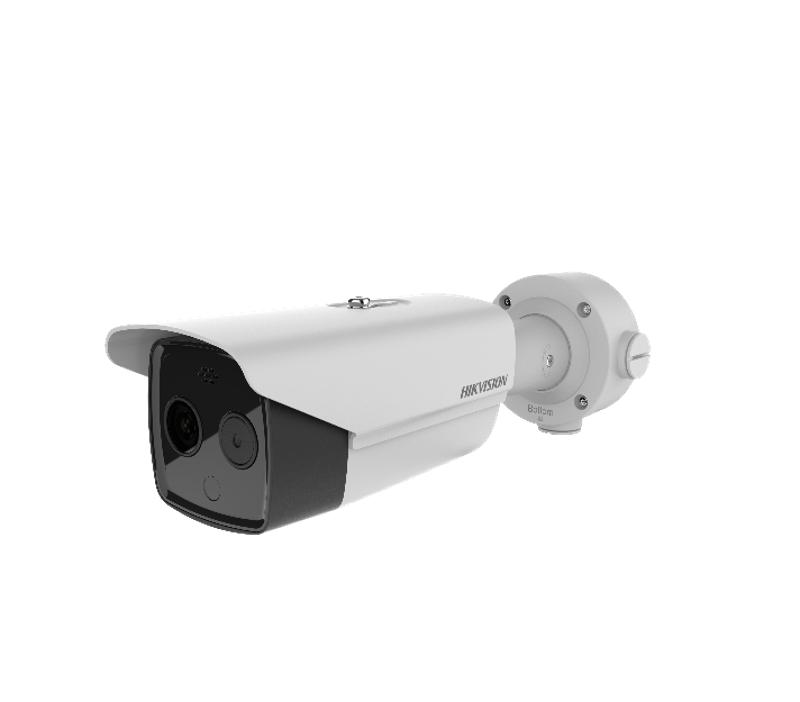

DS-2TB2617-3/QA

Temperature Screening Thermographic Camera

High sensitivity thermal module with 160 x 120 resolution
NETD is less than 40 mk (@25° C, F#=1.1)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Support temperature screening
Support audio alarm

View Less

Data Sheet

Available models:

DS-2TB2617-3/QA

Specification
Resources
Accessories

Data Sheet

Thermal Module
Image SensorVOx Uncooled Focal Plane Arrays
Resolution160 × 120
Pixel Interval17 μm
Response Waveband8 μm to 14 μm
NETDLess than 40 mK (@ 25 °C,F#=1.1)
Focal Length3.1 mm
IFOV5.48 mrad
ApertureF1.1
Field of View50° × 37.2° (H × V)
Min. Focusing Distance0.2 m

Optical Module
Image Sensor1/2.7" Progressive Scan CMOS
Resolution2688 × 1520, 4 MP
Min. IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
Field of View84° × 44.8° (H × V)
Focal Length4 mm
Shutter Speed1 s to 1/100,000 s
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Day & Night ModeIR cut filter with auto switch
WDR120 dB

Image Effect
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel

Illuminator
IR DistanceUp to 40 m
IR Intensity and AngleAutomatically adjusted

Smart Function
Temperature Range30 °C to 45 °C (86 °F to 113 °F)
Temperature Accuracy± 0.5 °C

Video and Audio
Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical: 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub StreamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
APIOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Simultaneous Live ViewUp to 20 channels

Interface
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
Alarm Input2-ch inputs (0 to 5 VDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
On-board StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 GB), supports manual/alarm recording

General
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
Power ConsumptionPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W 12 VDC ± 20%: 0.5 A, max. 6 W
Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
Weight1.76 kg (3.88 lb)
