*Images are for illustrative purposes. Actual product appearance and specifications may vary.

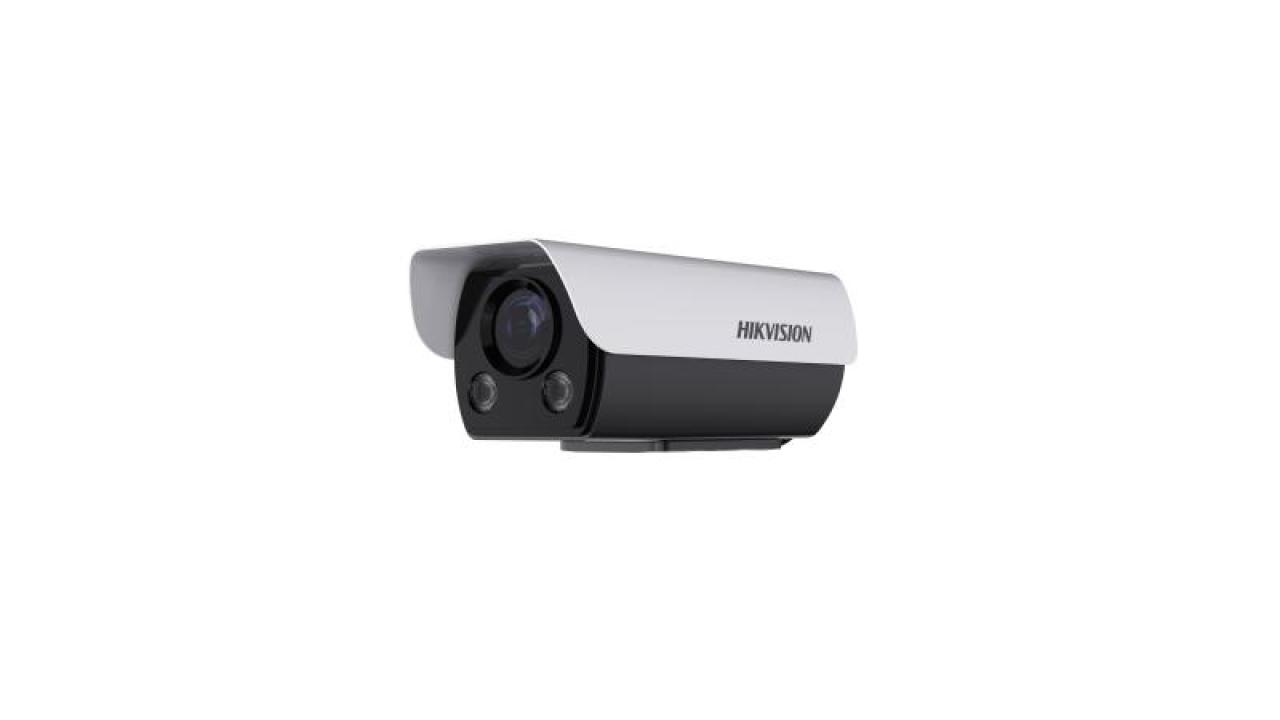

2MP Access ANPR Camera

Name: 2MP Access ANPR Camera
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

Multi-frame ANPR & deep-learning algorithm
1/3" Progressive Scan CMOS
Up to 1920 × 1200 resolution with real-time video
3.1 to 6mm motorized vari-focal lens
Support vehicle type, vehicle color and vehicle brand recognition
Support loop triggering, radar triggering, video triggering
Support relay output to control barrier gates
Up to 100,000 allowlists and blocklists

View Less

DS-TCG204-E1

Specification
Resources
Accessories

Lens
Lens Type3.1 to 6 mm
Aperture3.1 to 6 mm：F1.9
Focal Length & FoV 3.1 to 6 mm, horizontal FoV: 105.5° to 51.4°, vertical FoV: 55.9° to 28.9°, diagonal FoV: 126.9° to 59.2°
FocusAuto,Vari-focal lens, motor-driven lens

Supplement Light
Supplement Light TypeWarm White Light
Supplement Light RangeVideo: 3.1 mm to 6 mm: 10 m Vehicle License Plate: 3.1 mm to 6 mm: 5 m
IR WavelengthWarm White Light 3000 K

Capture Mode
Trigger TypeVideo Detection, I/O Coil, Radar Mixed Traffic
Picture TypeScene Picture, Scene Picture + Close-up Picture
Scene ModeEntrance & Exit Toll Gate, Underground Parking Entrance & Exit
Capture TypeStrobe Light Mode

Capture Parameters
Image FormatJPEG
Capture Resolution1920 × 1200
License Plate RecognitionForward, Backward, Bidirection
Fake Plate FilterYes
LED ControlSupports automatic light control/time control of LEDs
Smart RecognitionANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition
Capture Picture OverlayLocation, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type

WDR140 dB
Main Stream50 Hz: 25 fps (1920*1200P、1920*1080P、1280*720P、704*576、352*288)
Sub-Stream50 Hz: 25 fps (1920*1080P、1280*720P、704*576、352*288)
Image SettingsSaturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable.
Image Parameters SwitchYes
WDR SwitchOn, Time, Brightness
Frame Rate25 fps (P)

Entrance and Exit
Barrier Gate Control ModeBy Camera/Platform/Mixed
Keep Boom Pole Open for Following VehicleEnable/Disable
Lock Barrier Gate for Large-Sized VehicleYes
Relay Output2-ch relay output, supporting opening and closing of barrier gates
Barrier Gate StatusNone, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place
Allowlist and BlocklistUp to 100,000 allowlist and blocklist totally Note: Only when the TF card is available, can the function take effect.

Video
ROI8 regions respectively for main stream and sub-stream, 6 levels for each region.
Video CompressionMain stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG,
H.264 TypeLow profile Medium profile High Profile
Video Bit Rate32 Kbps to 16 Mbps
Bit Rate TypeConstant, Variable
Scalable Video Coding (SVC)MJPEG , H.265 and H.264 encoding

Network
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform
ClientHik-Connect, Hik-Central,SDKdemo,PMS
Web BrowserPlug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Camera
Sensor Type1/3" Progressive Scan CMOS
Max. Resolution1920 × 1200
Min. IlluminationColor: 0.04Lux@(F2.0, AGC ON) B/W: 0.02Lux@(F2.0, AGC ON)
Shutter1/30 s to 1/100,000 s
Day/Night SwitchSupported
IR Cut FilterIR cut filter Blue glass module to reduce ghost phenomenon

Interface
Audio1 input (line in), 1 output (line out)
Alarm Input2-ch triggered inputs
Alarm Output1-ch Relayout
RS-4851-ch RS-485 serial port
Network Interface1 RJ45 10M/100M self-adaptive Ethernet port
Memory Card Slot1 TF card slot

Smart Function
LPR AccuracyCapture rate > 98% Vehicle moving direction recognition accuracy > 98.5% LPR accuracy > 98% Mistaken capture rate < 2% European and Russian-Speaking Regions: LPR accuracy > 98% Country/Region recognition accuracy > 95%
Vehicle Type RecognitionCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
Vehicle ColorRed, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black
Vehicle Brand84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
ANPR Supported Country/RegionAsia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka

General
Working Temperature & Humidity-20°C to 65°C (-4°F to 149°F) 90% or less (non-condensing)
Power Supply12V| 0.48A,4.8W
Working Consumption4.8W Max
Dimensions415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch)
3.25 kg (7.17 lb.)
Weight (with Package)4.3 kg (9.48 lb.)
Dimensions (with Package)480 × 435 × 205 mm (18.90× 17.13 × 8.07 inch)
Storage ConditionsTemperature: -20 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing)
Startup and Operating ConditionsTemperature: -30 °C to 70 °C (-22 °F to 158 °F) Humidity: 95% (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Lens

Lens Type

3.1 to 6 mm

Aperture

3.1 to 6 mm：F1.9

Focal Length & FoV

3.1 to 6 mm, horizontal FoV: 105.5° to 51.4°, vertical FoV: 55.9° to 28.9°, diagonal FoV: 126.9° to 59.2°

Focus

Auto,Vari-focal lens, motor-driven lens

Supplement Light

Supplement Light Type

Warm White Light

Supplement Light Range

Video: 3.1 mm to 6 mm: 10 m Vehicle License Plate: 3.1 mm to 6 mm: 5 m

IR Wavelength

Warm White Light 3000 K

Capture Mode

Trigger Type

Video Detection, I/O Coil, Radar Mixed Traffic

Picture Type

Scene Picture, Scene Picture + Close-up Picture

Scene Mode

Entrance & Exit Toll Gate, Underground Parking Entrance & Exit

Capture Type

Strobe Light Mode

Capture Parameters

Image Format

JPEG

Capture Resolution

1920 × 1200

License Plate Recognition

Forward, Backward, Bidirection

Fake Plate Filter

Yes

LED Control

Supports automatic light control/time control of LEDs

Smart Recognition

ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition

Capture Picture Overlay

Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type


WDR

140 dB

Main Stream

50 Hz: 25 fps (1920*1200P、1920*1080P、1280*720P、704*576、352*288)

Sub-Stream

50 Hz: 25 fps (1920*1080P、1280*720P、704*576、352*288)

Image Settings

Saturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable.

Image Parameters Switch

Yes

WDR Switch

On, Time, Brightness

Frame Rate

25 fps (P)

Entrance and Exit

Barrier Gate Control Mode

By Camera/Platform/Mixed

Keep Boom Pole Open for Following Vehicle

Enable/Disable

Lock Barrier Gate for Large-Sized Vehicle

Yes

Relay Output

2-ch relay output, supporting opening and closing of barrier gates

Barrier Gate Status

None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place

Allowlist and Blocklist

Up to 100,000 allowlist and blocklist totally Note: Only when the TF card is available, can the function take effect.

Video

ROI

8 regions respectively for main stream and sub-stream, 6 levels for each region.

Video Compression

Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG,

H.264 Type

Low profile Medium profile High Profile

Video Bit Rate

32 Kbps to 16 Mbps

Bit Rate Type

Constant, Variable

Scalable Video Coding (SVC)

MJPEG , H.265 and H.264 encoding

Network

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform

Client

Hik-Connect, Hik-Central,SDKdemo,PMS

Web Browser

Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+

Security

Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Camera

Sensor Type

1/3" Progressive Scan CMOS

Max. Resolution

1920 × 1200

Min. Illumination

Color: 0.04Lux@(F2.0, AGC ON) B/W: 0.02Lux@(F2.0, AGC ON)

Shutter

1/30 s to 1/100,000 s

Day/Night Switch

Supported

IR Cut Filter

IR cut filter Blue glass module to reduce ghost phenomenon

Interface

Audio

1 input (line in), 1 output (line out)

Alarm Input

2-ch triggered inputs

Alarm Output

1-ch Relayout

RS-485

1-ch RS-485 serial port

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Memory Card Slot

1 TF card slot

Smart Function

LPR Accuracy

Capture rate > 98% Vehicle moving direction recognition accuracy > 98.5% LPR accuracy > 98% Mistaken capture rate < 2% European and Russian-Speaking Regions: LPR accuracy > 98% Country/Region recognition accuracy > 95%

Vehicle Type Recognition

Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle

Vehicle Color

Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black

Vehicle Brand

84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO

ANPR Supported Country/Region

Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka

General

Working Temperature & Humidity

-20°C to 65°C (-4°F to 149°F) 90% or less (non-condensing)

Power Supply

12V| 0.48A,4.8W

Working Consumption

4.8W Max

Dimensions

415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch)

3.25 kg (7.17 lb.)

Weight (with Package)

4.3 kg (9.48 lb.)

Dimensions (with Package)

480 × 435 × 205 mm (18.90× 17.13 × 8.07 inch)

Storage Conditions

Temperature: -20 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing)

Startup and Operating Conditions

Temperature: -30 °C to 70 °C (-22 °F to 158 °F) Humidity: 95% (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
