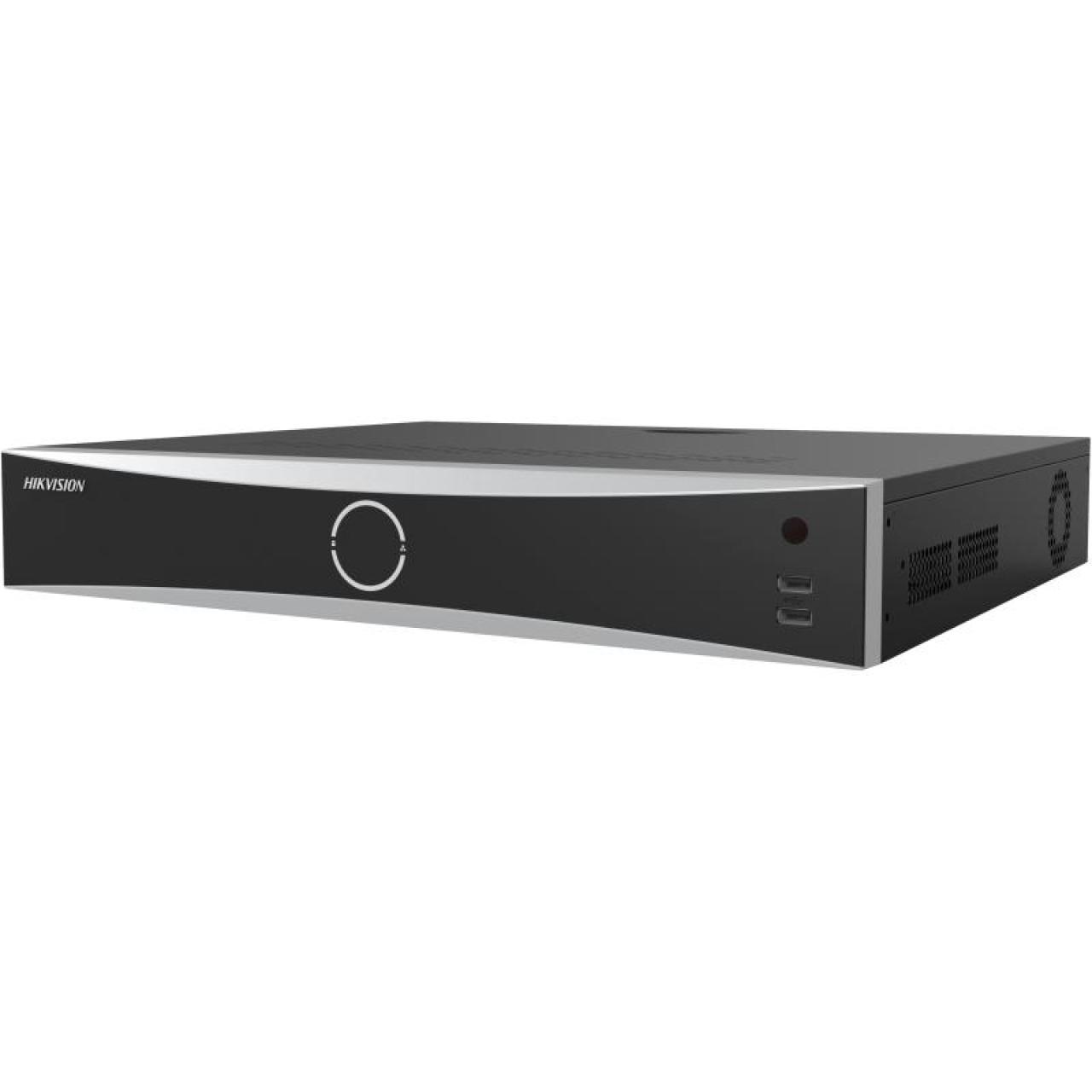

DS-7716NXI-I4/S E PL

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 4-ch facial recognition for video stream
Up to 8-ch facial recognition for face picture
Up to 16-ch IP camera inputs
Up to 32-ch 1080p decoding capability
Up to 8-ch IP speakers can be connected

View Less

Data Sheet

Available models:

DS-7716NXI-I4/S(E)

DS-7716NXI-I4/S E PL

Specification
Resources
Accessories

Data Sheet

Intelligent Analytics
AI by NVRFacial recognition, perimeter protection, motion detection 2.0, AcuSearch,Facial recognition, perimeter protection, motion detection 2.0
AI by CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
Engine1, engine mode is adjustable

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face AttributesWearing glasses, wearing a mask, facial expression, body temperature
Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm
Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)

AcuSearch
By CameraAll channels ,up to 172,800 targets/day The camera should enable AcuSearch function

Motion Detection 2.0
By NVR16-ch
By CameraAll channels ,up to 172,800 targets/day The camera should enable AcuSearch function

Perimeter Protection
By NVR4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total
By CameraAll channels

ANPR
By CameraAll channels
Vehicle AttributesPlate number, license plate color, license plate type
Plate AttributesVehicle brand, vehicle color, vehicle type

Video and Audio
IP Video Input16-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Incoming Bandwidth160 Mbps
Outgoing Bandwidth256 Mbps
HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding
Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Synchronous Playback16-ch
Live View Window Division1/2/4/6/8/9/16
Aux Port Window Division1/2/4/6/8/9/16
Decoding CapabilityDisable AI by NVR: 2-ch@32 MP (30 fps)/4-ch@16 MP (30 fps)/16-ch@4MP (30 fps) Enable AI by NVR: 8-ch@5 MP (30 fps)/16-ch@3 MP (25 fps)
Dual-Stream RecordingSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2

Network
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Camera Access ProtocolONVIF(Version 2.5), RTSP

Auxiliary Interface
Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
SATA4 SATA interfaces supporting hot-plug
CapacityUp to 16 TB capacity for each disk
eSATA1 eSATA interface
Alarm In/Out16/4
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12VControllable 12 VDC, 0.5 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output

General
GUI LanguagePolish
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 30 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Chassis19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
Weight≤ 5.6 kg (without HDD, 12.3 lb.)

Certification
Obtained CertificationCE, CB, REACH, WEEE, UKCA, LOA
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, motion detection 2.0, AcuSearch,Facial recognition, perimeter protection, motion detection 2.0

AI by Camera

Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA

Engine

1, engine mode is adjustable

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Attributes

Wearing glasses, wearing a mask, facial expression, body temperature

Face Picture Library

Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)

Face Picture Comparison (Captured from Camera)

4-ch face picture comparison alarm

Facial Detection and Analytics Performance

1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)

AcuSearch

By Camera

All channels ,up to 172,800 targets/day The camera should enable AcuSearch function

Motion Detection 2.0

By NVR

16-ch

By Camera

All channels ,up to 172,800 targets/day The camera should enable AcuSearch function

Perimeter Protection

By NVR

4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total

By Camera

All channels

ANPR

By Camera

All channels

Vehicle Attributes

Plate number, license plate color, license plate type

Plate Attributes

Vehicle brand, vehicle color, vehicle type

Video and Audio

IP Video Input

16-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

Incoming Bandwidth

160 Mbps

Outgoing Bandwidth

256 Mbps

HDMI 1 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output

HDMI 2 Output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode

HDMI1/VGA simultaneous output, HDMI2/VGA independent output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

Decoding Format

H.265+/H.265/H.264+/H.264/MPEG4

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

Synchronous Playback

16-ch

Live View Window Division

1/2/4/6/8/9/16

Aux Port Window Division

1/2/4/6/8/9/16

Decoding Capability

Disable AI by NVR: 2-ch@32 MP (30 fps)/4-ch@16 MP (30 fps)/16-ch@4MP (30 fps) Enable AI by NVR: 8-ch@5 MP (30 fps)/16-ch@3 MP (25 fps)

Dual-Stream Recording

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726/MP2L2

Network

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Camera Access Protocol

ONVIF(Version 2.5), RTSP

Auxiliary Interface

Serial Interface

RS-485 (half-duplex), RS-232, Keyboard

SATA

4 SATA interfaces supporting hot-plug

Capacity

Up to 16 TB capacity for each disk

eSATA

1 eSATA interface

Alarm In/Out

16/4

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Ctrl 12V

Controllable 12 VDC, 0.5 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.

DC 12V

12 VDC, 1 A power output

General

GUI Language

Polish

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

≤ 30 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Chassis

19-inch rack-mounted 1.5U chassis

Dimension (W × D × H)

445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")

Weight

≤ 5.6 kg (without HDD, 12.3 lb.)

Certification

Obtained Certification

CE, CB, REACH, WEEE, UKCA, LOA

EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
