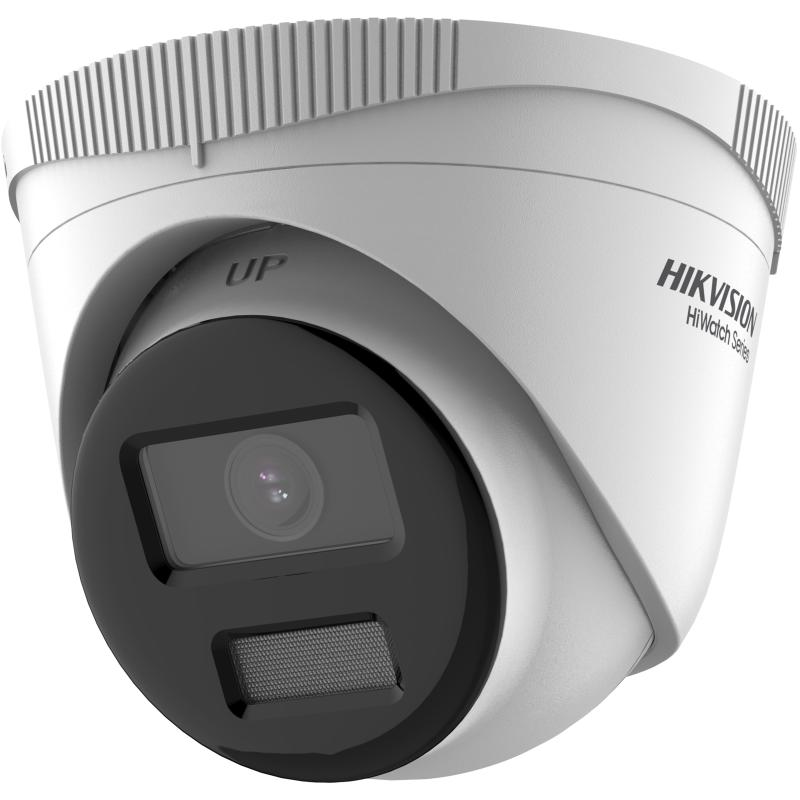

4 MP ColorVu MD 2.0 Fixed Turret Network Camera

  • High quality imaging with 4 MP resolution
  • 24/7 colorful imaging
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP67)
  • Efficient H.265+ compression technology

View Less
View more
Data Sheet
Sales Inquiry

Available models:

HWI-T249HA(2.8mm)(HiWatchSTD)
HWI-T249HA
Data Sheet

Specification

  • Camera
  • Image Sensor 1/3" Progressive Scan CMOS
  • Max. Resolution 2560 × 1440
  • Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night 24/7 color imaging
  • Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Lens
  • Lens Type Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113° 4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°
  • Lens Mount M12
  • Iris Type Fixed
  • Aperture F1.0
  • Depth of Field 2.8 mm: 2 m to ∞ 4 mm: 2.7 m to ∞
  • DORI
  • DORI 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
  • Illuminator
  • Supplement Light Type White Light
  • Supplement Light Range Up to 30 m
  • Smart Supplement Light Yes
  • Video
  • Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile,Main Profile,High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR,VBR
  • Region of Interest (ROI) 1 fixed region(s) for main stream
  • Network
  • Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • Simultaneous Live View Up to 6 channels
  • API Open Network Video Interface(Profile S,Profile T), ISAPI，SDK
  • User/Host Up to 32 users 3 user levels: administrator, operator, and user
  • Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Client iVMS-4200,Hik-Connect
  • Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Wide Dynamic Range (WDR) 120 dB
  • SNR ≥ 52 dB
  • Day/Night Switch Day,Night,Auto,Schedule
  • Image Enhancement BLC,HLC,3D DNR
  • Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Privacy Mask 4 programmable polygon privacy masks
  • Interface
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Linkage Upload to FTP, send email, notify surveillance center, trigger capture
  • General
  • Power 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Material Metal & Plastic
  • Dimension Ø112 mm × 88.4 mm (Ø4.4" × 3.5")
  • Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Weight Approx. 370 g (0.8 lb.)
  • With Package Weight Approx. 600 g (1.3 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language English, Ukrainian
  • General Function Heartbeat,anti-banding,mirror,password protection,password reset via email
  • Approval
  • EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
  • Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
24/7 color imaging
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113° 4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
Depth of Field
2.8 mm: 2 m to ∞ 4 mm: 2.7 m to ∞
DORI
DORI
2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region(s) for main stream
Network
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface(Profile S,Profile T), ISAPI，SDK
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Client
iVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP, send email, notify surveillance center, trigger capture
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material
Metal & Plastic
Dimension
Ø112 mm × 88.4 mm (Ø4.4" × 3.5")
Package Dimension
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight
Approx. 370 g (0.8 lb.)
With Package Weight
Approx. 600 g (1.3 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat,anti-banding,mirror,password protection,password reset via email
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
Safety
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
