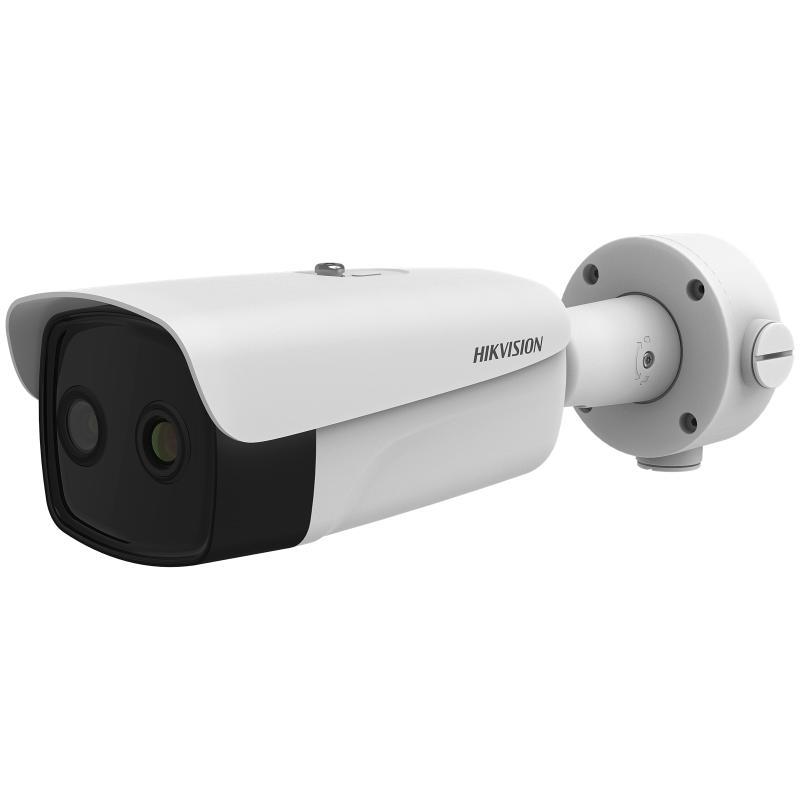

Temperature Screening Thermographic Camera

High sensitivity thermal module with 384 x 288 resolution
NETD is less than 40 mk (@25° C, F#=1.0)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Reliable fever detection alarm
High quality optical module with 4 MP resolution
Bi-spectrum image fusion, picture-in-picture preview

View Less

Veja mais

Data Sheet

Modelos disponíveis:

DS-2TD2636B-10/P(B)

DS-2TD2636B-10/P ^Discontinued

Especificação
Resources
Acessórios

Data Sheet

Thermal Module
Sensor de imagemVOx Uncooled Focal Plane Arrays
Resolução384 × 288
Intervalo de pixel17 μm
Banda de onda de resposta8 μm to 14 μm
NETDLess than 40 mK (@ 25 °C,F#=1.0)
Distância focal9.7 mm
Modo de focoAthermalized
IFOV1.75 mrad
AberturaF1.0
Field of View37.5° × 28.5° (H × V)
Distância mín. de foco1.2 m

Optical Module
Sensor de imagem1/2.7" Progressive Scan CMOS
Resolução2688 × 1520, 4 MP
Iluminação mínimaColor: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Field of View84° × 44.8° (H × V)
Distância focal4 mm
Modo de focoFixed
Velocidade do obturador1s to 1/100,000s
Balanço de brancoAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Modo dia/noiteIR cut filter with auto switch
WDR120 dB

Image Effect
Fusão de imagem biespectralDisplay the details of optical channel on thermal channel
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel

luminador
Distância de IRUp to 50 m
Intensidade e ângulo do IRAutomatically adjusted

Funções inteligentes
Medição de temperaturaSupport 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature Range30 °C to 45 °C (86 °F to 113 °F)
Precisão de temperatura± 0.5 °C

Video and Audio
ConvencionalThermal: 50 fps (1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);Optical: 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Transmissão secundáriaThermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Compressão de vídeoH.264 (Baseline/Main/High Profile) /MJPEG/H.265
Compressão de áudioG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
APIOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
SegurançaUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Visualização ao vivo simultâneaUp to 20 channels

Interface
ClientiVMS-4200, Hik-Connect
Navegador da webPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
Entrada de alarme2-ch inputs (0-5vDC)
Saída de alarme2-ch relay outputs, alarm response actions configurable
Ações de alarmeSD recording/Relay output/Smart capture/FTP upload/Email linkage
Entrada de áudio1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Saída de áudioLinear Level; Impedance: 600 Ω
Interface de comunicação1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
Armazenamento integradoBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording

Geral
Idioma do web client32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
LimpadorNo
Nível de usuário/hostUp to 32 users, 3 levels: Administrator, Operator, User
Alimentação24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
Consumo de energia18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
Temperatura/umidade de funcionamentoFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
Nível de proteçãoIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensões376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
PesoApprox. 1.82 kg (4.01 lb)

Thermal Module

Sensor de imagem

VOx Uncooled Focal Plane Arrays

Resolução

384 × 288

Intervalo de pixel

17 μm

Banda de onda de resposta

8 μm to 14 μm

NETD

Less than 40 mK (@ 25 °C,F#=1.0)

Distância focal

9.7 mm

Modo de foco

Athermalized

IFOV

1.75 mrad

Abertura

F1.0

Field of View

37.5° × 28.5° (H × V)

Distância mín. de foco

1.2 m

Optical Module

Sensor de imagem

1/2.7" Progressive Scan CMOS

Resolução

2688 × 1520, 4 MP

Iluminação mínima

Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)

Field of View

84° × 44.8° (H × V)

Distância focal

4 mm

Modo de foco

Fixed

Velocidade do obturador

1s to 1/100,000s

Balanço de branco

Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp

Modo dia/noite

IR cut filter with auto switch

WDR

120 dB

Image Effect

Fusão de imagem biespectral

Display the details of optical channel on thermal channel

Picture in Picture

Display partial image of thermal channel on the full screen of optical channel

luminador

Distância de IR

Up to 50 m

Intensidade e ângulo do IR

Automatically adjusted

Funções inteligentes

Medição de temperatura

Support 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).

Temperature Range

30 °C to 45 °C (86 °F to 113 °F)

Precisão de temperatura

± 0.5 °C

Video and Audio

Convencional

Thermal: 50 fps (1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);Optical: 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Transmissão secundária

Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)

Compressão de vídeo

H.264 (Baseline/Main/High Profile) /MJPEG/H.265

Compressão de áudio

G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

API

Open-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface

Segurança

User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Visualização ao vivo simultânea

Up to 20 channels

Interface

Client

iVMS-4200, Hik-Connect

Navegador da web

Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51

Entrada de alarme

2-ch inputs (0-5vDC)

Saída de alarme

2-ch relay outputs, alarm response actions configurable

Ações de alarme

SD recording/Relay output/Smart capture/FTP upload/Email linkage

Entrada de áudio

1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Saída de áudio

Linear Level; Impedance: 600 Ω

Interface de comunicação

1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface

Armazenamento integrado

Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording

Geral

Idioma do web client

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Limpador

Nível de usuário/host

Up to 32 users, 3 levels: Administrator, Operator, User

Alimentação

24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A

Consumo de energia

18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W

Temperatura/umidade de funcionamento

From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less

Nível de proteção

IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensões

376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")

Peso

Approx. 1.82 kg (4.01 lb)

Thermal Module

Sensor de imagemVOx Uncooled Focal Plane Arrays
Resolução384 × 288
Intervalo de pixel17 μm
Banda de onda de resposta8 μm to 14 μm
NETDLess than 40 mK (@ 25 °C,F#=1.0)
Distância focal9.7 mm
Modo de focoAthermalized
IFOV1.75 mrad
AberturaF1.0
Field of View37.5° × 28.5° (H × V)
Distância mín. de foco1.2 m

Optical Module

Sensor de imagem1/2.7" Progressive Scan CMOS
Resolução2688 × 1520, 4 MP
Iluminação mínimaColor: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Field of View84° × 44.8° (H × V)
Distância focal4 mm
Modo de focoFixed
Velocidade do obturador1s to 1/100,000s
Balanço de brancoAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Modo dia/noiteIR cut filter with auto switch
WDR120 dB

Image Effect

Fusão de imagem biespectralDisplay the details of optical channel on thermal channel
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel

luminador

Distância de IRUp to 50 m
Intensidade e ângulo do IRAutomatically adjusted

Funções inteligentes

Medição de temperaturaSupport 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature Range30 °C to 45 °C (86 °F to 113 °F)
Precisão de temperatura± 0.5 °C

Video and Audio

ConvencionalThermal: 50 fps (1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);Optical: 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Transmissão secundáriaThermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Compressão de vídeoH.264 (Baseline/Main/High Profile) /MJPEG/H.265
Compressão de áudioG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
APIOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
SegurançaUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Visualização ao vivo simultâneaUp to 20 channels

Interface

ClientiVMS-4200, Hik-Connect
Navegador da webPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
Entrada de alarme2-ch inputs (0-5vDC)
Saída de alarme2-ch relay outputs, alarm response actions configurable
Ações de alarmeSD recording/Relay output/Smart capture/FTP upload/Email linkage
Entrada de áudio1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Saída de áudioLinear Level; Impedance: 600 Ω
Interface de comunicação1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
Armazenamento integradoBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording

Geral

Idioma do web client32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
LimpadorNo
Nível de usuário/hostUp to 32 users, 3 levels: Administrator, Operator, User
Alimentação24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
Consumo de energia18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
Temperatura/umidade de funcionamentoFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
Nível de proteçãoIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensões376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
PesoApprox. 1.82 kg (4.01 lb)
