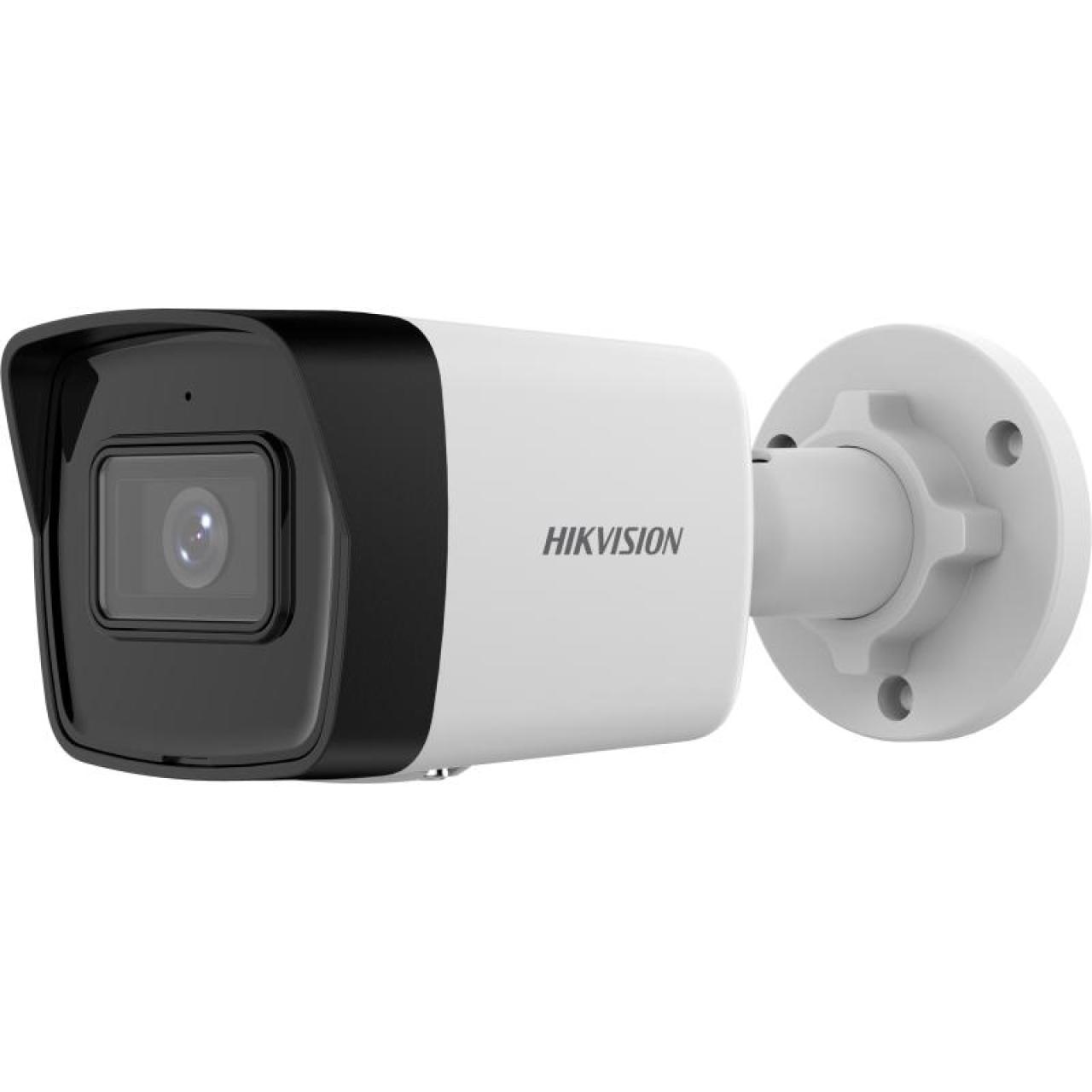

2MP Fixed Bullet Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to WDR technology
3D DNR technology delivers clean and sharp images
Water and dust resistant (IP67)

View Less

Data Sheet

Available models:

DS-2CD3021G0-I(2.8mm)(C)

DS-2CD3021G0-I(4mm)(C)

DS-2CD3021G0-I(6mm)(C)

DS-2CD3021G0-IUF(2.8mm)(C)

DS-2CD3021G0-IUF(4mm)(C)

DS-2CD3021G0-IUF(6mm)(C)

DS-2CD3021G0-I(UF)

Especificação
Resources
Acessórios

Data Sheet

Câmera
Sensor de imagem1/2.7" Progressive Scan CMOS
Resolução máx.1920 × 1080
Iluminação mínimaColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Tempo do obturador1/3 s to 1/100, 000 s
Ajuste de ÂnguloPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lentes
Focal Length & FOV2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 133° 4 mm, horizontal FOV 91°, vertical FOV 46°, diagonal FOV 109° 6 mm, horizontal FOV 56°, vertical FOV 29°, diagonal FOV 65°
Montagem da lenteM12
AberturaF1.6

DORI
DORI2.8 mm: D: 43 m, O: 17 m, R: 9 m, I: 5 m 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 6 m 6 mm: D: 86 m, O: 34 m, R: 17 m, I: 9 m

luminador
Faixa de luz suplementarUp to 40 m
Luz complementar inteligenteYes
IR Wavelength850 nm

Vídeo
Convencional50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Subfluxo50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Transmissão terciária50 Hz: 1 fps (640 × 360) 60 Hz: 1 fps (640 × 360)
Compressão de vídeo Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Taxa de bits de vídeo32 Kbps to 8 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Região de interesse (ROI)1 fixed region for main stream and sub-stream

Áudio
Compressão de áudio -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Taxa de bits de áudio-UF: 64 Kbps(G.711 ulaw/G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps(AAC)
Taxa de amostragem de áudio-UF: 8 kHz/16 kHz
Filtragem de ruído ambienteYes

Rede
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Visualização ao vivo simultâneaUp to 6 channels
APIOpen Network Video Interface, ISAPI
Usuário/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Navegador da webPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagem
Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Switch Dia/NoiteDay, Night, Auto, Schedule
Ampla Faixa Dinâmica (WDR)120 dB
Aprimoramento da imagemBLC, HLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Microfone integrado-UF: Yes
Armazenamento a bordo-UF: Built-in memory card slot, support microSD card, up to 256 GB
Reset Key-UF: Yes

Evento
Eventos básicos Motion detection, video tampering alarm, exception
Evento inteligenteLine crossing detection, intrusion detection
Linkage-I: Upload to FTP, notify surveillance center, send email, trigger capture -IUF: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture

Geral
Alimentação12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MaterialMetal & Plastic
Dimensões170.8 mm × 66 mm × 69.1 mm (6.72" × 2.59" × 2.7")
Dimensões do pacote216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
PesoApprox. 270 g (0.6 lb.)
Com peso do pacoteApprox. 481 g (1.1 lb.)
Condições de armazenamento-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Condições de inicialização e operação-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
IdiomaEnglish, Ukrainian
Função geralAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Aprovação
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); KC (KN 32: 2015, KN 35: 2015)
SegurançaUL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProteçãoIP67 (IEC 60529-2013)

Câmera

Sensor de imagem

1/2.7" Progressive Scan CMOS

Resolução máx.

1920 × 1080

Iluminação mínima

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Tempo do obturador

1/3 s to 1/100, 000 s

Ajuste de Ângulo

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lentes

Focal Length & FOV

2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 133° 4 mm, horizontal FOV 91°, vertical FOV 46°, diagonal FOV 109° 6 mm, horizontal FOV 56°, vertical FOV 29°, diagonal FOV 65°

Montagem da lente

M12

Abertura

F1.6

DORI

2.8 mm: D: 43 m, O: 17 m, R: 9 m, I: 5 m 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 6 m 6 mm: D: 86 m, O: 34 m, R: 17 m, I: 9 m

luminador

Faixa de luz suplementar

Up to 40 m

Luz complementar inteligente

Yes

IR Wavelength

850 nm

Vídeo

Convencional

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Subfluxo

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Transmissão terciária

50 Hz: 1 fps (640 × 360) 60 Hz: 1 fps (640 × 360)

Compressão de vídeo

Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Taxa de bits de vídeo

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Região de interesse (ROI)

1 fixed region for main stream and sub-stream

Áudio

Compressão de áudio

-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Taxa de bits de áudio

-UF: 64 Kbps(G.711 ulaw/G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps(AAC)

Taxa de amostragem de áudio

-UF: 8 kHz/16 kHz

Filtragem de ruído ambiente

Yes

Rede

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Visualização ao vivo simultânea

Up to 6 channels

API

Open Network Video Interface, ISAPI

Usuário/Host

Up to 32 users. 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Navegador da web

Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagem

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Switch Dia/Noite

Day, Night, Auto, Schedule

Ampla Faixa Dinâmica (WDR)

120 dB

Aprimoramento da imagem

BLC, HLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Microfone integrado

-UF: Yes

Armazenamento a bordo

-UF: Built-in memory card slot, support microSD card, up to 256 GB

Reset Key

-UF: Yes

Evento

Eventos básicos

Motion detection, video tampering alarm, exception

Evento inteligente

Line crossing detection, intrusion detection

Linkage

-I: Upload to FTP, notify surveillance center, send email, trigger capture -IUF: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture

Geral

Alimentação

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material

Metal & Plastic

Dimensões

170.8 mm × 66 mm × 69.1 mm (6.72" × 2.59" × 2.7")

Dimensões do pacote

216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Peso

Approx. 270 g (0.6 lb.)

Com peso do pacote

Approx. 481 g (1.1 lb.)

Condições de armazenamento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Condições de inicialização e operação

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Idioma

English, Ukrainian

Função geral

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Aprovação

EMC

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); KC (KN 32: 2015, KN 35: 2015)

Segurança

UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)

Ambiente

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Proteção

IP67 (IEC 60529-2013)
