EOL

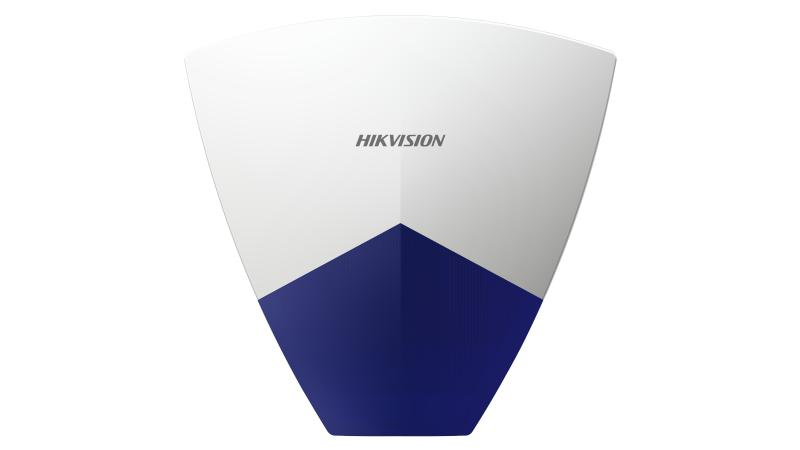

Wireless external siren

  • RF 433MHz, AES-128 encryption Two-way wireless communication
  • Reports exception automatically
  • Adjustable volume: low,medium, and high
  • Front and rear panel tamper-proof
  • Protection level: IP65
  • Outdoor installation
  • Flashing blue LED for alarm indication
  • 3 kinds of alarm sounds: fire alarm, intrusion alarm, and panic alarm
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PSG-WO-433
DS-PSG-WO-433
EOL
Data Sheet

Especificação

  • Hardware features
  • Tamper-ProofFront and rear
  • Electrical characteristics
  • Fonte de alimentação4 CR123A Batteries (default) or 12 VDC
  • Operation humidity10% to 90% (no condensing)
  • Operation temperature-25 °C to +60 °C (-13 °F to +140 °F)
  • Power consumptionStatic consumption: ＜ 20 uA
  • Battery life span5 years in stand-by status
  • Wireless transmission
  • RF speed10 kbps
  • RF power10 dBm
  • RF frequency433MHz
  • RF modulation2GFSK
  • RF distance800 m (open area)
  • Display
  • IndicadorBlue (on front panel), Green/Red (on PCB)
  • Geral
  • IP rateIP65
  • Installation methodWall mounting
  • Dimension(WxHxD)220.5 × 205.2 × 46 mm (8.68" × 8.08" × 1.81"）
  • Shell materialPC+ABS
  • ColoridoWhite and blue
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificação

Hardware features
Tamper-Proof
Front and rear
Electrical characteristics
Fonte de alimentação
4 CR123A Batteries (default) or 12 VDC
Operation humidity
10% to 90% (no condensing)
Operation temperature
-25 °C to +60 °C (-13 °F to +140 °F)
Power consumption
Static consumption: ＜ 20 uA
Battery life span
5 years in stand-by status
Wireless transmission
RF speed
10 kbps
RF power
10 dBm
RF frequency
433MHz
RF modulation
2GFSK
RF distance
800 m (open area)
Display
Indicador
Blue (on front panel), Green/Red (on PCB)
Geral
IP rate
IP65
Installation method
Wall mounting
Dimension(WxHxD)
220.5 × 205.2 × 46 mm (8.68" × 8.08" × 1.81"）
Shell material
PC+ABS
Colorido
White and blue
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Especificação
Hardware features
  • Tamper-ProofFront and rear
Electrical characteristics
  • Fonte de alimentação4 CR123A Batteries (default) or 12 VDC
  • Operation humidity10% to 90% (no condensing)
  • Operation temperature-25 °C to +60 °C (-13 °F to +140 °F)
  • Power consumptionStatic consumption: ＜ 20 uA
  • Battery life span5 years in stand-by status
Wireless transmission
  • RF speed10 kbps
  • RF power10 dBm
  • RF frequency433MHz
  • RF modulation2GFSK
  • RF distance800 m (open area)
Display
  • IndicadorBlue (on front panel), Green/Red (on PCB)
Geral
  • IP rateIP65
  • Installation methodWall mounting
  • Dimension(WxHxD)220.5 × 205.2 × 46 mm (8.68" × 8.08" × 1.81"）
  • Shell materialPC+ABS
  • ColoridoWhite and blue
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
