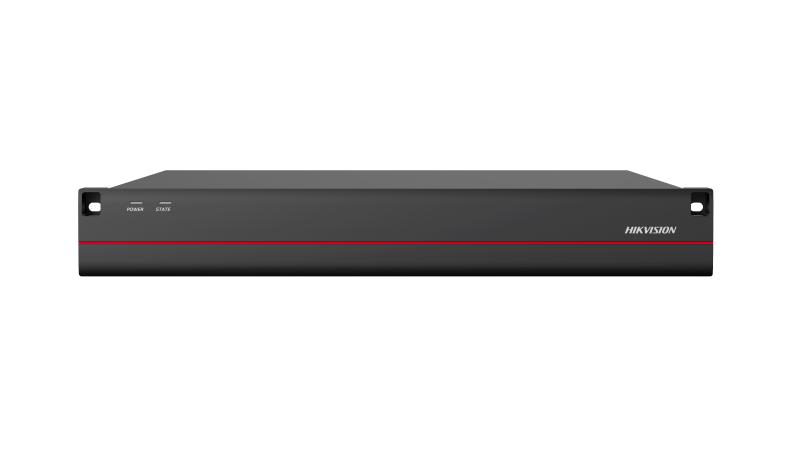

Distributed Vibration Fiber-Optic Sensing Server 5KM Dual-Ch

Supports dual channel DAS vibration fiber.
Supports long-distance detection with a single-channel detection distance up to 5 km.
Supports simultaneous positioning and monitoring of multiple vibration points with high positioning accuracy of ± 5 m, frequency response range from 10 Hz to 5 kHz, and alarm response time ≤ 2 s.
Effectively monitors intrusion in different scenarios including climbing, crossing, and excavation, reports information including the alarm type, time, latitude and longitude, and alarm level, and processes alarm events.
Supports setting parameters for the scenario, sensitivity, and more with the integrated Hikvision algorithms.
Strong environmental adaptability. With passive and flexible characteristics, the fiber can be installed in various complex terrains, not restricted by power supply conditions. It can withstand harsh environments such as moisture, temperature variations, and is resistant to ammonia, chlorine, salt spray, acid rain, and more.

View Less

Data Sheet

Available models:

DS-QFV0502

Specification
Resources
Accessories

Data Sheet

Basic Parameter
Fiber TypeSingle mode (ITU-T G.652D)
Channel2
Single-Channel Detection Range5km
Positioning Accuracy5km：±5m
Frequency Response10Hz to 5kHz
Unit≤ 600 per channel
Alarm Response Time≤ 2s

Function
Alarm TriggerIntrusion alarm, Fiber cut alarm, Tampering alarm
LED IndicatorPower indicator: Solid blue: Device is connected to the power supply and powers on Blue light is not on: Device powers off Status indicator: Solid blue: Device works normally without any error Red light flashes slowly: Wired network error Solid red: Device error (including all-in-one model error, FPGA exception, HDD error, tampering alarm)
BuzzerStay buzzing for tampering alarm
SwitchRocker switch for power

Communication
Communication MethodWired communication

Interface
Fiber Interface2 FC/APC fiber interfaces
Power Interface1 power input interface with 100~240V AC power input
Function Interface1 1000 M network interface, 1 RS-232 interface, 1 RS-485 interface, 2 USB 3.0 interfaces, 1 3.5 mm audio interface
Alarm Out1 relay output

General
MaterialMetal
Power100-240V～50/60Hz 1.4A
ColorBlack
Power Consumption< 60 W
Operating Humidity0% to 93% (± 2%)
Laser Classification Class 1
Dimension67 mm × 483 mm × 443.5 mm (2.63" × 19.02" × 17.46")
Package Dimension186 mm x 600 mm x 580 mm (7.32" × 23.62" × 22.83")
With Package WeightApprox. 10.5 kg (23.15 lb.)
WeightApprox. 8.2 kg (18.08 lb.)
Packing ListDevice × 1 Cable × 1 Fiber optic patch cord x 2 Flange dust cap x 2 Green terminal block connecter × 2
Operating Temperature-15 °C to 55 °C (5 °F to 131 °F)

Basic Parameter

Fiber Type

Single mode (ITU-T G.652D)

Channel

Single-Channel Detection Range

5km

Positioning Accuracy

5km：±5m

Frequency Response

10Hz to 5kHz

Unit

≤ 600 per channel

Alarm Response Time

≤ 2s

Function

Alarm Trigger

Intrusion alarm, Fiber cut alarm, Tampering alarm

LED Indicator

Power indicator: Solid blue: Device is connected to the power supply and powers on Blue light is not on: Device powers off Status indicator: Solid blue: Device works normally without any error Red light flashes slowly: Wired network error Solid red: Device error (including all-in-one model error, FPGA exception, HDD error, tampering alarm)

Buzzer

Stay buzzing for tampering alarm

Switch

Rocker switch for power

Communication

Communication Method

Wired communication

Interface

Fiber Interface

2 FC/APC fiber interfaces

Power Interface

1 power input interface with 100~240V AC power input

Function Interface

1 1000 M network interface, 1 RS-232 interface, 1 RS-485 interface, 2 USB 3.0 interfaces, 1 3.5 mm audio interface

Alarm Out

1 relay output

General

Material

Metal

Power

100-240V～50/60Hz 1.4A

Color

Black

Power Consumption

< 60 W

Operating Humidity

0% to 93% (± 2%)

Laser Classification

Class 1

Dimension

67 mm × 483 mm × 443.5 mm (2.63" × 19.02" × 17.46")

Package Dimension

186 mm x 600 mm x 580 mm (7.32" × 23.62" × 22.83")

With Package Weight

Approx. 10.5 kg (23.15 lb.)

Weight

Approx. 8.2 kg (18.08 lb.)

Packing List

Device × 1 Cable × 1 Fiber optic patch cord x 2 Flange dust cap x 2 Green terminal block connecter × 2

Operating Temperature

-15 °C to 55 °C (5 °F to 131 °F)

Basic Parameter

Fiber TypeSingle mode (ITU-T G.652D)
Channel2
Single-Channel Detection Range5km
Positioning Accuracy5km：±5m
Frequency Response10Hz to 5kHz
Unit≤ 600 per channel
Alarm Response Time≤ 2s

Function

Alarm TriggerIntrusion alarm, Fiber cut alarm, Tampering alarm
LED IndicatorPower indicator: Solid blue: Device is connected to the power supply and powers on Blue light is not on: Device powers off Status indicator: Solid blue: Device works normally without any error Red light flashes slowly: Wired network error Solid red: Device error (including all-in-one model error, FPGA exception, HDD error, tampering alarm)
BuzzerStay buzzing for tampering alarm
SwitchRocker switch for power

Communication

Communication MethodWired communication

Interface

Fiber Interface2 FC/APC fiber interfaces
Power Interface1 power input interface with 100~240V AC power input
Function Interface1 1000 M network interface, 1 RS-232 interface, 1 RS-485 interface, 2 USB 3.0 interfaces, 1 3.5 mm audio interface
Alarm Out1 relay output

General

MaterialMetal
Power100-240V～50/60Hz 1.4A
ColorBlack
Power Consumption< 60 W
Operating Humidity0% to 93% (± 2%)
Laser Classification Class 1
Dimension67 mm × 483 mm × 443.5 mm (2.63" × 19.02" × 17.46")
Package Dimension186 mm x 600 mm x 580 mm (7.32" × 23.62" × 22.83")
With Package WeightApprox. 10.5 kg (23.15 lb.)
WeightApprox. 8.2 kg (18.08 lb.)
Packing ListDevice × 1 Cable × 1 Fiber optic patch cord x 2 Flange dust cap x 2 Green terminal block connecter × 2
Operating Temperature-15 °C to 55 °C (5 °F to 131 °F)
